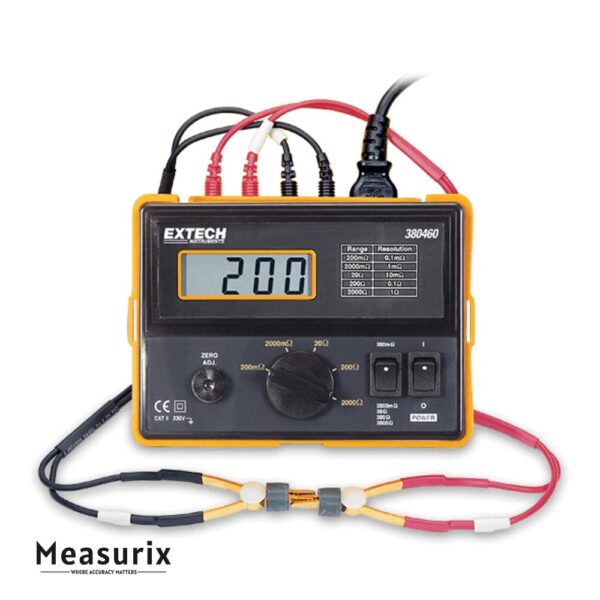

Extech 380460 Precision Milliohm Meter (110 VAC)

The Extech 380460 is built to help technicians, engineers, and lab personnel measure very low resistances with confidence. At its core is a true four-wire (Kelvin) measurement system, which removes the influence of lead and contact resistance to ensure that the displayed value reflects only the resistance of the component being tested. The meter offers five selectable measurement ranges: 200 mΩ, 2 Ω, 20 Ω, 200 Ω, and 2000 Ω, allowing use across a wide span of low-resistance tasks. In its lowest range, it resolves down to 0.1 mΩ.

Users can also adjust a manual zero offset (±100 counts) to compensate for residual path resistance. The large 0.7-inch (18 mm) LCD provides a clear 1999-count display. There is also an overrange indication to alert users when the value exceeds the selected range. Housed in a compact, durable field-service enclosure with a protective cover, the meter includes a set of 4-wire Kelvin clip leads for immediate use. The 380460 operates from 110 VAC (typically 60 Hz) power.

Features

• True 4-Wire Kelvin Measurement — Eliminates lead/contact resistance errors
• Five Measurement Ranges — 200 mΩ, 2 Ω, 20 Ω, 200 Ω, 2000 Ω
• Fine Resolution — Down to 0.1 mΩ in its lowest range
• Manual Zero Adjust — ±100 count offset adjustment for baseline correction
• Overrange Indication — Alerts when measurement exceeds the selected range
• Large LCD Display — 0.7″ (18 mm) screen with 1999-count resolution
• 110 VAC Powered — Designed for stable laboratory or workshop use
• Rugged Housing — Compact, protective case suitable for field service
• Included Kelvin Clip Leads — Comes with 4-wire test cables for ready usage
• Broad Operating Conditions — Works reliably in typical lab/field temperature and humidity ranges

Includes

• 4-wire cables
• Kelvin clip connectors
