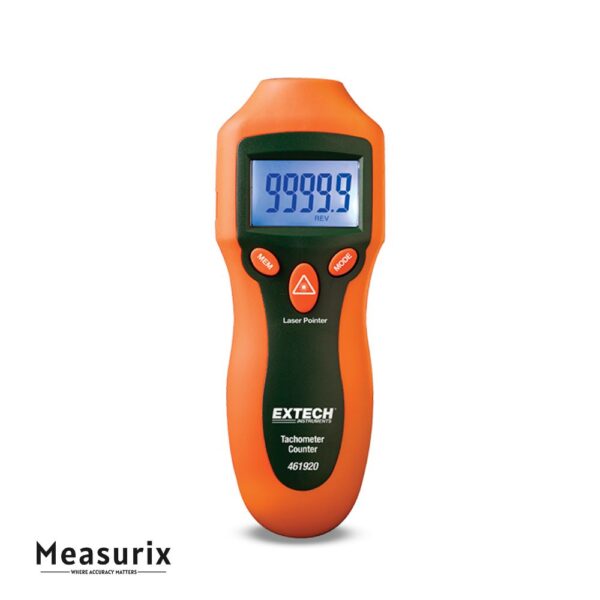

Extech 461920 Mini Laser Photo Tachometer Counter
The Extech 461920 is a handheld, non-contact laser tachometer and revolution counter designed to measure rotating objects safely and accurately—from low speeds to high RPMs—with a built-in laser pointer and memory functions.
Description
This instrument allows the user to perform non-contact RPM measurements by applying a small reflective tape to the rotating object and then pointing the integrated laser at that tape. The device is capable of measuring rotational speeds from as low as 2 RPM up to 99,999 RPM with a basic accuracy of ±0.05% of reading plus one digit. It also includes a counter mode to record up to 99,999 revolutions. The large five-digit LCD display provides clear readings, and there is a memory button to hold the last reading, and recall minimum and maximum values. The housing is rugged with double-moulded grip in a compact size (~160 × 60 × 42 mm) and lightweight (~151 g) form. Included in the box are a 9 V battery and strips of reflective tape, so the unit is ready for field use. The maximum target distance for measurement is about 500 mm (≈1.6 ft). Operated correctly, the tachometer is suitable for maintenance, production, automotive, fan/pump monitoring and other applications where rotational speed or counts are required.
Features
-
Non-contact measurement using built-in laser pointer; avoids the need to touch rotating parts.
-
Speed measurement range of 2 to 99,999 RPM, enabling use across very slow to very fast rotating equipment.
-
Revolution count mode from 1 to 99,999 revolutions, useful for tracking total turns rather than real-time speed.
-
High accuracy: ±0.05% of reading + 1 digit (in tachometer mode) for dependable results.
-
Resolution down to 0.1 RPM (in lower speed ranges) and 1 RPM in higher ranges; resolution of 1 revolution in count mode.
-
Memory function: ability to hold the last reading and recall minimum and maximum RPM values.
-
Large 5-digit LCD display, rugged double-moulded housing for improved grip in field environments.
-
Supplied accessories: 9 V battery and reflective tape included for immediate use.
-
Compact size (approx. 6.2 × 2.3 × 1.6 in or 160 × 60 × 42 mm) and light weight (~151 g / 5.3 oz) for handheld portability.
-
Maximum recommended measuring distance up to ~500 mm (≈1.6 ft) when using the laser/reflected tape method for reliable readings
Includes
- 9-Volt battery
- Reflective tape
- User manual
