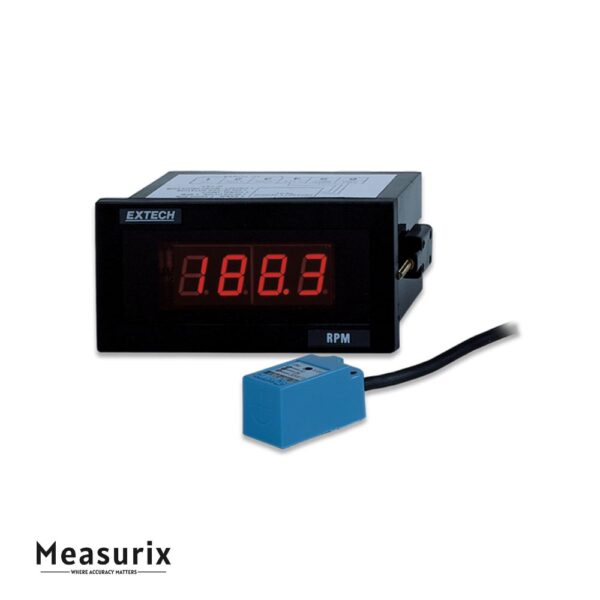

Extech 461950 Panel Mount Tachometer

This instrument is built for installation in panels—it fits the standard 1/8-DIN cut-out (approx. 92×45 mm) and is powered from AC mains (115/230 V, 50/60 Hz) so it can be mounted into control panels for live monitoring of machinery speeds. It supports optional sensor pickups: a proximity sensor for very high speeds (up to ~36,000 RPM/600 Hz) with a target distance of ~0.1″ (3 mm), and a photo-electric sensor for speeds up to ~6,000 RPM (100 Hz) with a target distance of ~0.4″ (10 mm). The tachometer itself reads from 5 to 99,990 RPM, offering a resolution of 0.1 RPM in the lower range (5-1000 RPM), 1 RPM (1000-9999 RPM), and 10 RPM (10,000-99,990 RPM) with a specified accuracy of ±0.05% + 1 digit. The display is a large 4-digit LED, updated once per second when the RPM is >60, giving clear real-time speed indication. The physical dimensions of the bezel are approximately 96 × 48 mm, making it suitable for standard panel mounting, and wiring terminals are provided for sensor input, supply voltage and grounding. The unit is suited for measuring motor shafts, fans, pumps, propellers, gear-systems—even single-hole gears—thanks to its ability to count single pulses per revolution instead of requiring special gear teeth setups. It is ideal for industrial control, machine-monitoring, and panel-mounted instrumentation tasks.

Features

• Speed measurement from 5 to 99,990 RPM, covering a very wide band of rotating speeds.

• High accuracy: ±0.05% of reading + 1 digit, ensuring precision in monitoring.

• Multi-resolution display: 0.1 RPM resolution for low speeds (5-1000 RPM), 1 RPM for mid-speeds (1000-9999 RPM), and 10 RPM for high speeds (10,000-99,990 RPM).

• Large, easy-to-read 4-digit LED display (display height 14.3 mm / 0.56″) with update rate once per second.

• Panel-mount form factor: 1/8-DIN size (panel cut-out approx. 92 × 45 mm) and AC mains powered (115/230 V, 50/60 Hz) for fixed installation.

• Flexible sensor options: can use a proximity sensor (for metal targets, close distance) or a photo-electric sensor (for reflective targets, larger distance) depending on application.

• Unique design allows measurement of a one-hole gear or disk (i.e., one pulse per revolution) without requiring special toothed wheels.

• Robust for industrial use: encapsulated sensors with ~6 ft (1.8 m) cable included, and the unit handles speed extremes with long-term reliability

Includes

• EXTECH 461950
