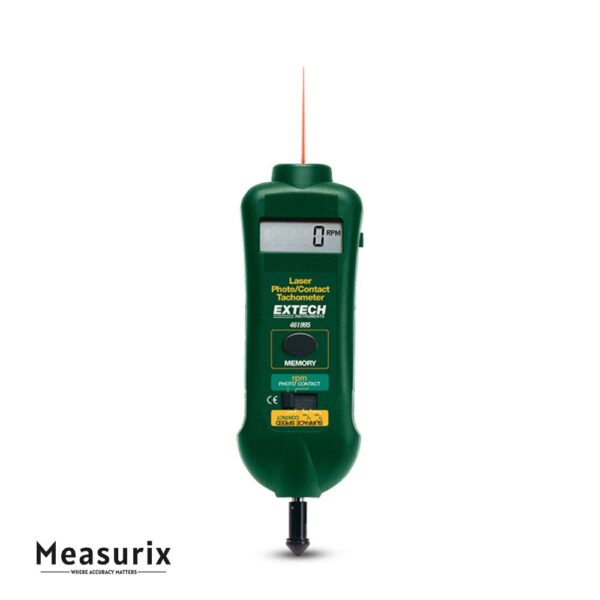

Extech 461995 Combination Contact/Laser Photo Tachometer
The 461995 is a handheld tachometer that supports both direct-contact measurements and non-contact laser photo measurements, making it versatile for a wide range of rotating or moving machinery monitoring tasks.
Description
This instrument integrates two measurement modes: contact mode (placing a tip onto the shaft) and non-contact laser photo mode (pointing a laser beam at reflective tape on the target from a safe distance). In contact mode it covers roughly 0.5 rpm up to about 20,000 rpm; in laser photo mode it ranges from about 10 rpm up to nearly 100,000 rpm. A surface-speed mode is included (using wheel attachments) for converting to linear motion (ft/min or m/min). The display is a large five-digit LCD, changes orientation depending on mode to ensure readability, and includes memory to store last, minimum and maximum readings. It’s built with a microprocessor and quartz time-base for high accuracy (≈0.05 % of reading). The laser photo mode extends measurement distance (up to ~2 m) for difficult-to-reach or high-speed applications. Supplied with surface-speed wheel attachments, reflective tape, batteries and a carrying case, it’s ready for field use.
Applications include motor or fan maintenance, belt/pulley speed checks, pump or compressor shaft monitoring, and any scenario where switching between contact and non-contact measurement is valuable.
Features
-
Dual measurement modes: contact (~0.5 to ~20,000 rpm) and laser non-contact photo (~10 to ~99,999 rpm).
-
High measurement accuracy: approx. ±0.05 % of reading +1 digit in both modes.
-
Surface-speed measurement (via contact wheel) from ~0.2 ft/min up to ~6,560 ft/min (≈0.05 to 1,999 m/min).
-
Laser aiming system in photo mode allows measurement distance up to ~6.5 ft (~2 m) from the target, improving safety and access.
-
Large 0.4″ (10 mm) 5-digit LCD display; display orientation flips depending on mode for easy reading.
-
Memory function storing last reading, maximum and minimum values during measurement sessions.
-
Supplied accessories: reflective tape, contact wheel attachments, batteries, carrying case – field ready.
Includes
- Wheels for linear surface speed or RPM measurements
- 4 AA batteries, 0.6 m (23 in) reflective tape
- Carrying case
- User manual.
