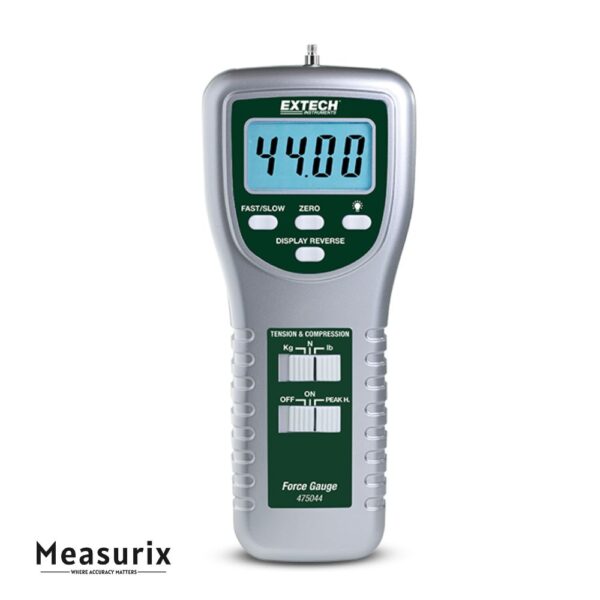

Extech 475044 High Capacity Force Gauge
The Extech 475044 is a digital force gauge designed for precise push/pull measurements in various industries. With a capacity of up to 44.1 lbs (20 kg or 196.1 N), it offers high accuracy, multiple measurement units, and a user-friendly interface, making it suitable for quality control, product testing, and laboratory applications.
Description
The Extech 475044 High Capacity Force Gauge is engineered to provide accurate force measurements in both tension and compression modes. It features a load cell transducer with a basic accuracy of ±(0.5% of reading + 2 digits), ensuring reliable results across its measurement range. The gauge offers multiple units of measurement, including pounds, kilograms, and newtons, with resolutions down to 0.01 lbs, 0.01 kg, or 0.05 N.
For enhanced usability, the device includes peak hold and zero functions, allowing users to capture maximum force values and reset the display as needed. The large 5-digit LCD screen is backlit and supports both positive and reverse display orientations, facilitating easy reading in various lighting conditions.
Equipped with an overload capacity of 30 kg, the 475044 is built to withstand demanding testing environments. The device operates on six AA 1.5V batteries and comes complete with tension and compression adaptors, a carrying case, and a 5″ extension rod for versatile testing setups.
Features
- High Capacity Measurement: Measures forces up to 44.1 lbs (20 kg or 196.1 N).
- High Accuracy: Basic accuracy of ±(0.5% of reading + 2 digits).
- Multiple Units: Selectable units including pounds, kilograms, and newtons.
- Peak Hold Function: Captures and holds the maximum force reading.
- Zero Function: Resets the display to zero for relative measurements.
- Large Backlit LCD: Easy-to-read display with positive/reverse orientation.
- Overload Capacity: Withstands up to 30 kg overload.
- Fast/Slow Response Modes: Selectable response times for different testing scenarios.
- Portable Power: Operates on six AA 1.5V batteries.
- Included Accessories: Comes with tension and compression adaptors, a 5″ extension rod, and a carrying case.
Includes
- Tension rod
- Carrying case
- 4 adapters (flathead, cone, chisel and hook for tension),
- 6 AA batteries
