Extech 480403 Motor Rotation and 3-Phase Tester
This tester is designed to easily and safely check both the phase sequence of three‑phase systems and the actual rotation direction of a motor. It supports a voltage range from 40 to 600 VAC and a frequency range of 2 to 400 Hz.
Description

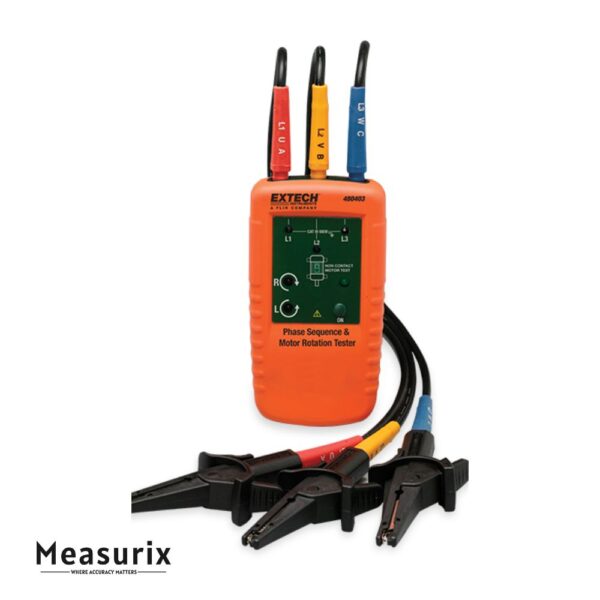

The Extech 480403 is a compact, handheld instrument tailored for industrial electricians and maintenance technicians who need quick verification of three‑phase wiring and motor setup. It offers two key functions. First, it verifies phase orientation (i.e., whether the three phases are in the correct order) by connecting the included color‑coded leads to the three supply phases; LED indicators show each phase’s presence and whether the sequence is correct (clockwise) or reversed (counter‑clockwise).Second, it determines motor rotation direction in two ways: a direct contact method (connecting to the motor terminals) and a non‑contact method (holding the tester near the motor shaft or housing to detect the magnetic field and rotation direction) — a particularly useful feature to prevent damage due to incorrect motor wiring. The instrument is built with a durable double‑moulded housing, wide‑jaw alligator clips for ease of use, and it ships complete with the test leads, pouch case and a 9 V battery.
Features
-
Voltage measurement range of approximately 40 to 600 VAC, supporting industrial three‑phase systems.
-
Frequency range from 2 to 400 Hz, allowing usage on both standard and non‑standard frequency systems.
-
Phase sequence detection: LEDs indicate whether phase order is correct (clockwise) or reversed (counter‑clockwise).
-
Motor rotation direction detection: Supports both contact and non‑contact methods to check motor wiring and rotation.
-
Durable construction: Double moulded housing for rugged use in industrial environments.
-
Supplied with three large color‑coded alligator clips and test leads, making setup easy.
-
Non‑contact motor rotation detection: You can hold the tester near the motor shaft/housing rather than connecting directly, reducing risk.
-
Safety rating: CAT III 600 V (or equivalent) – appropriate for many panel and feeder level checks.
-
Lightweight and portable: Compact physical dimensions (~130 × 69 × 32 mm) and weight around 130 g.
-
Simple operation: ON button, LED indicators, and clear wiring instructions for phase/motor testing.
Includes
- Cable
- Three large color coded alligator clips
- Pouch case
- 9V battery
