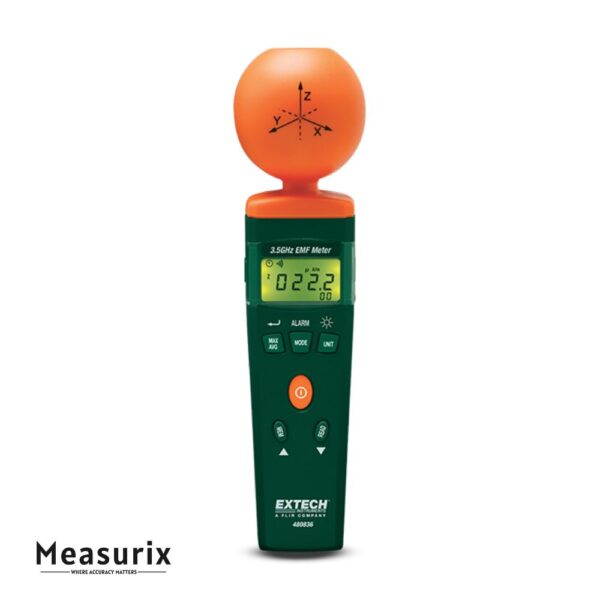

Extech 480836 RF EMF Strength Meter
The Extech 480836 is a handheld RF/EMF strength meter that monitors high-frequency electromagnetic fields from 50 MHz to 3.5 GHz. It’s intended for locating RF “hot spots,” assessing wireless networks, checking microwave leakage, and general EMF exposure measurements.
Description
The 480836 RF EMF Strength Meter is engineered for versatile detection of electromagnetic fields in high-frequency environments. It covers a broad frequency range of 50 MHz to 3.5 GHz, with optimized sensitivity for common bands like 900 MHz, 1800 MHz, and 2.7 GHz, making it suitable for mobile networks, Wi-Fi, base stations, and microwave sources.
Its tri-axis (three-channel) isotropic sensor enables non-directional measurements—so you don’t need to orient the meter toward the source to capture field strength. It supports Max Hold and Average measurement modes to capture peak or averaged RF levels. Users can store and recall up to 99 data sets for comparative or field survey work. An adjustable audible alarm helps alert when field levels exceed selected thresholds. Readouts include values in electric field (V/m, mV/m), magnetic field equivalents (A/m), and power density (µW/m², W/m², etc.). The unit is lightweight (~200 g with battery), compact (9.3 × 2.4 × 2.4 in or 237 × 60 × 60 mm), and powered by a standard 9 V battery. A carrying case is included for portability and field use.
Features
- Frequency Coverage — 50 MHz to 3.5 GHz, optimized around 900 MHz, 1800 MHz, and 2.7 GHz.
- Tri-Axis Isotropic (3-Channel) Sensor — Measures field strength in all spatial directions without needing alignment.
- Measurement Modes — Supports instantaneous, Max Hold, and Average display modes.
- Memory Store / Recall — Can store and recall up to 99 measurement sets.
- Audible Alarm — User-adjustable threshold alert for when readings exceed set limits.
- Wide Measurement Range & Units — Electric field: 20 mV/m to 108 V/m; magnetic equivalent: 53 µA/m to 286.4 mA/m; power density: 1 µW/m² to 30.93 W/m² (also in µW/cm²).
- High Resolution — 0.1 mV/m, 0.1 mA/m, 0.1 µW/m², 0.001 µW/cm².
- Compact & Lightweight — Dimensions approximately 9.3 × 2.4 × 2.4 in; weight about 200 g (7 oz) including battery.
- Portable Power — Operated by a standard 9 V battery (included).
- Included Accessories — Comes with a carrying case for convenient field use.
Includes
- 9V battery
- Carrying case
