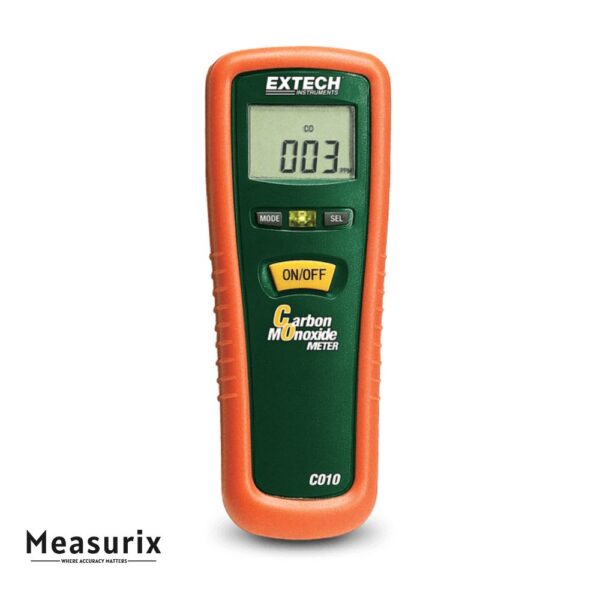

Extech CO10 Carbon Monoxide Meter
The Extech CO10 is a compact handheld carbon monoxide (CO) meter capable of measuring CO concentrations from 0 to 1000 ppm with 1 ppm resolution. It includes visual and audible alarms (starting at 35 ppm), display backlight, memory functions, and is designed for use in homes, HVAC systems, and industrial settings to monitor CO levels quickly and reliably
Description
The CO10 is engineered for quick, on-the-spot detection of carbon monoxide levels in indoor environments. It employs a stabilized electrochemical sensor specifically tuned for CO detection. Upon power up, it performs a self-check, then begins monitoring CO levels, displaying current concentration in parts per million (ppm).
If CO rises above 35 ppm (default alarm level), the meter emits a beep and visual indicator; the alarm’s beep rate increases as CO levels climb. Once CO exceeds 200 ppm, the alarm is continuous. Users can recall the highest CO reading (Max Hold), store readings in memory, and hold a reading on the screen. The display includes a backlight for low-light conditions. To preserve battery life, it automatically powers off after 15 minutes of inactivity (unless disabled).
The unit is powered by a single 9V battery and comes with a protective holster and carrying case, making it convenient for field inspections, HVAC checks, or safety audits. Its size and interface are optimized for ease of use in daily work environments.
Features
- Measurement range: 0 to 1000 ppm CO with 1 ppm resolution
- Accuracy: ±5% of reading or ±10 ppm (whichever is greater)
- Audible and visual alarm: activates at 35 ppm, continuous above 200 ppm
- Max Hold and Data Hold functions for capturing critical readings
- Backlit LCD display for easy visibility in low light
- Auto power-off after ~15 minutes of inactivity (user-selectable)
- Stabilized electrochemical sensor with ~3-year typical lifespan
- Internal memory for storing up to 10 readings
- Compact, pocket-size design with protective holster
- Powered by a 9V battery with ~50 hours of operating time
Includes
- 9-volt battery
- Protective holster
- Case
