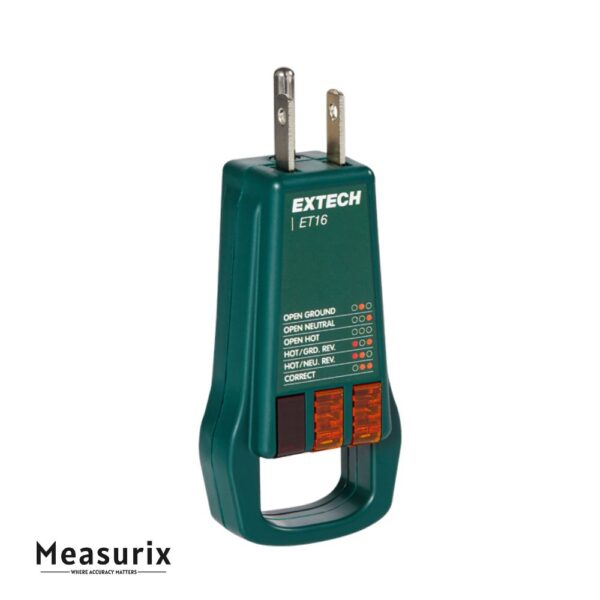

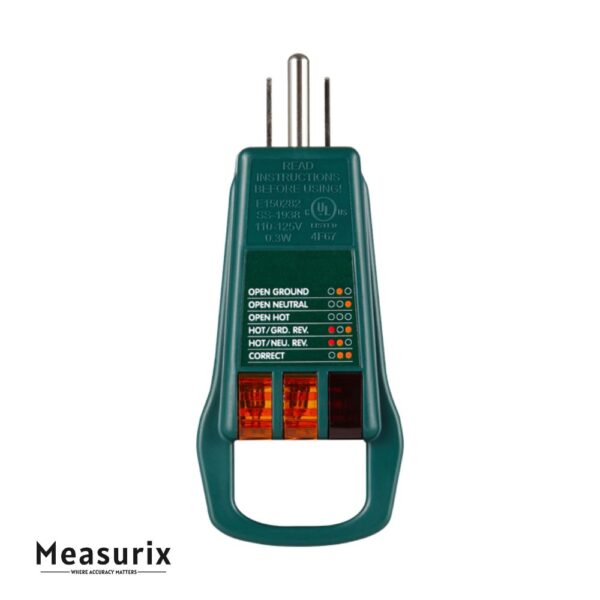

Extech ET16 Receptacle Tester for Type B Electrical Outlets

The ET16 is engineered for electricians, maintenance technicians and building inspectors who need a fast and reliable way to confirm the wiring condition of standard North American three-wire receptacles. Simply plugging the tester into the outlet triggers a combination of LED lights which map to a clear legend printed on both sides of the unit—making it safe to use regardless of ground-terminal orientation. The device detects conditions such as correct wiring, open ground, open neutral, open hot, hot/ground reversed, and hot/neutral reversed. Its compact moulded plastic body includes an ergonomic “pull-bar” to safely remove it from the outlet without tugging on the cord or risking contact. The tester is rated for use on 110-125 V AC, 50 or 60 Hz circuits and is meant for quick checks rather than deep fault diagnosis (for instance, it does not test GFCI/GFI operation). Built to be rugged and cost effective, it offers a simple yet effective solution for routine outlet wiring verification.

Features

• Plug-in receptacle tester for 110-125 V AC, 50/60 Hz three-wire (Type B) outlets.

• Detects six wiring conditions: correct wiring, open ground, open neutral, open hot, hot/ground reverse, and hot/neutral reverse.

• Test legend printed on both sides of the unit so it works regardless of whether the ground pin is ‘bottom’ or ‘top’.

• Ergonomic pull-bar design for safe and easy removal from the receptacle without stress on cord or body.

• Compact handheld form-factor (approx. 4.26″ × 1.78″ × 1.1″) making it highly portable and easy to carry in a tool-belt.

• Drop-tested (2 m height) rugged housing suitable for field use.

• UL/cUL approved for safety in US/Canada installations and backed by a 2-year warranty.

• Very low cost and no batteries or external power source required—instant plug-and-read operation.

• Ideal for quickly verifying outlet integrity before plug-in equipment installation, tenant moves, or maintenance checks.

Includes

• Receptacle Tester
• User Manual
• Two-Year Warranty
