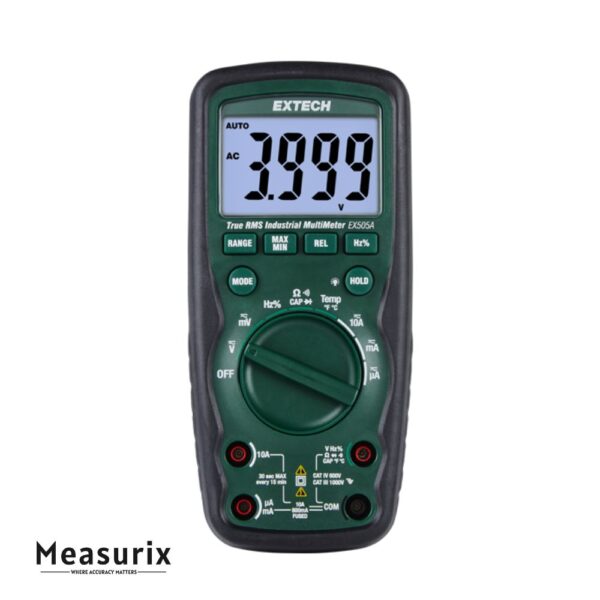

Extech EX505A Heavy-Duty True RMS Industrial Multimeter
The Extech EX505A is a rugged True RMS industrial multimeter designed for professionals who require precise and reliable measurements in demanding environments. With its comprehensive measurement capabilities and durable construction, it is well-suited for applications in electrical diagnostics, HVAC systems, and benchtop testing.
Description
The Extech EX505A Heavy Duty True RMS Industrial Multimeter is engineered to provide accurate measurements across a wide range of electrical parameters. It offers True RMS measurements for both AC and DC voltages up to 1000V, AC and DC currents up to 10A, resistance, capacitance, dual-sensitivity frequency (1 kHz for electrical and 10 MHz for electronic), duty cycle, and temperature using a Type K thermocouple. The multimeter features a 6000-count backlit LCD display with a basic accuracy of ±0.5%, ensuring clear readings even in low-light conditions. Designed for durability, the EX505A boasts an IP67 rating, making it waterproof and dustproof, and is drop-tested to withstand falls from up to 2 meters (6.5 feet). It also includes 1000V input protection on all functions and a CAT IV-600V safety rating, providing enhanced safety for industrial applications. Additional features include relative mode, data hold, and auto power-off functions, making it a versatile tool for professionals in various fields.
Features
- True RMS Measurements: Ensures accurate readings for both sinusoidal and non-sinusoidal waveforms.
- Comprehensive Measurement Range: Measures AC/DC voltage up to 1000V, AC/DC current up to 10A, resistance, capacitance, frequency, duty cycle, and temperature.
- Dual Sensitivity Frequency: Offers 1 kHz sensitivity for electrical frequencies and 10 MHz for electronic frequencies.
- Type K Thermocouple Input: Measures temperatures from -20°C to 760°C (-4°F to 1400°F) with a Type K thermocouple.
- High-Resolution Display: Features a 6000-count backlit LCD screen for clear visibility in various lighting conditions.
- Durable Construction: IP67-rated for water and dust resistance; drop-tested to withstand falls from up to 2 meters (6.5 feet).
- Safety Features: Includes 1000V input protection on all functions and a CAT IV-600V safety rating.
- Convenient Functions: Equipped with relative mode, data hold, and auto power-off functions for ease of use.
Includes
- True RMS Multimeter
- NIST-Traceable Calibration Certificate
- Double-molded Test Leads
- Type K Bead Wire Temperature Probe
- Magnetic Hanging Strap
- Pouch
- Carrying Case
- 9 V Battery
- User Manual
- Two-Year Warranty
