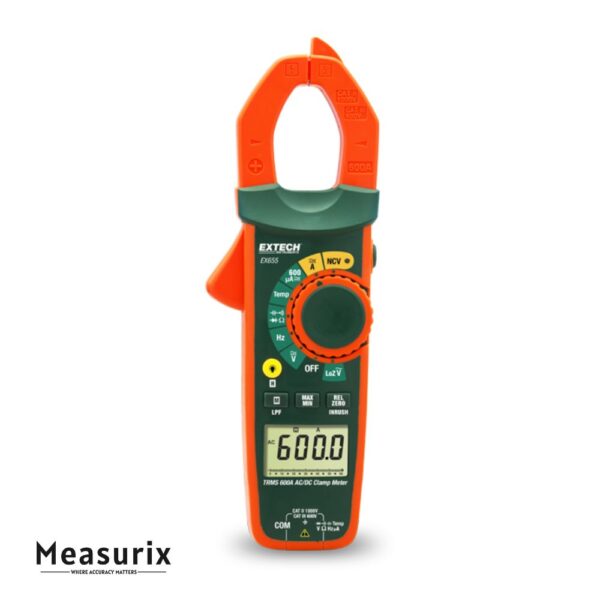

Extech EX655 600A True RMS AC/DC Clamp Meter with NCV
The Extech EX655 is a high-capability clamp meter that provides true RMS measurement for both AC and DC currents up to 600 A. It combines this with non-contact voltage detection and a full multimeter suite, making it a versatile tool for electricians, maintenance technicians, and industrial field service.
Description
The EX655 is part of Extech’s advanced clamp meter lineup. Its true RMS architecture ensures accurate readings even in distorted or non-sinusoidal environments. The jaws open to 1.18 in (30 mm), allowing measurement of sizeable conductors (up to around 350 MCM). Beyond current, it supports AC/DC voltage, resistance, capacitance, frequency, temperature (via Type K probe), continuity, diode testing, and microcurrent measurements. It also includes features like low-impedance (LoZ) mode to avoid ghost voltages, a low-pass filter (LPF) for stable readings on variable frequency drive (VFD) circuits, and an inrush mode to capture startup surges. The backlit 6000-count LCD display has a bargraph and trend display, and the unit is equipped with a built-in LED worklight. Other handy functions include data hold, min/max capture, relative mode, DC zero, and auto power-off.
Be aware: this model was subject to a safety recall for certain serial ranges due to possible erroneous voltage readings, so it’s wise to check whether your unit is affected.
Features
- True RMS (AC & DC) — Accurate measurements under distorted waveform conditions.
- Current Ranges — Up to 600 A AC and 600 A DC.
- Voltage Ranges — AC up to 750 V, DC up to 1000 V.
- Complete Multimeter Functions — Resistance, capacitance, frequency, temperature (Type K), microcurrent, continuity, diode.
- Non-Contact Voltage (NCV) Detector — Detects AC voltages from 100 to 1000 V without direct contact.
- LoZ / Low Impedance Mode — Reduces false readings from ghost voltages.
- Low-Pass Filter (LPF) — Useful for filtering high-frequency noise (e.g. from VFDs).
- Inrush / Surge Capture Mode — Captures current spikes at motor or load startup.
- Backlit 6000-Count Display + Trend Bargraph — Clear, informative display for methodical diagnostics.
- Built-In LED Worklight — For working in low-light environments.
- Compact Jaw / Conductor Size — 1.18 in (≈ 30 mm) jaw, handles conductors up to ~350 MCM.
- Convenience Functions — Data hold, min/max, relative mode, DC zeroing, auto power-off.
Includes
- Test leads general purpose bead wire Temperature probe
- 3 AAA batteries
