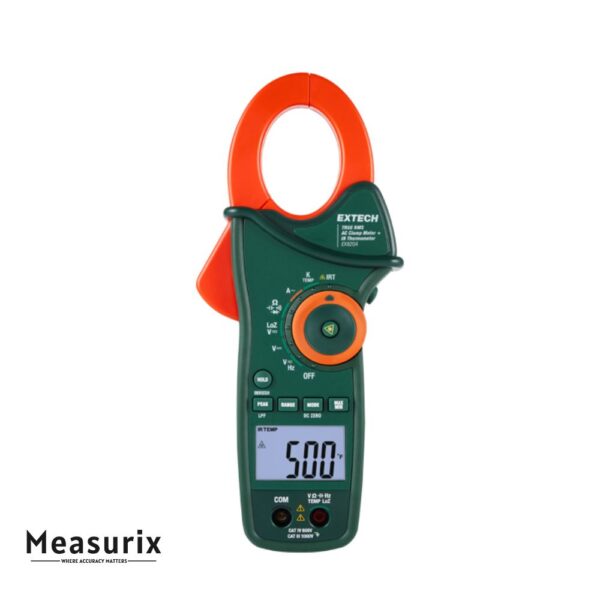

Extech EX820A 1000A True RMS AC Clamp Meter with IR
The Extech EX820A is a high-performance clamp meter capable of measuring up to 1000 A AC using true RMS, combined with a built-in non-contact infrared thermometer. Its features make it well suited for electricians, maintenance technicians, and field service engineers who need to monitor both electrical current and surface temperature.
Description
The EX820A is built to deliver reliable electrical and thermal diagnostics in a single handheld tool. Its clamp jaw (43 mm opening) supports conductor sizes up to 750 MCM or dual 500 MCM cables. The meter measures AC current from 0.1 A to 1000 A with a basic accuracy of ±(2.5 % + 8 digits). For temperature, it includes an infrared sensor covering –50 °C to 270 °C, enabling detection of overheating components without physical contact.
To improve measurement accuracy in challenging environments, the EX820A features a Low Pass Filter (LPF) to suppress high-frequency noise and a Low Impedance (LoZ) mode to avoid ghost voltages. It includes practical features such as inrush capture (to measure startup currents), peak and hold, and a 6000-count backlit LCD for clear reading in dim lighting. The housing is ergonomically double-molded for grip and one-handed operation, while safety is assured with a CAT IV 600 V rating.
This tool is ideal for diagnosing electrical systems where both current measurement and thermal spotting are required—for example, checking motors, connectors, panels, and cables in industrial or commercial settings.
Features
- 1000 A True RMS AC Measurement — Accurate AC current readings for varied waveforms
- Built-in IR Thermometer — Non-contact surface temperature measurement (–50 °C to 270 °C)
- Low Pass Filter & LoZ Mode — Reduces interference and avoids false voltage readings
- Inrush / Peak Capture — Records transient or startup currents
- Large Jaw Opening — 43 mm (1.7 in) fits large conductors
- Backlit 6000-Count LCD — Clear display even in low-light environments
- Ergonomic Design — Double-molded grip for comfortable one-hand use
- Safety Rating — CAT IV 600 V for use in demanding electrical environments
- Comprehensive Measurement Functions — Likely includes voltage, resistance, frequency, continuity, diode
- Compact & Portable — Designed for field work with robust build
Includes
- True-RMS AC Clamp Meter (EX820A)
- Type-K Temperature Probe
- Set of Double-Molded Test Leads
- 9V Battery
- Carrying Case
- User Manual
