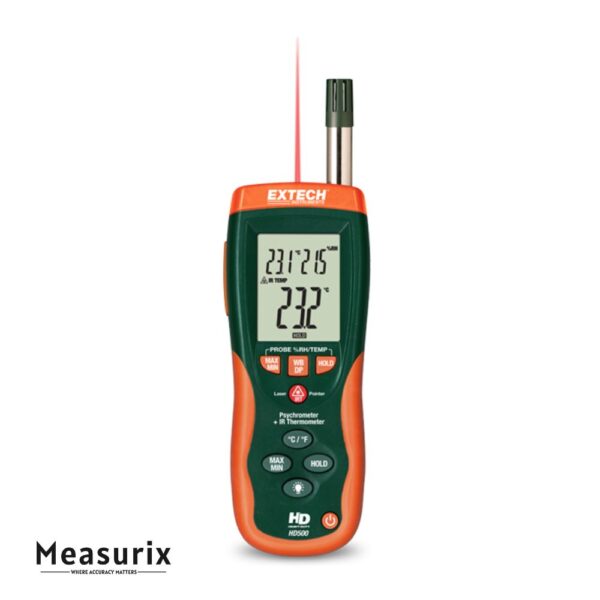

Extech HD500 Psychrometer with Infrared Thermometer
The Extech HD500 is a 3-in-1 handheld instrument combining a psychrometer, Type K contact thermometer input, and a non-contact infrared thermometer. It simultaneously measures relative humidity, air (ambient) temperature, dew point, wet bulb, and surface temperature via IR or external probe, making it a versatile tool for HVAC, building diagnostics, and industrial inspections.
Description
The HD500 integrates multiple measurement modes into a single rugged instrument. Its internal humidity sensor and thermistor measure ambient conditions (RH and air temperature), from which it calculates dew point and wet bulb values. It also provides a Type K thermocouple input—so users can plug in a temperature probe for direct contact measurements—while an internal infrared sensor allows non-contact surface temperature readings. A laser pointer helps with accurate targeting of IR measurements. The instrument sports a large triple-backlit LCD display to present multiple readings at once, and it offers features like Data Hold, Min/Max recording, auto power-off, and USB connectivity for data export. The HD500 comes supplied with a Type K bead wire probe, USB cable with software, carrying case, and a 9 V battery, and it’s backed by a 3-year warranty.
Features
- Triple-function measurement — Humidity/RH, contact temperature (Type K), and non-contact IR surface temperature
- IR thermometer capability — Measures up to 500 °C (932 °F) with 30:1 distance-to-spot ratio
- Type K thermocouple input — Accepts external temperature probes for direct contact measurements
- Simultaneous display — Triple LCD shows multiple parameters concurrently (e.g., RH + dew point + IR or probe temperature)
- Data Hold & Min/Max recording — Freeze readings and recall highest/lowest values
- Auto power-off (disable option) — Conserves battery life, with override option
- USB interface & software — For transferring logged data to a PC
- Backlit LCD — Enables use in low-light environments
- Protective laser pointer — Assists with precise aiming of IR measurements
- Rugged and portable design — Durable housing, comes with carrying case and 3-year warranty
Includes
- USB cable
- Type K bead wire probe
- Carrying case
- 9-volt battery
