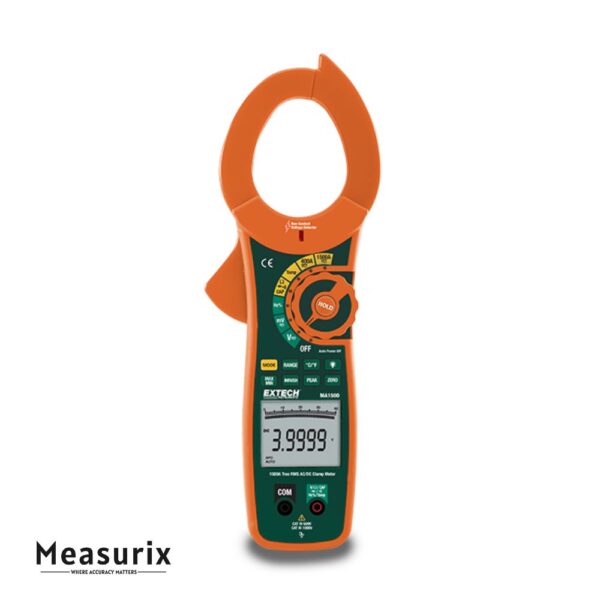

Extech MA1500 1500A True RMS AC/DC Clamp Meter with NCV
The Extech MA1500 is a high-capacity clamp meter capable of measuring both AC and DC currents up to 1500 A with true RMS accuracy. It also features a built-in non-contact voltage (NCV) detector and a full suite of multimeter functions, making it a powerful diagnostic tool for heavy electrical systems.
Description
The MA1500 is designed for demanding electrical tasks where high-current measurement and safe diagnostics are needed. Its jaws open to 2.0 in (52 mm), allowing it to clamp around large conductors (up to 500 MCM). The true RMS capability ensures accurate current readings even when waveforms are distorted or non-sinusoidal. In addition to its high current ranges, the meter supports AC/DC voltage (up to 750 V AC / 1000 V DC depending on range), resistance, capacitance, frequency, temperature (via Type K thermocouple), continuity and diode testing.
The NCV feature lets you detect live circuits without direct contact, improving safety during initial inspections. Other useful functions include inrush/current surge capture (for motor starts), relative mode (zeroing offsets), data hold, peak/minimum/maximum recording, and auto power-off to save battery. It has a dual-segment LCD (40,000 / 4,000 count) with backlight for readability in different lighting conditions. Ruggedly built for field use, it comes with test leads, a temperature probe, battery, and a carrying case.
Features
- True RMS Measurement (AC & DC) – Ensures accurate readings even on distorted or noisy waveforms.
- High Current Capacity – Measures up to 1500 A for both AC and DC currents.
- Large Jaw Size – 2.0 in (52 mm) opening accommodates large conductors (up to 500 MCM).
- Full Multimeter Functionality – Voltage (AC/DC), resistance, capacitance, frequency, temperature, continuity, diode.
- Non-Contact Voltage (NCV) Detector – Alerts you to live voltage without direct electrical contact.
- Inrush / Surge Capture – Records high starting currents (useful for motors and inductive loads).
- Relative / Zero Mode – Allows offset calibration or zeroing before measurement.
- Data Hold / Min / Max / Peak Recording – Freezes readings or tracks extremes during measurement.
- Backlit Dual-Segment LCD – 40,000 / 4,000 count display, with bargraph and lighting for clear visibility.
- Auto Power-Off & Power Saving – Automatically shuts down when idle to conserve battery.
- Rugged Design for Field Use – Durable housing, overload protection, and heavy-duty performance.
Includes
Test leads
Type K bead wire temperature probe
9V battery
Carrying case
