Extech PQ1000 Voltage Test Leads

The PQ1000 accessory kit provides a complete set of voltage leads tailored for high-performance measurement and power-analysis tasks. It includes four colour-coded leads (black, red, blue and yellow), each approximately 3 m (10 ft) in length and terminated with shrouded banana plugs at both ends—one end being right-angled for easier access in crowded panels. The kit also comes with a range of clip accessories: standard test probes, alligator clips and long-reach spring-loaded clips, allowing the user to adapt to different conductor types and test points. With a safety rating of CAT IV at 600 V (and CAT III at 1000 V), the PQ1000 is built for use on main supply distribution, switchgear and challenging field environments. Its design emphasises both versatility and reliability, enabling precise voltage measurements and ensuring compatibility with sophisticated power-analysis metres. Whether used for commissioning, maintenance, or diagnostics in industrial power systems, the PQ1000 elevates the test-lead functionality by offering flexible termination, strong safety credentials and full accessory coverage in one kit.

Features

• Four colour-coded leads (black, red, blue, yellow), ~3 m (10 ft) long, with shrouded banana plugs at both ends and right-angle one-end layout.

• CAT IV-600 V / CAT III-1000 V safety rating, making the kit suitable for high-voltage distribution and main supply work.

• Includes multiple termination accessories: standard probes, alligator clips, and long-reach spring-loaded clips — enabling connection to a wide variety of conductors and test points.

• Compatible with advanced power-analysis instruments (designed as an accessory kit for three-phase power analysers), ensuring seamless integration.

• Durable, professional-grade leads with comfortable over-moulded grips and flexible insulation — built for demanding field use.

• Multi-purpose use: can be employed in single-phase or three-phase systems and in environments where multiple test connections and colour identification simplify workflow.

• Long lead length provides reach to test points in large installations without compromising mobility.

• Right-angled plug one end allows better fit in tight panel spaces or when the meter is closely coupled to the leads.

• Banana-plug termination ensures secure, stable connection to the measurement instrument, improving safety and measurement integrity.

• Full accessory set in one kit reduces the need to purchase separate leads and clips, offering immediate readiness for field measurement tasks.

Includes

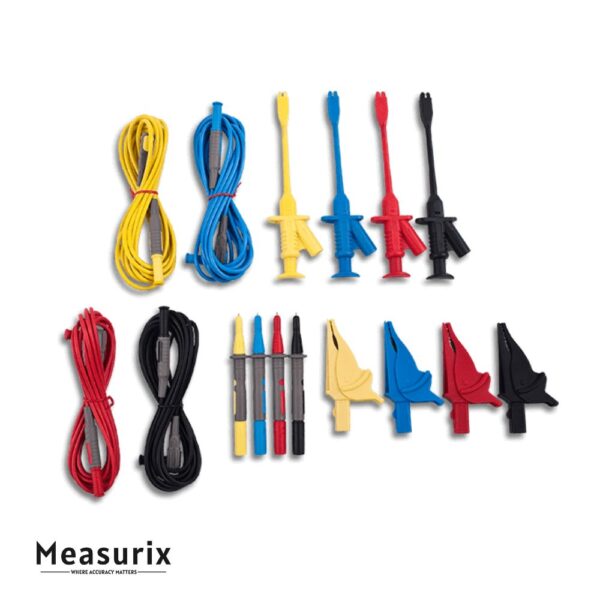

• It includes a set of 4, 3 m (10 ft) test leads (black, red, blue, yellow) with shrouded banana plugs on both ends (right angle on one end). Includes test probes, alligator clips, and long reach spring loaded clips.
