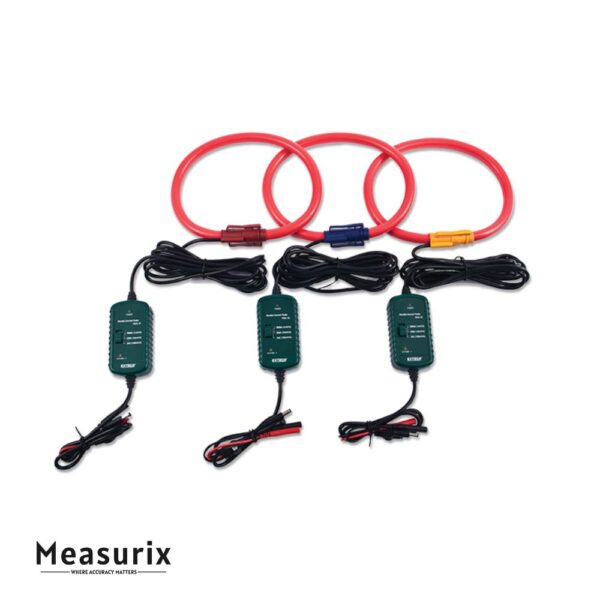

Extech PQ34-30 3000A Current Flexible Clamp Probes

The PQ34-30 flexible current clamp probes are built to meet the demands of measuring high-current conductors in industrial power systems. Each probe features a 600 mm (24-inch) flexible loop that can wrap around large busbars or bundled cables (round up to 177 mm or oval up to 216 mm), making it ideal for congested panels or switchgear rooms. The unit supports three selectable measurement ranges — 30 A, 300 A and 3,000 A AC — to maximise sensitivity and accuracy across a wide span of current. Output sensitivities are 100 mV/A for the 30 A range, 10 mV/A for the 300 A range and 1 mV/A for the 3,000 A range. The probes connect to compatible power-analyser instruments and supply their signal via standard output plugs, and the probes draw power from the host meter. They support frequencies from 45 Hz to 400 Hz, with phase error under 1° at 50/60 Hz, linearity better than ±0.2% from 10% to 100% of range, and an overall accuracy of ±1% full-scale (at 23 °C ±5 °C). Safety-wise they are rated for installation category CAT III up to 600 V, suitable for industrial measurement environments. In essence, the PQ34-30 offers a flexible, high-capacity clamping solution for accurate high-current measurement and logging in power-analysis tasks.

Features

• Flexible loop length of 600 mm (24 inches) allowing measurement around large conductors and bus bars.

• Three switch-selectable measurement ranges: 30 A, 300 A and 3,000 A AC for broad application coverage.

• High measurement accuracy: ±1% of full scale (50/60 Hz) with excellent phase error (<±1°) and linearity (±0.2% from 10–100% of range).

• Suitable for frequencies from 45 Hz to 400 Hz, making the probes usable across power systems and some industrial motor applications.

• Large conductor capacity: supports round conductors up to ~177 mm diameter or oval up to ~216 mm, enabling measurement of thick cables or bus bars.

• Output sensitivities tailored to each range: 100 mV per amp in the 30 A range, 10 mV/A in the 300 A range, 1 mV/A in the 3,000 A range — improving signal resolution at lower ranges.

• AC-coupled output, minimum load of 100 kΩ, making the signal compatible with a wide range of power-analysis equipment.

Includes

• The Extech PQ34-30 is a set of 3000 A Flexible Current Probes for PQ3450/PQ3470 power quality analyzers.
