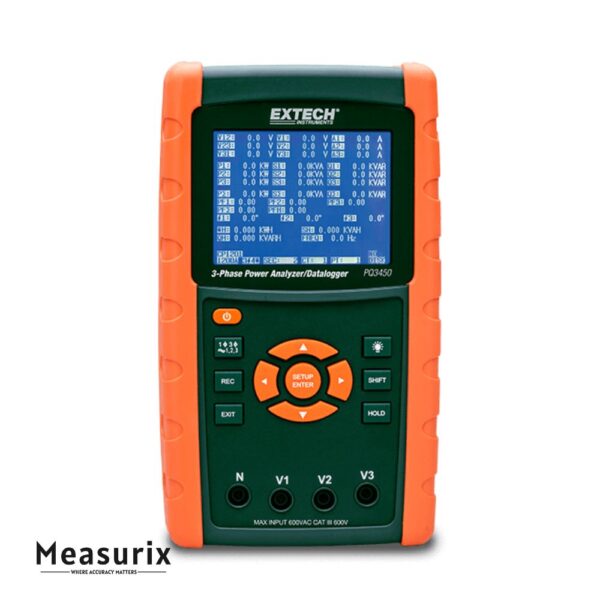

Extech PQ3450 3-Phase Power Analyzer/Datalogger

The Extech PQ3450 is built for detailed power and energy monitoring in three-phase systems. Housed in a rugged over-moulded case with a sun-readable dot-matrix backlit display, it offers full system analysis—covering voltages (phase-to-phase and phase-to-ground), currents, active, reactive and apparent power, power factor, phase angle, frequency and cumulative energy parameters.

With adjustable CT (current transformer) and PT (potential transformer) ratios, the PQ3450 can handle high-power distribution installations and varied measurement setups (1-phase or 3-phase, 3-wire or 4-wire). It logs up to 30,000 data sets on a removable SD card, which can be downloaded in Excel format for further analysis. The device supports sampling from every 2 seconds up to 2 hours, enabling both short-term and long-term monitoring tasks.

Safety is built in: it is rated for CAT III at 600 V, making it suitable for industrial installations. The unit comes with voltage leads, SD card, AC adapter and batteries; current probes are optional depending on the required current range.

Whether for commissioning large installations, troubleshooting power quality issues, or monitoring energy usage over time, the PQ3450 offers a comprehensive, portable solution.

Features

• Supports up to 35 measurement parameters, including voltages, currents, KW/KVA/KVAR, PF, energy totals and phase angle.

• Logs up to 30,000 readings on a removable SD memory card in Excel® format.

• Wide sampling rate—from 2 seconds to 2 hours—allowing flexible monitoring intervals.

• Adjustable CT ratio (1 – 600) and PT ratio (1 – 1000) for high-power distribution system measurement.

• Handles up to 600 V AC (phase-to-phase) with CAT III-600 V safety rating.

• Compatible with current clamps or flexible probes (e.g., up to 3,000 A depending on probe) for large-current systems.

• Rugged, ergonomic design with over-moulded housing and a large sun-readable backlit LCD interface.

• Downloadable data to PC via SD card for further analysis (spreadsheet compatible).

• Suitable for 1-phase and 3-phase systems (1P/2W, 1P/3W, 3P/3W, 3P/4W configurations).

• Built-in clock and calendar for timestamping measurement sets, enhancing data traceability.

Includes

• 4 voltage leads with alligator clips
• 8 AA batteries
• SD card
• 100-240 Volt AC adaptor and case
• Clamp probes sold separately
