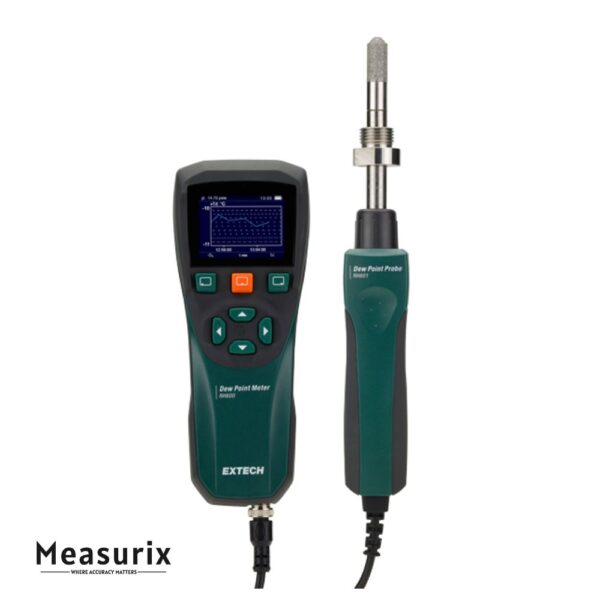

Extech RH600 Dew Point Meter

The Extech RH600 Dew Point Meter is engineered to provide precise measurements of dew point temperatures in compressed air systems. WitAdd new producth a measurement range extending to -50°C (-58°F) and an ambient pressure tolerance up to 20 bar, it caters to a wide array of industrial applications. The included RH601 probe features a G1/2″ thread, allowing direct insertion into the system for seamless integration. Its sensor purge function facilitates quick drying after contact with moisture, ensuring consistent and accurate readings. The device boasts a color graphical display, offering clear visualization of measurement trends both numerically and graphically. Additionally, it supports data logging of up to 32,000 data sets, which can be transferred to a PC via USB in CSV format for further analysis.

Features

• Wide Measurement Range: Accurately measures dew point temperatures from -50°C (-58°F) to +30°C (86°F).
• High Accuracy: Provides measurements with an accuracy of ±2°C (±3.6°F) over the entire pressure range.
• High-Pressure Tolerance: Operates effectively under ambient pressures up to 20 bar.
• Sensor Purge Feature: Allows rapid stabilization of the probe after exposure to moisture.
• Direct Probe Insertion: RH601 probe with G1/2″ thread for direct insertion into compressed air systems.
• Color Graphical Display: Displays measurement trends both numerically and graphically.
• Data Logging Capability: Stores up to 32,000 data sets with time stamps.
• USB Data Transfer: Easily transfer data to a PC in CSV format.
• Alarming Functionality: Set high/low set points for temperature, relative humidity, and dew point with visual and audible alarms.
• Portable Design: Lightweight and compact for easy handling and transport.

Includes

• RH600 – Dew Point Meter
• RH601 Dew Point Probe
• AC adapter
• Micro USB to USB-A cable
• 3.7 V Li-ion battery
• Hard case
