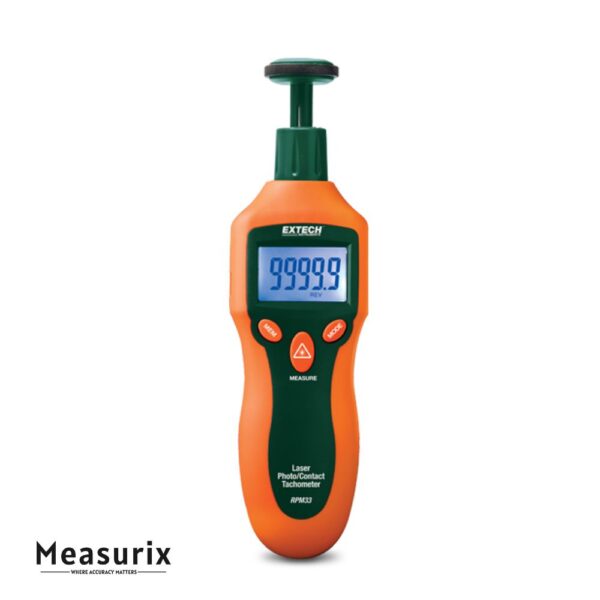

Extech RPM33 Combination Contact/Laser Photo Tachometer

This unit allows the user to measure rotational speed either by placing the contact tip on a shaft or by using a laser beam reflected off a marked target from up to about 0.5 m (1.6 ft) away. The non-contact (photo) mode covers approximately 2 to 99,999 rpm, while the contact mode covers about 2 to 20,000 rpm. It also supports measurement of surface speed (e.g., feet/min, meters/min) and length (inches, meters) via the included wheel adapter. The meter features a large five-digit back-lit LCD, built-in memory to store up to ten readings including measurement, max, min and average values, a quartz-crystal referenced microprocessor for high accuracy, and a rugged handheld form suitable for industrial maintenance. Accessories like reflective tape, wheel adapter, and battery are included so it’s field-ready out of the box.

Features

• Contact mode range: ~2 to 20,000 rpm with high accuracy (~±0.05% +1 digit).

• Non-contact laser photo mode range: ~2 to 99,999 rpm, enabling safe measurement at a distance.

• Surface-speed / length measurement in the contact mode: e.g., up to ~2,000 m/min or equivalent in ft/min/inches/min.

• Large five-digit back-lit LCD display for readability in field/industrial conditions.

• Memory storage of multiple readings (10 sets) capturing measurement, max, min, and average values.

• Laser pointer and sighting built in for accurate non-contact targeting and measurement.

• Compact handheld size (approx. 160 × 60 × 42 mm, ~151 g) for easy portability.

• Accessories included: 9V battery, reflective tape for photo mode, wheel adapter for surface speed, and protective case.

Includes

• Contact wheel for linear surface speed 0 to 1999.9 meters/minute; 0.2 to 6560 feet/minute) or RPM measurements
• 9-volt battery
• Reflective tape
• Carrying case, and user manual
