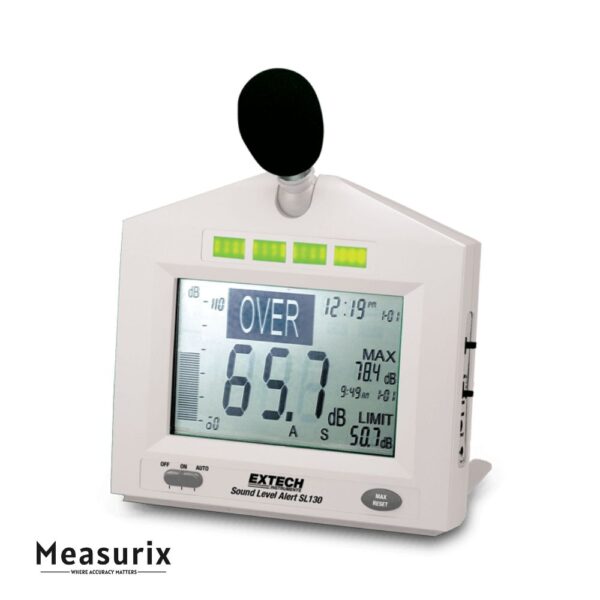

Extech SL130W Sound Level Alert with Alarm

The SL130W is engineered for fixed-location sound monitoring where continuous oversight is required — for example in industrial workplaces, classrooms, auditoriums or hospital zones. It features a built-in electret condenser microphone and offers selectable sound ranges (such as 30-80 dB, 60-110 dB or 80-130 dB) to match different environments. The user sets either a high limit or a low limit threshold (between 30 dB and 130 dB). When the measured sound level exceeds the high threshold (or falls below the low threshold, depending on configuration), the device triggers its alarm indicator: a bright red LED flashes (or green LED lights) to signal that the situation needs attention. The LED indicators are mounted so that they are visible from up to approximately 30 metres (100 feet), making them effective visual cues across large spaces. The SL130W supports wall-mount, desk-mount or tripod-mount installation, and offers an extension microphone cable option (≈5 m) for remote sensing. It complies with ANSI Type 2 and EN 60651 accuracy standards and includes an AC adapter for full functionality (and optionally battery operation for basic monitoring). With its large back-lit display, bar-graph read-out, and alarm relay output (via 3.5 mm jack) to drive external devices, the SL130W provides a strong solution where constant noise-level surveillance and instant visual alerting are required.

Features

• User-settable sound-level threshold across the range 30 dB to 130 dB, allowing the device to trigger alerts when the ambient noise is too high or too low. Bright, dual-colour LED indicators (red and green) visible from about 30 metres (100 feet) that alert the user when limits are breached.

• Selectable measurement ranges: 30-80 dB, 60-110 dB and 80-130 dB (with resolution 0.1 dB) adapting the device to quiet, moderate or loud environments.

• Dual weighting curves supported (A and C) and response-time settings of Fast (125 ms) or Slow (1 s) for flexibility in monitoring transient or steady noise.

• Alarm output jack (3.5 mm) capable of driving external relay modules or alert systems when thresholds are exceeded.

• Mounting flexibility: built-in wall mount, desk stand and tripod mount (standard ¼-20 screw) plus optional 5 m microphone extension cable for remote-location sensing.

• Compliance with recognised sound-meter standards (ANSI Type 2, EN 60651) making it suitable for many workplace- and environment-noise-compliance applications.

Includes

• Extech SL130W Sound Level Alert
• Microphone widescreen
• Built-in wall, desk and tripod mount
• 100-240V AC 50/60Hz adaptor
