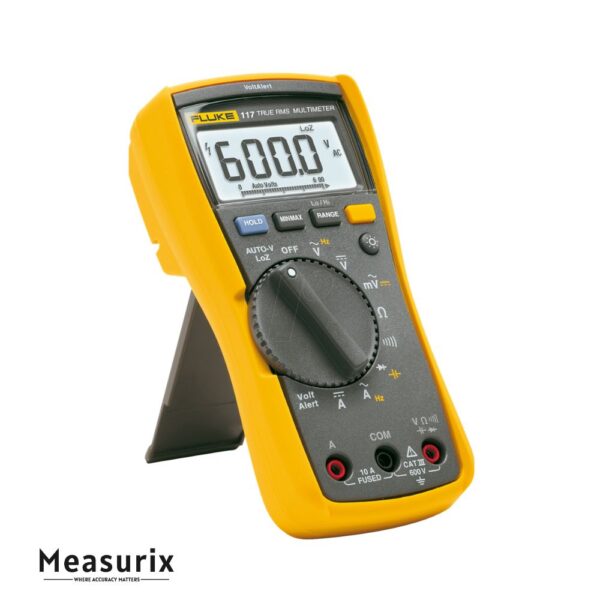

Fluke 117 Electricians Multimeter with Non-Contact voltage

The Fluke 117 combines precision measurement capabilities with practical safety and speed enhancements for professional use. It offers True RMS measurement for both AC and DC voltages and currents—ensuring reliable readings even when waveforms are highly distorted—alongside resistance, capacitance, frequency, diode testing and continuity checks. The built-in VoltAlert™ non-contact voltage detector enables technicians to quickly sense the presence of live AC voltage without test lead connection, improving efficiency and safety. The AutoVolt function automatically detects and switches between AC and DC voltage modes, reducing errors and user input. A low-impedance (“LoZ”) input mode helps prevent false readings from ghost voltages commonly found in building wiring. Designed for real-world field use, the meter features a 6,000-count display with bar graph, a bright white back-light for dim environments, and full CAT III 600 V safety rating with 6 kV surge protection. With its robust build and streamlined layout, the Fluke 117 is well-suited for applications in commercial buildings, hospitals, schools and service trucks.

Features

• True RMS measurement of AC/DC voltage and current for accurate results on complex waveforms.
• Integrated non-contact voltage (NCV) detection (VoltAlert) for fast live-wire detection without probe contact.
• AutoVolt automatic AC/DC voltage selection for simplified measurement setup.
• Low-impedance (LoZ) mode to eliminate false readings caused by ghost voltage in building wiring.
• Measures up to 600 V (AC/DC) and 10 A continuous, with 20 A overload capacity for 30 seconds.
• Resistance measurement up to 40 MΩ, capacitance, frequency, diode test, and continuity check.
• Bright white LED backlight and large 6,000-count display plus bar graph for easier reading in low-light settings.
• Safety rating: CAT III 600 V, maximum terminal-to-earth voltage 600 V, with 6 kV surge protection.
• Compact ergonomic design for one-hand operation; ideal for use in commercial buildings, hospitals, and schools.
• Min/Max/Average recording functions to capture and review signal fluctuations.
