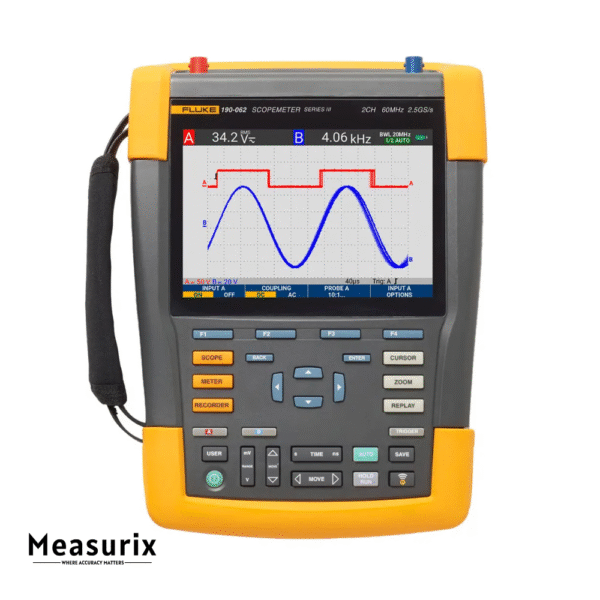

Fluke 190-062 ScopeMeter® Test Tool

The Fluke 190-062 ScopeMeter® Test Tool sets a new benchmark for portable oscilloscopes by combining laboratory-grade performance with rugged portability. Built to handle challenging industrial environments, it offers a 60 MHz bandwidth, 625 MS/s real-time sampling rate, and 10,000 samples per channel memory, enabling you to capture, zoom, and analyze even the smallest waveform details. Rated CAT III 1000 V / CAT IV 600 V, the 190-062 is safe for high-energy environments, ensuring reliable performance in power distribution, industrial automation, and heavy-duty electronics applications.

Equipped with independently isolated inputs, the ScopeMeter allows safe measurements in mixed-circuit systems without risk of accidental ground shorts. The built-in 5000-count digital multimeter simplifies diagnostics, allowing precise measurements of voltage, resistance, continuity, temperature, and more—all in one device.

Designed for demanding fieldwork, the IP51-rated casing protects against dust, moisture, and environmental contaminants. With ScopeRecord™ mode, you can log up to 30,000 data points per channel and capture intermittent events lasting up to 48 hours, while TrendPlot™ enables long-term monitoring of system performance over 22 days.

For added convenience, the 190-062 features dual USB ports for storing data directly to USB drives or transferring waveforms and configurations to a PC using FlukeView® software. Its Connect-and-View™ automatic triggering ensures stable and reliable waveform captures without manual adjustments, saving time when testing multiple points.

Whether diagnosing three-phase power systems, troubleshooting VSDs, or monitoring transient events, the Fluke 190-062 delivers the performance, durability, and safety professionals need in the field.

Features

• High-Performance Oscilloscope – 60 MHz bandwidth with 625 MS/s real-time sampling for precise waveform analysis.
• Isolated Dual Inputs – Independently floating inputs up to CAT III 1000 V / CAT IV 600 V for safe mixed-circuit measurements.
• Deep Memory & High Resolution – 10,000 samples per channel plus 30,000-point ScopeRecord™ for detailed waveform zooming and long-term data capture.
• Built-in Digital Multimeter – 5000-count DMM integrates voltage, resistance, continuity, diode, current, and temperature measurements in one device.
• Rugged & Field-Ready – IP51-rated enclosure protects against dust, drips, and harsh industrial environments.
• Connect-and-View™ Auto-Triggering – Instantly recognizes signal patterns for stable, reliable waveform captures.
• Long-Term Trend Analysis – TrendPlot™ mode records and monitors data for up to 22 days to detect intermittent faults.
• ScopeRecord™ Data Logging – Capture high-resolution waveform data for up to 48 hours for troubleshooting critical events.

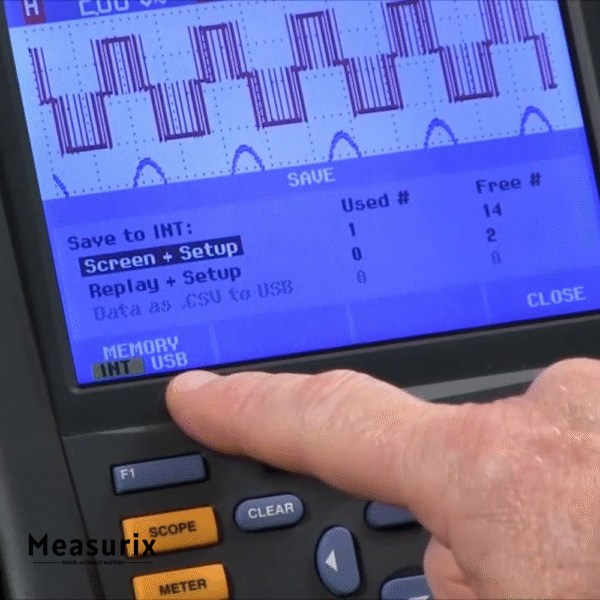

• USB Connectivity & FlukeView® Software – Save waveforms, screenshots, and instrument setups to USB or transfer data to PC for advanced reporting.
• Long Battery Life – Up to 4 hours of operation with quick-access Li-ion battery swaps for extended field usage.

Includes

• Color ScopeMeter® 60 MHz
• 2 channels
• DMM/Ext.input
