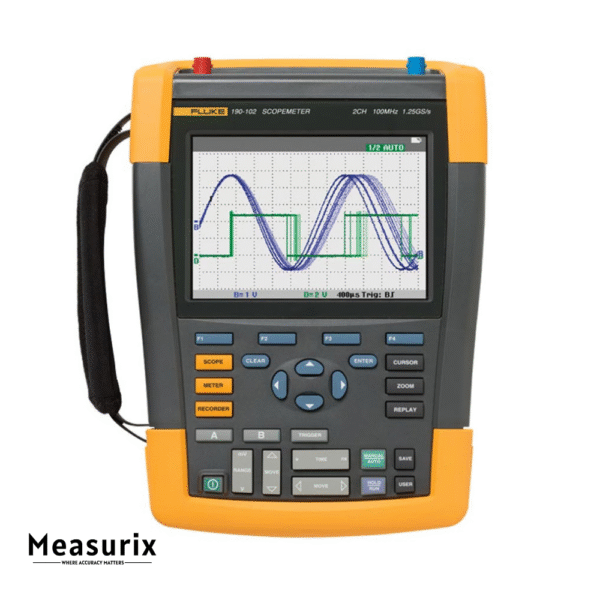

Fluke 190-102 ScopeMeter® Test Tool
The Fluke 190-102 ScopeMeter® is a rugged, dual-channel handheld oscilloscope that combines the performance of a bench scope with the portability of a field-ready test tool. With 100 MHz bandwidth, 1.25 GS/s real-time sampling, and 10,000-point deep memory per channel, it provides exceptional accuracy and detail in waveform analysis. Designed for industrial maintenance, power electronics, and troubleshooting applications, it features CAT III 1000 V / CAT IV 600 V safety rating, isolated inputs, and an integrated 5000-count digital multimeter. With advanced features like ScopeRecord™, TrendPlot™, Connect-and-View™ auto-triggering, and USB data connectivity, the 190-102 delivers maximum versatility for professionals working in demanding environments.
Description
The Fluke 190-102 ScopeMeter® Test Tool combines laboratory-grade performance with rugged portability, making it the ultimate tool for electrical engineers, plant technicians, and field service professionals. Engineered to handle harsh, dusty, and hazardous industrial environments, this handheld oscilloscope offers 100 MHz bandwidth, 1.25 GS/s real-time sampling, and 10,000 samples per channel, allowing precise waveform capture and analysis.
Rated CAT III 1000 V / CAT IV 600 V, the 190-102 ensures safe measurements in high-energy environments. The independently isolated inputs allow accurate troubleshooting in mixed-circuit systems without the risk of accidental ground shorts. A built-in 5000-count digital multimeter lets you measure voltage, resistance, continuity, current, and temperature without switching instruments.
With its IP51-rated enclosure, the 190-102 is dust-resistant and drip-proof, ensuring reliable performance in challenging conditions. The integrated ScopeRecord™ mode captures up to 30,000 data points per channel, while TrendPlot™ enables long-term system monitoring for up to 22 days—ideal for detecting intermittent faults.
The 190-102 features dual isolated USB ports for data transfer, waveform storage, and PC connectivity via FlukeView® software. Its Connect-and-View™ triggering provides automatic waveform stabilization, eliminating the need for manual adjustments. Powered by a high-capacity Li-ion battery, it delivers up to 4 hours of operation on a single charge, with an optional extended battery for 8 hours of runtime.

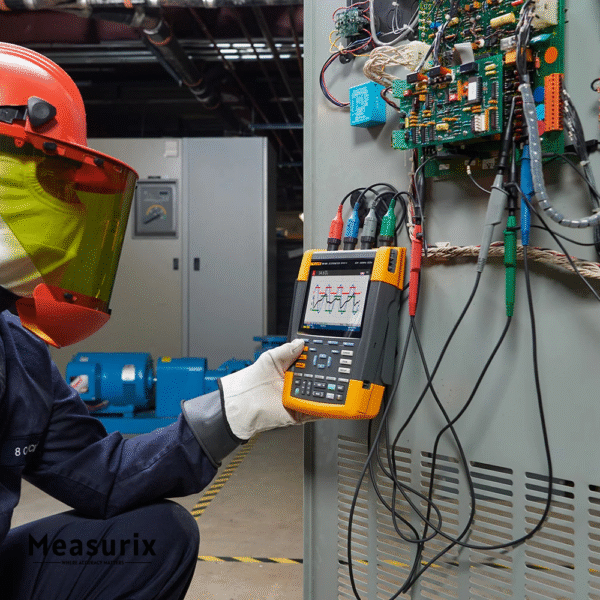

From diagnosing VSDs and power inverters to troubleshooting PWM signals, harmonics, transients, and three-phase power systems, the Fluke 190-102 ScopeMeter® is the professional’s choice for reliable, accurate, and safe field diagnostics.
Features
- 100 MHz bandwidth and 1.25 GS/s real-time sampling for accurate waveform analysis.
- Dual electrically isolated inputs rated CAT III 1000 V / CAT IV 600 V for safe mixed-circuit testing.
- Deep memory capture with up to 10,000 samples per channel for detailed signal inspection.
- ScopeRecord™ mode stores up to 30,000 data points per channel for long-duration recording.
- TrendPlot™ paperless recorder monitors and logs measurements continuously for up to 22 days.
- Connect-and-View™ triggering automatically provides a stable display without manual adjustments.
- Built-in 5000-count digital multimeter for voltage, resistance, continuity, current, and temperature.
- IP51 dust- and drip-proof rating, making it rugged and reliable in harsh industrial environments.
- Dual isolated USB ports for waveform storage, data transfer, and PC connectivity with FlukeView® software.
- Li-ion battery operation with up to 4 hours runtime (standard) or 8 hours with extended battery.
Includes
- Color ScopeMeter® 100 MHz
- 2 channels
- DMM/Ext.input
