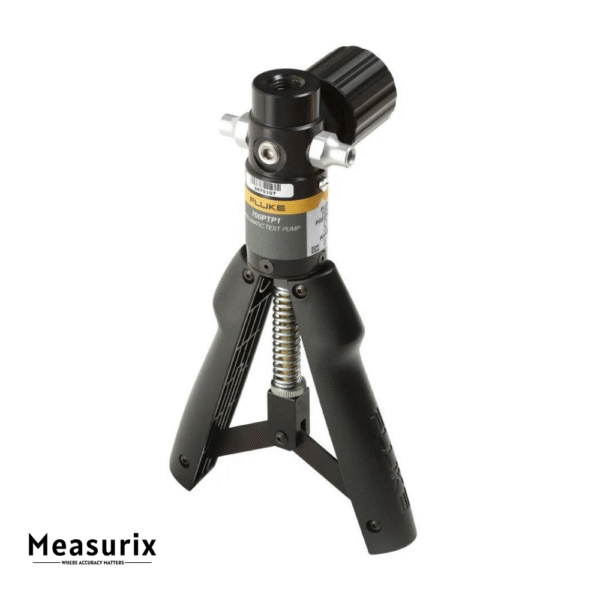

Fluke 700PTP-1 Pneumatische testpomp
The Fluke 700PTP-1 is a rugged, hand-operated pneumatic test pump capable of generating pressures up to 600 psi (40 bar). Designed for use with Fluke 700 series pressure modules and calibrators, it provides a reliable solution for calibrating transmitters, switches, and gauges with precision and ease.
Description
The Fluke 700PTP-1 Pneumatic Test Pump is built for technicians who require a dependable and efficient pressure source for calibration and testing. With the ability to generate pneumatic pressures up to 600 psi (40 bar), this hand-operated pump is ideal for calibrating pressure transmitters, switches, and gauges in both laboratory and field environments. It features two simultaneous ¼-inch NPT female pressure ports, allowing connection to both a reference device (such as a Fluke 700 series pressure module) and the unit under test, streamlining calibration processes.
The fine pressure adjuster provides precise low-pressure control and can also be used as a standalone source for low-pressure calibrations. For safety and flexibility, the adjustable stroke length lets users limit the pressure per stroke, reducing the risk of overshooting. The pump is designed for easy cleaning without disassembly and constructed with durable materials including aluminum, stainless steel, silicone, neoprene, and Buna-N for long service life. Weighing only 467 g, the 700PTP-1 is lightweight and portable, making it an excellent choice for field calibration tasks. Compatible with Fluke 700 series pressure modules, Fluke 717 pressure calibrators, and pressure gauges, this pneumatic pump provides an all-in-one solution for accurate, efficient, and repeatable pressure testing.
Features
- Generates pneumatic pressure up to 600 psi (40 bar)
- Two simultaneous ¼-inch NPT female connections: one for a reference module/gauge and one for the device under test
- Fine pressure adjuster enables precise control and can be used as a standalone low-pressure calibration source
- Adjustable stroke length to limit maximum pressure per stroke
- Easy-to-clean design without the need for disassembly
- Lightweight and portable at just 467 g (1.03 lb)
- Compact dimensions: 220 × 122 × 89 mm (8.7 × 4.8 × 3.5 in)
- Durable wetted materials: aluminum, stainless steel, silicone, neoprene, and Buna-N
- Compatible with Fluke 700 series pressure modules and Fluke 717 pressure calibrators
- Covered by a one-year warranty
Includes
- ¼ in NPT male to ¼ in BSP female
- 1 meter of hose
- (2) â…› in NPT male quick connects
- ⅛ in NPT female to ¼ in BSP female
- Seal Kit
- Instruction sheet
