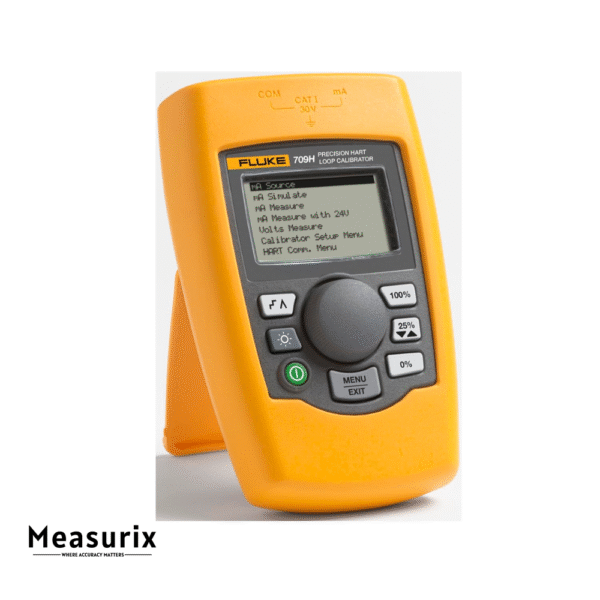

Fluke 709H Precision mA Loop Calibrator with HART Communications / Diagnostics
The Fluke 709H is a compact, high-accuracy mA loop calibrator with built-in HART communication designed for fast setup, precise measurements, and efficient troubleshooting of HART-enabled transmitters. Featuring a 0.01% reading accuracy, integrated 250 Ω HART resistor, and intuitive Quick-Set knob interface, the 709H simplifies current loop testing, calibration, and data logging in industrial environments.
Description

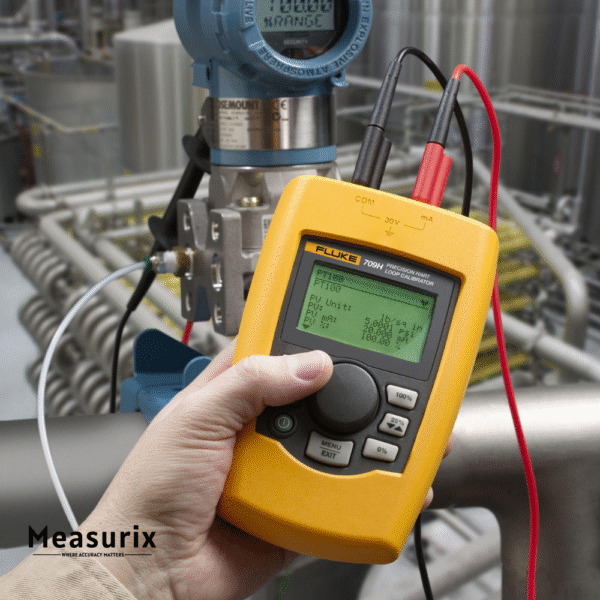

The Fluke 709H combines the functionality of a precision mA loop calibrator with HART communication capabilities, making it an essential tool for process technicians and maintenance professionals. Designed for ease of use and high performance, the 709H can source, simulate, and measure mA signals, power up loops, and communicate directly with HART-enabled devices.
Its Quick-Set rotary knob interface ensures fast navigation and setup, reducing testing and calibration time. With its built-in HART support, technicians can perform tasks such as reading device information, executing diagnostic tests, and trimming calibration on most HART transmitters — previously possible only with expensive communicators or laptops.
For data management, the optional 709H/Track software allows fast transfer of calibration data in .CSV or .TXT formats, making documentation and reporting effortless. The integrated data logging function provides a selectable capture interval from 1 to 60 seconds and a storage capacity of 9,800 records or 99 sessions, capturing detailed transmitter measurements, process variables, and status conditions for troubleshooting and loop analysis.
Built with a rugged, compact design, the 709H fits comfortably in hand and withstands tough field conditions. It offers a high-contrast backlit LCD display for visibility in low-light environments and includes a built-in 24 V DC loop power supply, eliminating the need for additional external power sources.
Features
- High-accuracy mA loop calibrator with ±0.01% reading accuracy.
- Built-in HART communication for device diagnostics, configuration, and calibration.
- Quick-Set rotary knob interface for fast, intuitive setup and operation.
- Integrated 250 Ω resistor for direct HART communications without external components.
- Data logging capability: up to 9,800 records or 99 sessions with 1–60 sec intervals.
- 709H/Track software support for calibration data transfer in .CSV / .TXT formats.
- 24 V DC loop power with simultaneous mA measurement mode.
- Compact, rugged design with ergonomic grip and protective holster.
- High-resolution display with 1 µA measurement precision and backlit LCD.
- Adjustable span and ramp functions for testing and calibration flexibility.
Includes
- Fluke 709H Precision Loop Calibrator
- (1 set) 754-8016 Alligator Clip
- (1 pair) 75X-8014 Stackable Leads
- (1 pair) TP220-4201 Test Probes
- (1 set) AC280-5001 SureGrip Hook Clips
- Soft Case
- (6)AAA Batteries (installed)
- NIST- traceable calibration report and data
- Quick Reference Guide
- 3-year warranty
