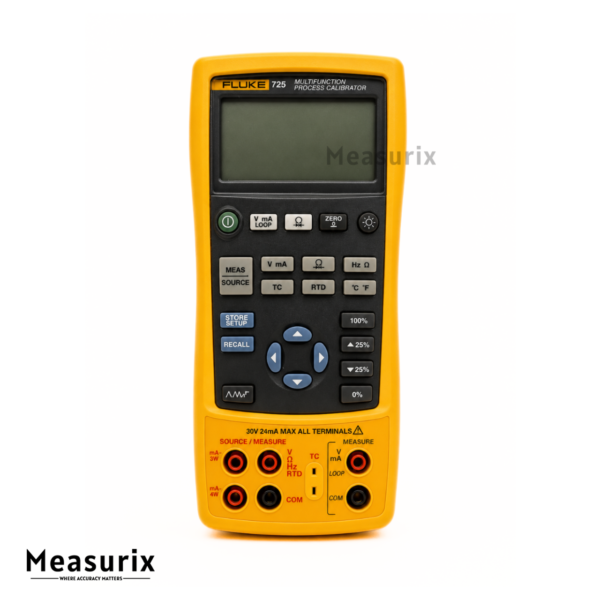

Fluke 725 Multifunction Process Calibrator
The Fluke 725 Multifunction Process Calibrator is a compact, versatile field calibrator designed for sourcing and measuring a wide range of process parameters including mA, volts, resistance, frequency, temperature, and pressure (with optional modules). With simple controls, rugged design, and built-in loop power, it is ideal for troubleshooting and calibrating transmitters, sensors, and other process devices in industrial environments.
Description
The Fluke 725 Multifunction Process Calibrator is a powerful yet easy-to-use tool for process professionals who need to measure and source virtually any process signal in the field. Engineered for flexibility, it can handle mA, voltage, frequency, ohms, RTDs, thermocouples, and pressure (via optional Fluke 750P modules), enabling calibration and testing of a wide range of devices such as transmitters, sensors, PLCs, and I/P converters.
Its intuitive interface eliminates complicated menus, making it quick to set up and operate, even in demanding environments. The backlit display improves visibility in low-light conditions, while the rugged design ensures durability in field use. The integrated 24 V loop power allows simultaneous powering and measuring of transmitters, supporting complete in-circuit or out-of-circuit testing.
With features like auto-step, auto-ramp, pulse sourcing, and fast pulse response, the Fluke 725 simplifies linearity testing, valve and I/P checks, and frequency-based flowmeter verification. For additional precision or documenting capabilities, users can upgrade to the Fluke 726 Precision Calibrator or the Fluke 754 Documenting Calibrator. Lightweight, portable, and field-ready, the Fluke 725 delivers a complete calibration solution for maintenance and troubleshooting professionals.
Features
- Sources and measures mA, volts, ohms, frequency, RTDs, and thermocouples.
- Optional Fluke 750P pressure modules extend capability up to 10,000 psi.
- Integrated 24 V loop power with simultaneous mA measurement for transmitter testing.
- Simple push-button interface with no menus, ensuring ease of use.
- Backlit display for clear readings in low-light conditions.
- Supports auto-step and auto-ramp functions for quick linearity testing.
- Can test fast pulsed RTD transmitters and PLCs with pulses as short as 10 ms.
- Compact, rugged, and lightweight design (0.65 kg) for reliable field use.
- Dedicated functions for valve and I/P testing with simultaneous current and pressure measurements.
- Powered by 4 AA batteries with easy access for replacement.

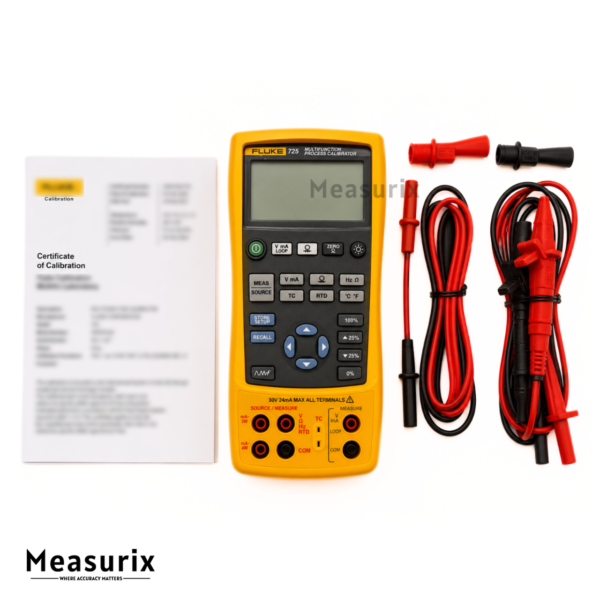

Includes
- Fluke 725 Multifunction Process Calibrator
- (1 set) AC72 alligator clips
- (1 pair) stackable test leads
- (1 pair) TL75 test leads
- NIST- traceable calibration report and data
- Quick Reference Guide
- 3-year warranty
