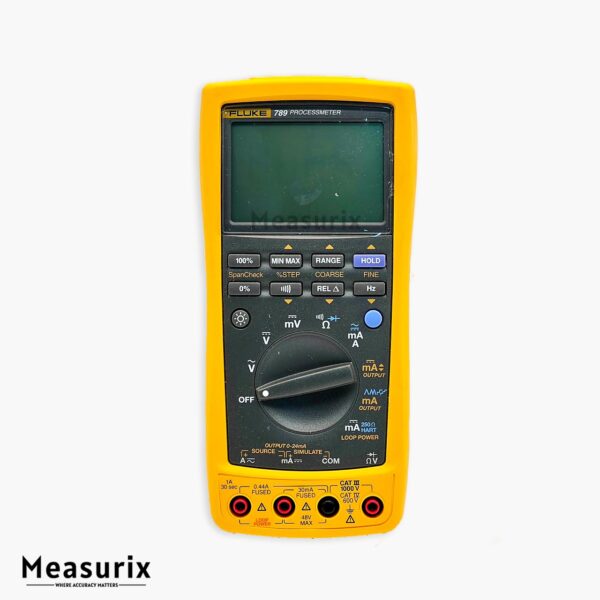

Fluke 789 ProcessMeter™
The Fluke 789 ProcessMeter™ is a compact, all-in-one troubleshooting tool that combines a full-featured digital multimeter (DMM) with a loop calibrator, offering 24 V loop power, HART® resistor support, and optional wireless connectivity. Designed for electricians and instrumentation professionals, it simplifies testing, sourcing, and simulating 4–20 mA signals, while providing accurate measurements for voltage, current, resistance, and frequency in industrial control loops.
Description
The Fluke 789 ProcessMeter™ is the ultimate tool for process and instrumentation troubleshooting. It merges the power of a CAT III 1000 V / CAT IV 600 V rated digital multimeter with a robust mA loop calibrator, enabling technicians to measure, source, and simulate 4–20 mA signals with ease. Its large dual display with backlighting allows simultaneous viewing of mA and percentage of span for faster diagnostics, while the built-in selectable 250-ohm HART® resistor eliminates the need to carry a separate resistor.
With the built-in 24 V loop supply, offline transmitter testing becomes simple and portable. The device supports SpanCheck and 0/100% toggles, allowing rapid switching between 4 mA and 20 mA for precise calibration and troubleshooting. Optional Fluke Connect™ wireless logging enables remote monitoring and data recording using the IR3000FC module.
The 789 offers complete DMM functionality including true-RMS voltage, AC/DC current, resistance up to 40 MΩ, diode test, continuity beeper, and frequency measurements to 20 kHz. With high accuracy—0.1% DC voltage and 0.05% DC current—it ensures reliable readings for every control loop task. Compact and rugged, it withstands industrial environments with 1-meter drop protection, shock and vibration resistance, and long-lasting battery operation.
Ideal for control loop troubleshooting, calibration, and maintenance, the Fluke 789 significantly reduces the number of instruments technicians need to carry while increasing efficiency and accuracy in the field.
Features
- Combines digital multimeter and mA loop calibrator in one compact device.
- Built-in 24 V loop power for offline transmitter testing.
- Selectable 250-ohm HART® resistor eliminates the need for external resistors.
- Large, dual backlit display for simultaneous mA and % of span readings.
- Measures and sources 4–20 mA and 0–20 mA signals with 1200 Ω drive capability.
- Full DMM functionality: voltage, current, resistance, frequency, diode test, continuity.
- Supports SpanCheck, auto step, auto ramp, and 0/100% toggles for fast loop troubleshooting.
- Optional Fluke Connect™ wireless logging with IR3000FC module for remote monitoring.
- High accuracy: 0.1% DC voltage, 0.05% DC current, frequency to 20 kHz.
- Rugged and portable: 1-meter drop, vibration/shock resistant, long battery life (140 hours typical).
Includes
- Fluke 789 ProcessMeter
- (1 set) AC175 Alligator Clips
- (1 set) TL71 test lead set
- (4) AA 1.5 V alkaline batteries (installed)
- Quick Reference Guide
- 3-year warranty
