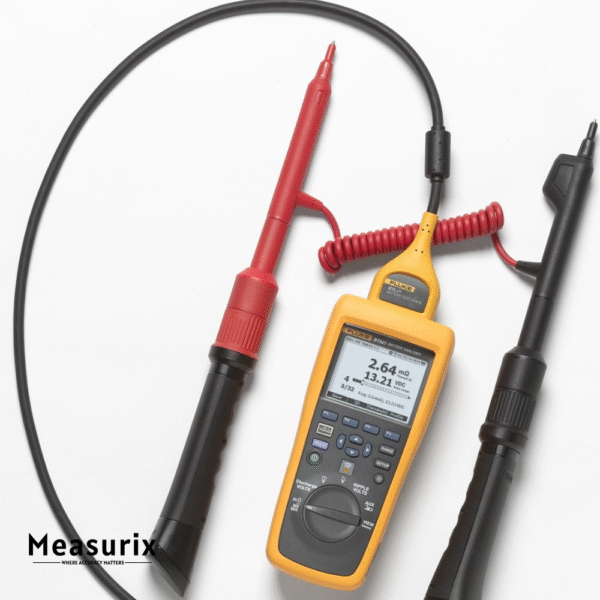

Fluke BT521 Advanced Battery Analyzer with intelligent test probe set
The Fluke BT521 is a professional-grade battery analyzer designed for maintenance, troubleshooting, and performance testing of individual batteries and battery banks in critical backup systems. Featuring intelligent test probes with integrated temperature measurement, automatic logging, and wireless data transfer, it streamlines battery testing while ensuring accurate, reliable results.
Description
The Fluke BT521 Advanced Battery Analyzer delivers a comprehensive solution for evaluating stationary batteries in commercial, industrial, and critical power applications. With the BTL21 intelligent test probes, users can measure DC/AC voltage, DC/AC current, ripple voltage, frequency, resistance, and temperature in a single workflow. The analyzer offers automatic or manual sequence measurement, storing results including voltage, resistance, and temperature without needing to press a button for each reading.
The analyzer supports comprehensive logging, allowing all measured values to be reviewed on the instrument before downloading for detailed analysis on a PC. With Fluke Battery Management Software, users can track historical trends, generate reports, switch between conductance and resistance readings, and manage multiple battery profiles efficiently. Additionally, the BT521 provides wireless communication via the Fluke Battery Analyzer mobile app for remote display, profile review, and emailing results in CSV format.
Built with a rugged, compact design and intuitive interface, the BT521 ensures reliable operation in challenging environments. Its voltage and resistance thresholds allow users to set limits for PASS, FAIL, or WARN indicators, giving instant visual feedback during testing. The analyzer also supports temperature monitoring via integrated infrared sensors, enhancing performance assessments for critical battery systems.
Features
- Measures internal resistance, DC/AC voltage, DC/AC current, ripple voltage, frequency, and temperature
- Automatic or manual sequence testing with auto-storage of results
- Intelligent test probes (BTL21) with built-in LCD, speaker, and infrared temperature sensor
- Comprehensive logging with review on instrument before download
- Compatible with Fluke Battery Management Software for trend analysis, reporting, and profile management
- Wireless communication via Fluke Battery Analyzer mobile app
- Threshold-based PASS/FAIL/WARN indications for quick evaluation
- Rugged, compact design suitable for industrial environments
- Supports up to 100 battery profiles and templates, each storing up to 450 batteries
- USB mini interface for data transfer
- IP40 rated with drop and vibration resistance
Includes
- Battery analyzer
- 4-wire test pin (set)
- BTL10 Basic Test Lead (set)
- TL175 TwistGuardâ„¢ Test Leads with adapter
- BTL21 Intelligent Test Probe Set, with extender and temperature sensor
- i410 AC/DC Current Clamp
- BP500 lithium-ion battery
- BC500 AC charger
- mini-USB cable
- Shoulder strap
- Belt strap
- Magnetic hanging strap
- FlukeView® Battery Management Software
- Soft carrying case
- Spare fuses (2)
- Battery tags
- Zero Ohm Calibration Resistor
