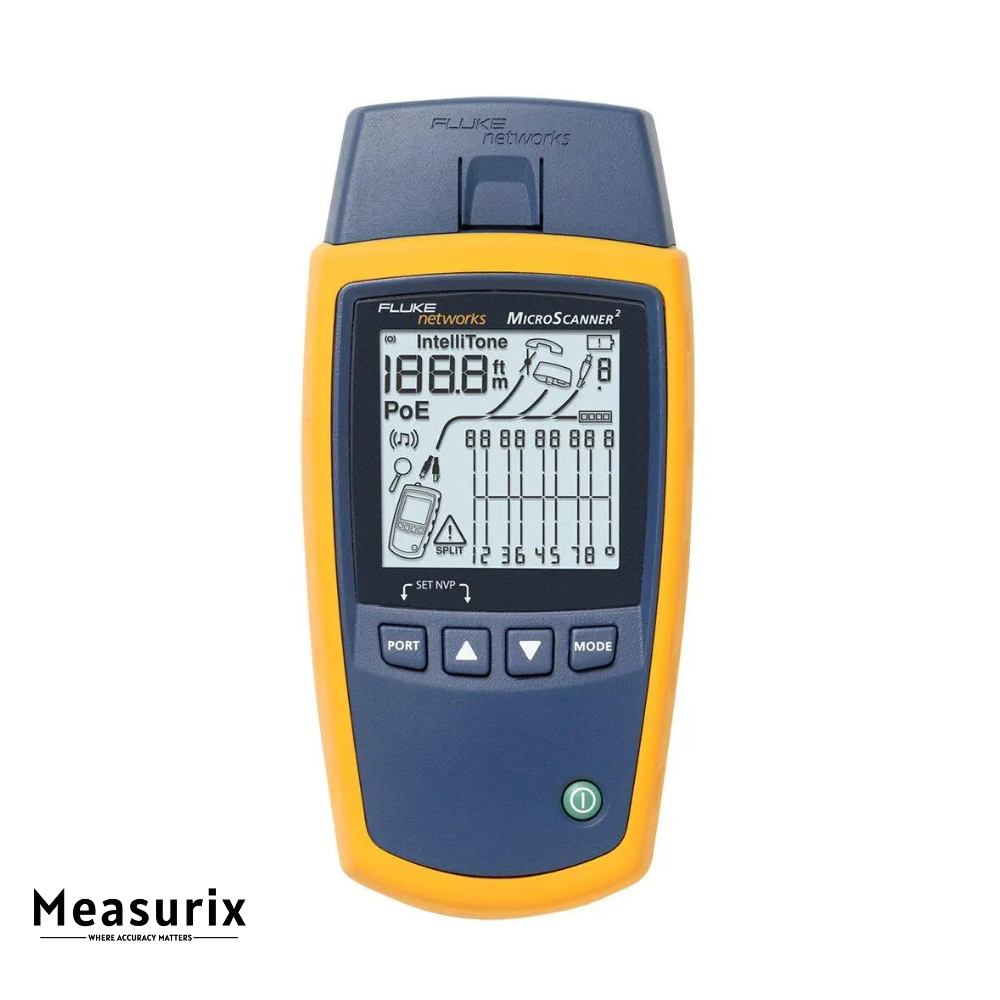

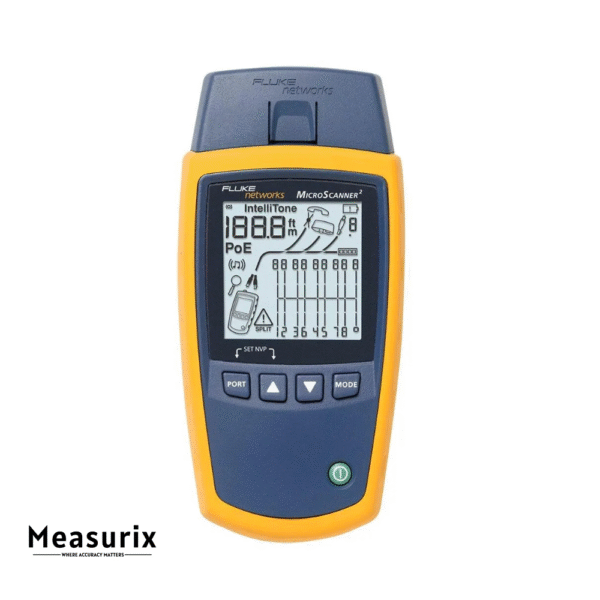

Fluke Networks MicroScanner™ 2 Industrial Ethernet Cable Verifier

The Fluke Networks MicroScanner™ 2 Industrial Ethernet Cable Verifier (MS2-100-IE) delivers fast and accurate testing for a wide range of cable types used in industrial Ethernet environments. Designed for quick troubleshooting, it performs continuity tests, measures cable length, and identifies opens, shorts, miswires, split pairs, and distance to faults within seconds.

Supporting RJ45, M12X, M12D, M8D, RJ11, and coaxial connectors, the device provides exceptional versatility for modern industrial systems. Its graphical LCD interface displays a complete wiremap along with distance-to-fault measurements, allowing technicians to quickly pinpoint issues and minimize costly production downtime.

With built-in IntelliTone™ digital and analog toning, the tester makes cable tracing simple, even in environments where multiple cables are active. It also verifies PoE availability (IEEE 802.3af) and detects Ethernet speeds up to 1 Gbps, ensuring network readiness for industrial automation systems.

Designed for reliability, the MicroScanner™ 2 features a rugged, drop-tested design with a backlit display for clear visibility in dark or challenging environments. It comes with a complete kit including multi-connector adapters, patch cords, and accessories for maximum testing flexibility.

Features

• Comprehensive Cable Testing – Verifies continuity, wiremap, cable length, distance-to-fault, and identifies miswires, split pairs, and open circuits.
• Industrial Connector Support – Tests RJ45, RJ11, coax, M12X, M12D, and M8D connectors, making it ideal for industrial Ethernet systems.
• PoE Detection – Identifies the presence of IEEE 802.3af Power over Ethernet (PoE) devices to ensure proper power delivery for connected equipment.
• Ethernet Speed Verification – Detects supported Ethernet port speeds including 10 Mbps, 100 Mbps, and 1 Gbps for quick network validation.
• Graphical Wiremap Display – Shows a visual representation of wiring and highlights faults with proportional distance accuracy, simplifying troubleshooting.
• Built-in IntelliTone™ Digital & Analog Toning – Precisely locates and traces cables, even on live or active networks.
• Backlit LCD Screen – Ensures clear visibility of test results in low-light or industrial environments.
• Wide Cable Compatibility – Supports UTP, FTP, SSTP, and coaxial cables (75 Ω, 50 Ω, 93 Ω), making it suitable for diverse installations.
• Fast & Accurate Measurements – Measures up to 460 m (1,500 ft) with ±4% typical accuracy and 0.3 m (1 ft) resolution for precise diagnostics.
• Rugged Industrial Design – Built to withstand 1-meter drops, harsh environments, and heavy-duty usage in manufacturing plants and industrial networks.

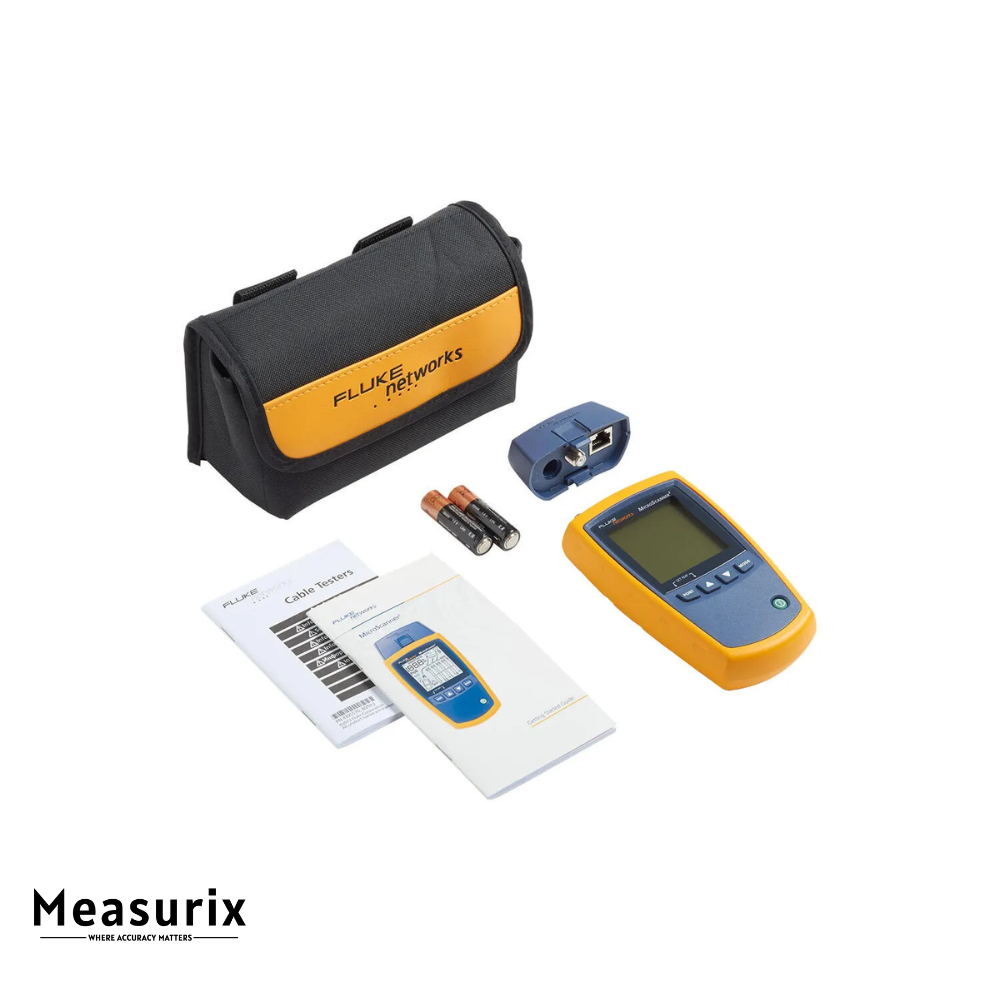

Includes

• MicroScanner™ 2 Industrial Ethernet Basic Kit with Duffle Bag
• Multi-Connector Adapter
• Cat6A patch cord
• RJ45 male to RJ45 female patch cord
• RJ45/M12X patch cord
• RJ45/M12D patch cord
• RJ45/M8D patch cord for testing of M12X
• M12D
• M8D terminated cables
