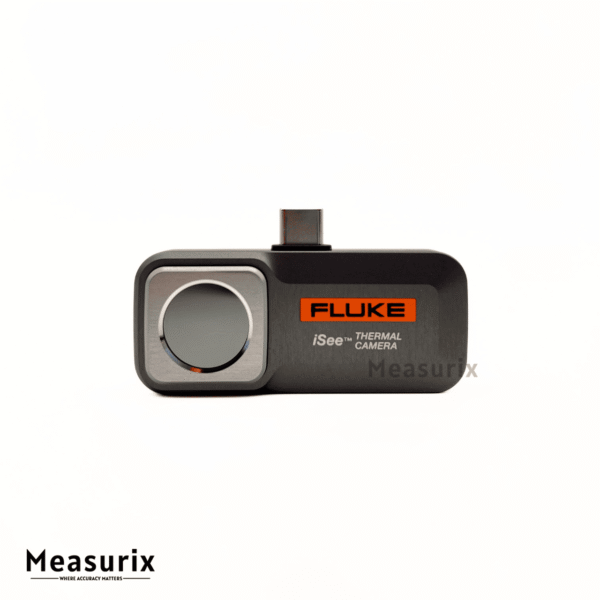

Fluke TC01C iSee™ Mobile Thermal Camera

The Fluke iSee™ mobile thermal camera brings advanced infrared imaging power into your pocket. At just 22 g and easily plugging into your mobile device via USB-C (for the TC01C variant), it transforms your smartphone into a capable thermal imager. With a 256 × 192 thermal resolution, the unit delivers detailed imagery that previously belonged only to high-end standalone cameras. Thermal sensitivity is at 50 mK (0.05 °C), enabling detection of subtle temperature differentials, while accuracy is specified at ±2 % of reading or ±2 °C (whichever is greater) under reference conditions. The device supports a temperature measurement range from as low as -10 °C (in some models) or -20 °C (in others) up to 550 °C (1022 °F) — covering a wide gamut of applications from electrical panels, bearing checks, HVAC and under-floor heating systems to building diagnostics. The 25 Hz frame rate ensures smooth live‐video thermal scanning, and the wide 56° × 42° field of view lets you capture larger scenes quickly.

Beyond raw thermal data, the supporting iSee app offers professional features: real-time high/low temperature capture, spot/line/area measurement modes, automatic time-lapse photography, adjustable emissivity for varied materials, visible and IR image comparison, annotation and sharing options, and even automatic report generation (on some models). The device is built for durability — housed in a treated aluminium body, drop-tested from 1 m, and rated IP56 (for the TC01B/TC01C) or IP54 (TC01A) for ingress protection. Start-up is almost instantaneous, making it highly suited for mobile inspection work where speed, portability and connectivity matter.

Features

• 256 × 192 pixel thermal image resolution for clear infrared details.

• 25 Hz frame rate for smooth live-video thermal imaging, avoiding lag in inspections.

• Wide temperature measurement range: up to 550 °C (1022 °F), with lower bound down to -10 °C or -20 °C depending on model.

• High thermal sensitivity of 50 mK (0.05 °C) for detecting subtle temperature differences.

• Accuracy of ±2 % or ±2 °C (whichever is greater) under typical ambient conditions.

• Compact and lightweight design (around 22 g) which makes it highly portable.

• Plug-in smartphone compatibility (Type-C or Lightning connector depending on variant) and support via a mobile app with annotations, sharing and reporting tools.

• Adjustable emissivity, spot/line/area temperature analysis, real‐time high/low capture, time-lapse mode and visible/IR overlay for comprehensive diagnostics.

• Durable build: aluminium housing, drop-tested to 1 m, ingress protection rating of IP56 (for TC01C) or IP54 (for TC01A) for field-use robustness.

• Wide field of view (56° × 42°) allowing efficient coverage of larger inspection areas.

Includes

• 1 – iSee Mobile Thermal Imaging Camera for Apple/iOS Devices, Type-C USB Interface, 25 Hz (TC01C-25HZ)
• 1 – User Manual
