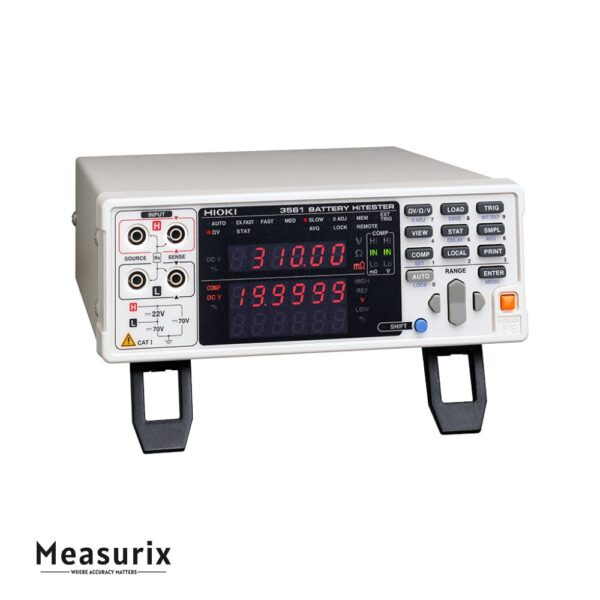

Hioki 3561 Battery HiTester

The Hioki 3561 is engineered for use in automated production environments to test small secondary batteries rapidly and accurately. It uses a four-terminal AC method to measure internal resistance (IR) while simultaneously measuring battery voltage (OCV). The unit offers two resistance measurement ranges (300 mΩ and 3 Ω) and a voltage measurement range up to 20 V, with fine resolution and precision. Its measurement cycle is very fast (approx. 3 ms response time) to keep up with high throughput. The 3561 supports external triggering, comparator judgments (Hi/Lo/In), and standard interfaces (RS-232C, external I/O). It includes memory capability for storing up to 400 measurement results, and features like averaging, zero adjustment, and statistical processing help maintain consistent quality control.

Features

• Simultaneous IR & Voltage Measurement – Measures internal resistance and open-circuit voltage at the same time.
• Resistance Ranges – 300 mΩ (with 10 µΩ resolution) and 3 Ω (with 100 µΩ resolution).
• Voltage Range – Up to ±20 V DC, with resolution of 0.1 mV.
• High-Speed Operation – Delivers very fast response, around 3 ms per measurement cycle.
• Accuracy – Resistance: ±0.5 % of reading ± 5 digits; Voltage: ±0.01 % of reading ± 3 digits.
• Comparator / Judgment Functions – Allows upper/lower limit settings and Hi/Lo/In judgments for resistance and voltage; supports composite PASS/FAIL logic.
• Interfaces & Triggering – Provides external I/O, RS-232C, and optional GP-IB interface with external trigger capability.
• Memory & Data Handling – Stores up to 400 measurement results; includes averaging, statistical processing, and configuration storage.
• Compact & Durable Design – Dimensions: approximately 215 × 80 × 295 mm; weight about 2.4 kg.

Includes

• Instruction manual × 1
• Power cord × 1
