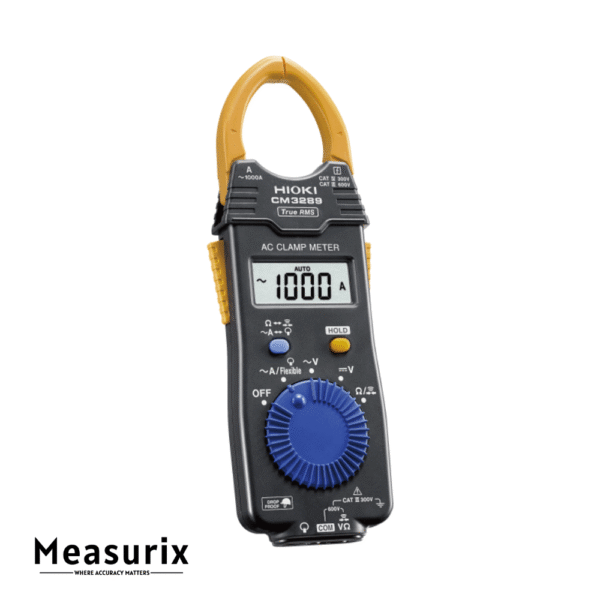

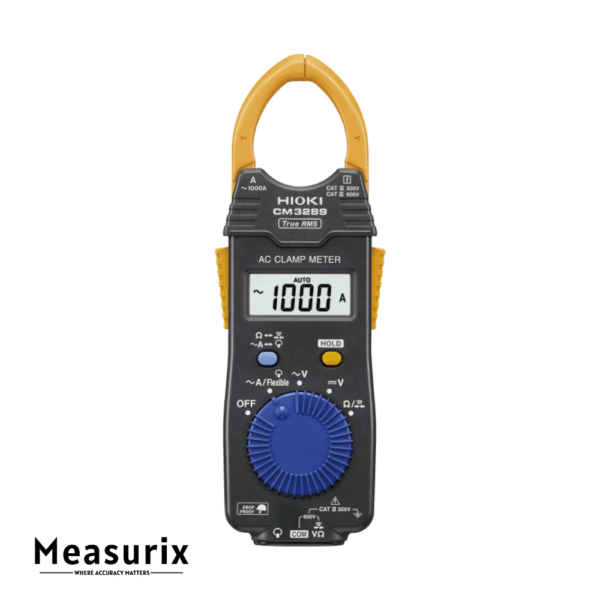

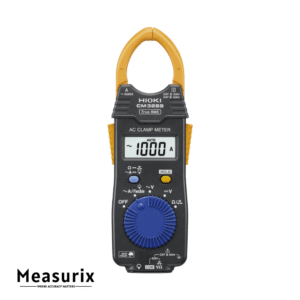

Hioki CM3289 AC Clamp Meter
The Hioki CM3289 is a compact, True RMS AC clamp meter designed for precise current and voltage measurements in confined spaces. With a 1000 A AC current measurement capability, it features a lower-profile sensor for easier access in tight areas. Its broad operating temperature range and rugged design make it suitable for various industrial applications.
Description
The Hioki CM3289 AC Clamp Meter is engineered to provide accurate and reliable measurements in challenging environments. It offers True RMS rectification for precise current measurements up to 1000 A AC, ensuring accuracy even with distorted waveforms. The meter’s redesigned, lower-profile sensor allows for easy clamping in confined spaces, making it ideal for crowded panels and tight installations. Its broad operating temperature range of -25°C to 65°C ensures functionality across diverse climates. Additionally, the CM3289 is compatible with the optional CT6280 flexible current sensor, enabling measurements in complex or densely packed wiring scenarios. The meter’s rugged design includes drop resistance up to 1 meter, ensuring durability in demanding field conditions. Beyond current measurement, it also supports AC and DC voltage measurements, resistance checks, and continuity testing, offering versatility for comprehensive electrical diagnostics.
Features
- True RMS Measurement: Ensures accurate readings for distorted waveforms, such as those from inverters or switching power supplies.
- High Current Measurement: Capable of measuring AC currents up to 1000 A, suitable for a wide range of applications.
- Lower-Profile Sensor: Redesigned sensor allows for easy clamping in confined spaces, enhancing usability in tight installations.
- Wide Operating Temperature Range: Functions effectively in temperatures from -25°C to 65°C, ideal for various environmental conditions.
- Flexible Current Sensor Compatibility: Compatible with the optional CT6280 flexible current sensor, enabling measurements in complex or densely packed wiring scenarios.
- Rugged Design: Drop-resistant up to 1 meter, ensuring durability in the field.
- Multiple Measurement Functions: Offers AC and DC voltage, resistance, and continuity testing, providing versatility for comprehensive electrical diagnostics.
- Compact and Lightweight: Weighs only 100 g, making it easy to handle and carry.
- Safety Ratings: Complies with CAT IV 300 V and CAT III 600 V safety standards, ensuring user protection.
- Long Battery Life: Operates continuously for up to 70 hours on a single CR2032 coin-type battery.
Includes
- CARRYING CASE 9398 × 1
- TEST LEAD L9208 × 1
- Coin type lithium battery (CR2032) × 1
- Instruction manual × 1
