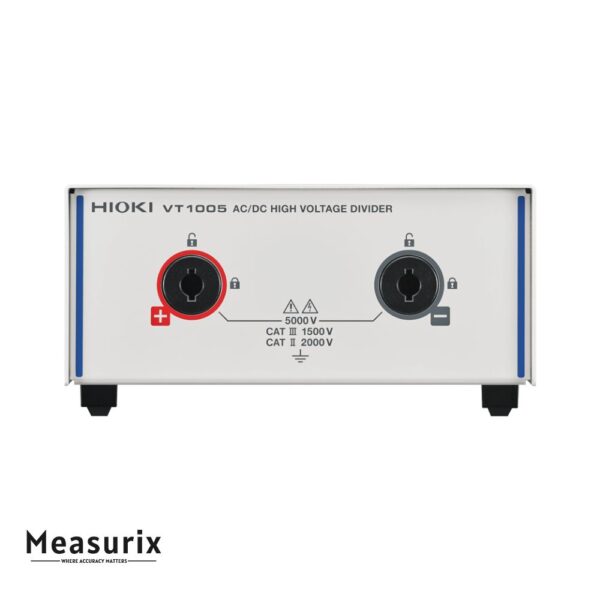

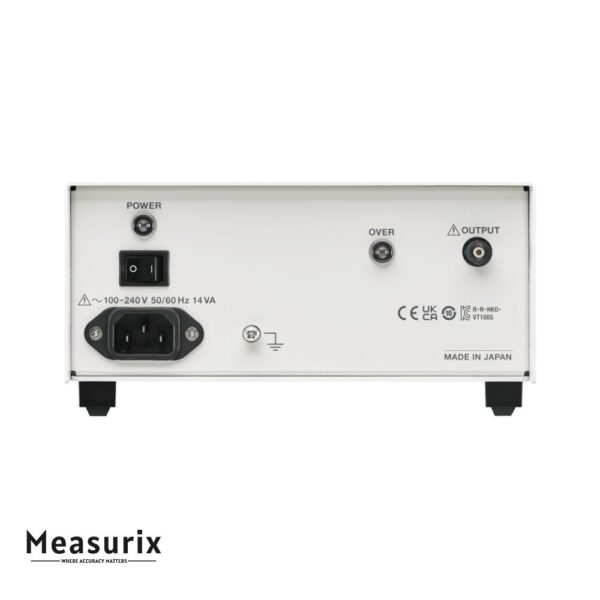

Hioki VT1005 AC/DC High Voltage Divider

The VT1005 is a high-performance AC/DC voltage divider designed to enable accurate measurement of high voltages using standard power analyzers or similar instruments. It accepts input voltages up to 5000 V RMS (and ±7100 V peak), which are scaled down by a factor of 1000:1 so that the analyzer only sees a much lower voltage. It covers a broad frequency range, from DC up to 4 MHz (-3 dB point), with especially flat amplitude response up to ~200 kHz and tight phase accuracy up to ~500 kHz. The device is built with differential input wiring to resist common-mode noise, with a high common-mode rejection ratio. It meets safety and environmental operating requirements for temperature and humidity; it’s reasonably compact and comes with insulated connection cords and adapters to link to analyzers. The high accuracy (both amplitude and phase) makes it suitable for measuring the efficiency of inverters and other devices where switching frequencies, harmonics, or fast transitions matter, as well as for evaluating losses in high-voltage components.

Features

• Maximum input voltage ~5000 V RMS (±7100 V peak).
• Voltage division ratio 1000:1.
• Excellent measurement accuracy: about ±0.08% at DC; ±0.04% at 50/60 Hz; ±0.17% at 50 kHz.
• Wide frequency bandwidth: DC up to 4 MHz (-3 dB).
• Flat amplitude response (~±0.1%) up to ~200 kHz; tight phase error (~±0.1°) up to ~500 kHz.
• High common-mode noise rejection (CMRR ~80 dB at 100 kHz).
• Differential input method to reduce error from external noise.
• Defined safety ratings for measurement categories (e.g. CAT II, CAT III for lower category limits).
• Operates in a temperature/humidity range suitable for laboratory or field work, non-condensing.
• Includes insulated cords and adapters to interface safely with power analyzers.

Includes

• L1050-01 Voltage Cord ×1 (1.6 m/ 5.25 ft)
• L9217 Connection Cord ×1 (insulated BNC, 1.6 m/ 5.25 ft)
• 9704 Conversion Adapter ×1 (insulated-female BNC-to-banana plug)
• Power cord ×1
