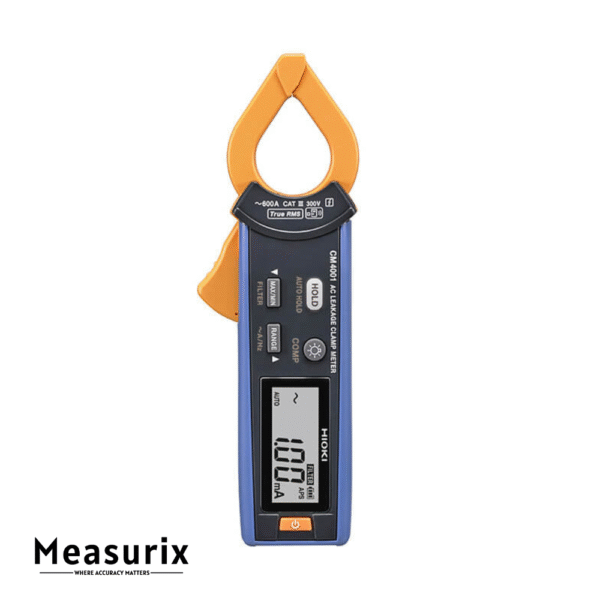

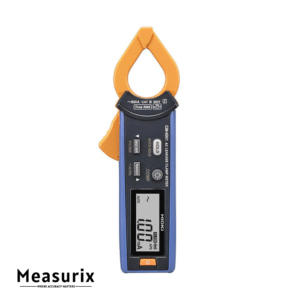

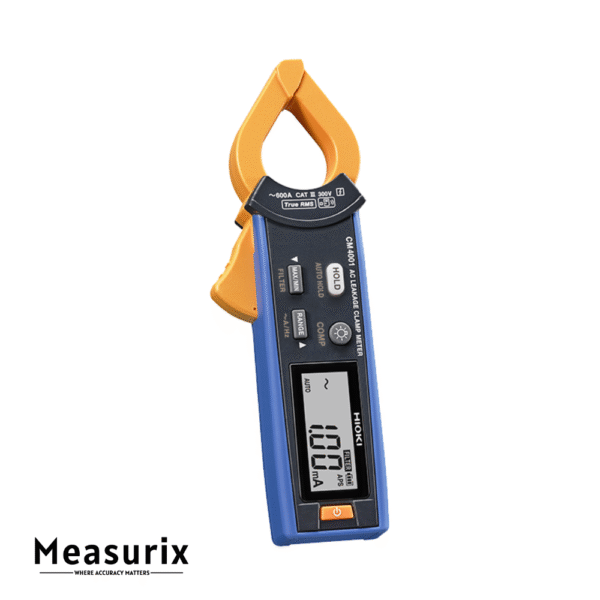

Hioki CM4001 AC Leakage Clamp Meter
The Hioki CM4001 is a True RMS AC leakage clamp meter designed for precise measurement of both leakage and load currents. It offers a measurement range from 0.60 mA to 600.0 A and features a slim jaw design with a 24 mm core diameter, allowing easy access to tight spaces. The meter includes advanced functions such as a comparator for quick pass/fail judgments, a filter to eliminate unwanted noise, and wireless data transfer capabilities via the optional Z3210 Bluetooth® adapter.
Description
The Hioki CM4001 AC Leakage Clamp Meter is engineered to provide accurate and reliable measurements of AC leakage currents, making it an essential tool for electrical maintenance and safety inspections. With a measurement range extending from 0.60 mA to 600.0 A, it accommodates a broad spectrum of current levels, from tiny leakage currents to substantial load currents. The meter’s advanced sensor design features a core jaw diameter of up to 24 mm, enabling precise detection of even the smallest leakage currents. Its True RMS measurement capability ensures accurate readings across a wide frequency range of 40 Hz to 1 kHz, accommodating various signal types. The CM4001 also includes a built-in comparator function to facilitate quick pass/fail judgments during inspections. For enhanced data management, the meter can wirelessly transmit measurement data to smartphones or tablets using the optional Z3210 Wireless Adapter and the GENNECT Cross app, allowing for easy data logging and analysis. Designed with user convenience in mind, it features a white backlit display for clear visibility in various lighting conditions and complies with international safety standards, including CAT III 300 V ratings.
Features
- Wide Measurement Range: Measures AC currents from 0.60 mA to 600.0 A, covering both leakage and load currents.
- True RMS Measurement: Ensures accurate readings across a broad frequency range of 40 Hz to 1 kHz.
- Advanced Sensor Design: Features a core jaw diameter of up to 24 mm for precise detection of small leakage currents.
- Built-in Comparator Function: Facilitates quick pass/fail judgments during inspections.
- Wireless Data Transmission: Transmits measurement data to smartphones or tablets using the optional Z3210 Wireless Adapter and GENNECT Cross app.
- Filter Function: Eliminates unwanted noise, allowing measurements close to the 50/60 Hz fundamental frequency.
- Convenient Operation: Includes white backlight, measured value hold, auto hold, and auto power off features.
- Data Logging Capabilities: Retains maximum, minimum, and average RMS current values for easier analysis of potential problems.
- Waveform Peak Value Measurement: Captures intermittent or transient events for comprehensive analysis.
- Inrush Current Measurement: Helps locate equipment startup problems by measuring inrush currents.
Includes
- Carrying case × 1, Strap × 1
- Instruction manual × 1
- Operating Precautions × 1
- LR03 alkaline battery × 1
