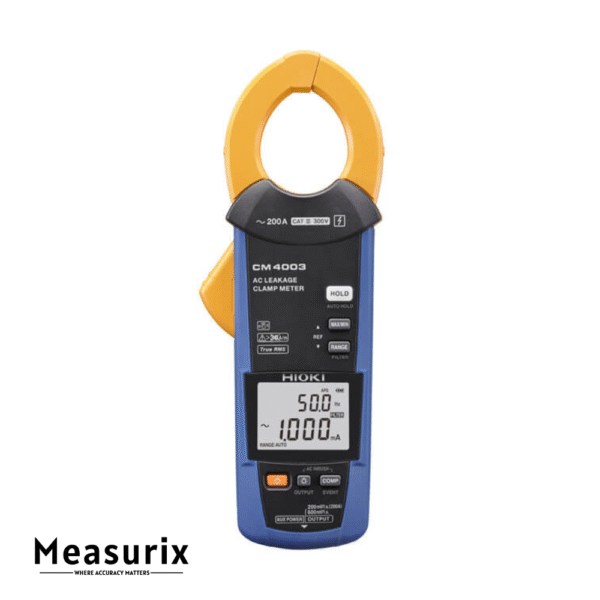

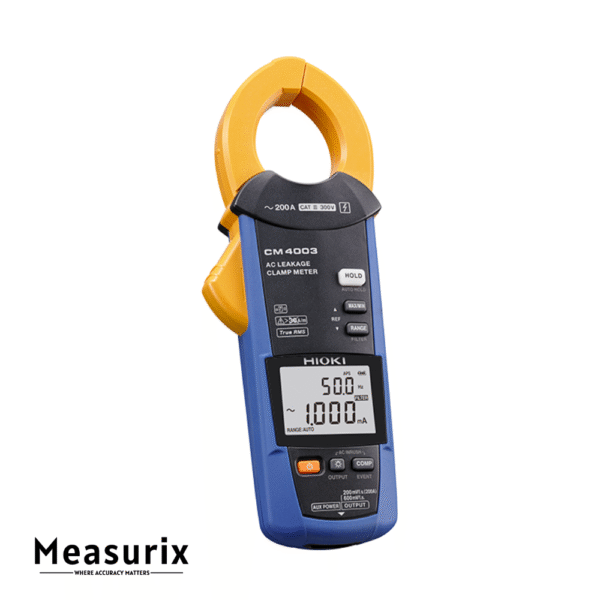

Hioki CM4003 AC Leakage Clamp Meter (With Output And External Power Supply Function)
The Hioki CM4003 is a True RMS AC leakage clamp meter designed to measure both minute leakage currents and larger load currents, with a range from 0.060 mA to 200 A. It features a core jaw diameter of up to 40 mm, enabling precise detection of small leakage currents. The meter complies with IEC/EN 61557-13 standards and offers advanced functions such as waveform/RMS output, external power supply capability, and wireless data transmission via the optional Z3210 Bluetooth® adapter.
Description
The Hioki CM4003 AC Leakage Clamp Meter is engineered for professionals requiring accurate and reliable measurement of AC leakage currents in industrial and commercial settings. With a measurement range extending from 0.060 mA to 200 A, it accommodates a broad spectrum of current levels, from tiny leakage currents to substantial load currents. The meter’s advanced sensor design features a core jaw diameter of up to 40 mm, allowing for precise detection of even the smallest leakage currents. Its True RMS measurement capability ensures accurate readings across a wide frequency range of 15 Hz to 2000 Hz, accommodating various signal types. The CM4003 also includes a built-in comparator function to facilitate quick pass/fail judgments during inspections. For enhanced data management, the meter can wirelessly transmit measurement data to smartphones or tablets using the optional Z3210 Wireless Adapter and the GENNECT Cross app, allowing for easy data logging and analysis. Additionally, the CM4003 offers an output function for waveform and RMS signal recording, and supports continuous, long-term measurement through an external power supply, making it ideal for monitoring applications that require extended data collection periods.
Features
- Wide Measurement Range: Measures AC currents from 0.060 mA to 200 A, covering both leakage and load currents.
- True RMS Measurement: Ensures accurate readings across a broad frequency range of 15 Hz to 2000 Hz.
- Advanced Sensor Design: Features a core jaw diameter of up to 40 mm for precise detection of small leakage currents.
- Built-in Comparator Function: Facilitates quick pass/fail judgments during inspections.

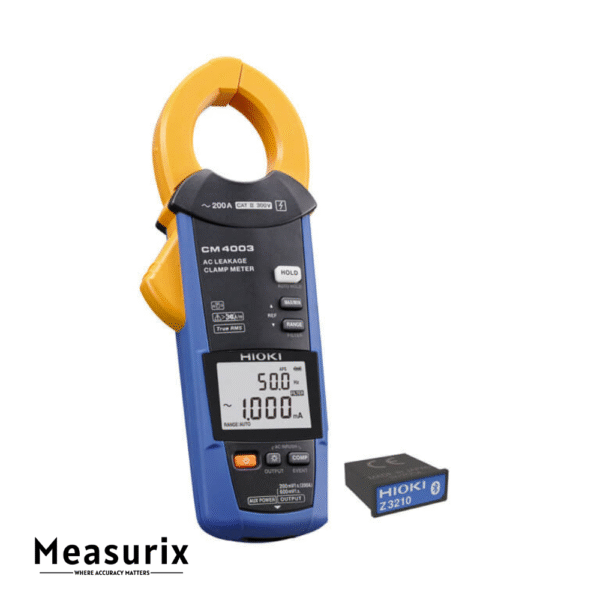

- Wireless Data Transmission: Transmits measurement data to smartphones or tablets using the optional Z3210 Wireless Adapter and GENNECT Cross app.
- Waveform/RMS Output Function: Allows for recording of waveforms and fluctuations when used with a recorder.
- External Power Supply Capability: Supports continuous, long-term measurement through an optional AC adapter.
- Dual Display: Simultaneously displays current values and frequencies for comprehensive monitoring.
- Auto Hold Function: Detects and holds stable measured values, allowing for more reliable readings.
- Compliance with Safety Standards: Meets IEC/EN 61557-13 standards, ensuring safe operation in electrical measurements.
Includes
- Connection Cable L9097 × 1
- USB Cable × 1, Carrying case C0203 × 1
- Instruction manual × 1
- Operating Precautions × 1
- AA-size alkaline battery (LR6) × 2
