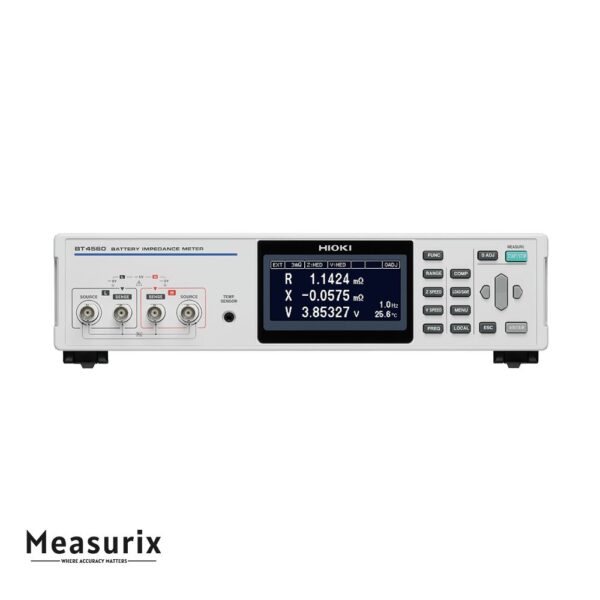

Hioki BT4560 Battery Impedance Meter
The Hioki BT4560 is a high-precision battery impedance meter designed for evaluating the internal resistance of high-capacity batteries, such as those used in electric vehicles (EVs) and energy storage systems (ESS). Utilizing low-frequency AC signals, it provides accurate and rapid measurements without the need for battery charging or discharging, making it ideal for quality control and research applications.
Description
The Hioki BT4560 Battery Impedance Meter is engineered to measure the internal impedance of batteries using Electrochemical Impedance Spectroscopy (EIS) techniques. Operating at low frequencies ranging from 0.01 Hz to 1.05 kHz, it delivers detailed insights into battery characteristics without the need for charging or discharging cycles. This capability significantly reduces testing time and enhances throughput in manufacturing and research environments.
The meter offers multiple measurement ranges, including 3 mΩ, 10 mΩ, and 100 mΩ, with corresponding test currents of 1.5 A, 500 mA, and 50 mA, respectively. It measures various parameters such as resistance (R), reactance (X), impedance (Z), and phase angle (θ), providing a comprehensive analysis of battery health and performance.
Equipped with a 5V DC voltage measurement capability, the BT4560 ensures compatibility with a wide range of battery types. It also features simultaneous measurement of impedance, voltage, and temperature, facilitating a holistic assessment of battery conditions. The device’s high accuracy, with impedance measurements accurate to ±0.4% and voltage measurements to ±0.0035%, ensures reliable data for quality control and research purposes.
The BT4560 supports various communication interfaces, including LAN, USB, RS-232C, and external I/O, allowing for seamless integration into automated testing systems. Its user-friendly interface and compact design make it suitable for both laboratory and production line environments.
Features
- Low-Frequency AC Measurement: Measures battery impedance using low-frequency AC signals, eliminating the need for charging or discharging cycles.
- Multiple Measurement Ranges: Offers three measurement ranges (3 mΩ, 10 mΩ, and 100 mΩ) with corresponding test currents of 1.5 A, 500 mA, and 50 mA, respectively.
- Comprehensive Parameter Measurement: Measures resistance (R), reactance (X), impedance (Z), and phase angle (θ) for a detailed analysis of battery health.
- Simultaneous Measurement: Capable of measuring impedance, voltage, and temperature simultaneously, providing a holistic assessment of battery conditions.
- High Accuracy: Provides impedance measurements with an accuracy of ±0.4% and voltage measurements with an accuracy of ±0.0035%.
- Wide Voltage Compatibility: Supports a maximum DC voltage measurement of 5V, accommodating a variety of battery types.
- Advanced Communication Interfaces: Equipped with LAN, USB, RS-232C, and external I/O interfaces for seamless integration into automated testing systems.
- User-Friendly Interface: Features a clear and intuitive interface for ease of operation in both laboratory and production environments.
- Compact Design: Designed to fit into standard 19-inch racks, saving space in laboratory and production settings.
- Comprehensive Software Support: Includes evaluation application software for R&D use, facilitating data analysis and reporting.
Includes
- Power cord × 1
- instruction manual × 1
- zero-adjustment board × 1
- USB cable (A-B type) × 1
- CD-R (comes with communication instruction manual
- PC application software
- USB driver) × 1
