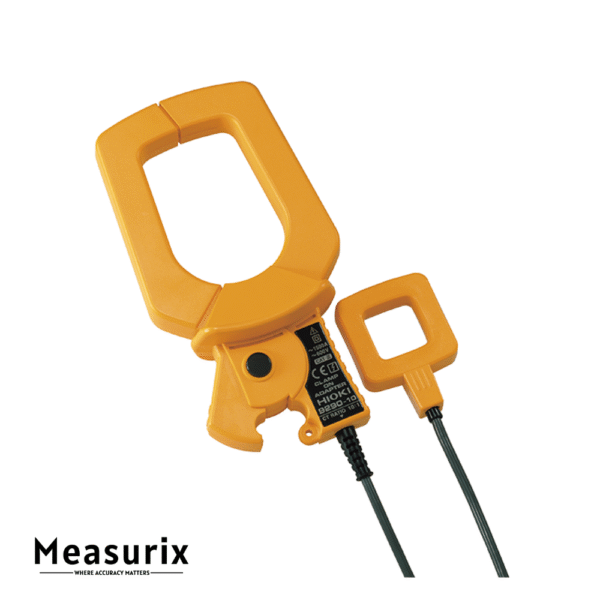

Hioki 9290-10 Clamp On Adapter

The Hioki 9290-10 Clamp-On Adapter is engineered to meet the needs of professionals requiring precise measurement of high AC currents. Operating with a 10:1 CT ratio, it allows standard clamp meters to measure primary currents up to 1500 A AC (with continuous operation up to 1000 A). This capability is essential for applications in power distribution, industrial machinery, and large-scale electrical systems. The adapter features a wide frequency response from 20 Hz to 5 kHz, ensuring accurate measurements across a broad spectrum of electrical signals. Its excellent phase accuracy of ±1.0° ensures precise power calculations, even in complex waveforms. The adapter’s robust construction, with a core jaw diameter of 55 mm or 80 mm, accommodates a variety of conductor sizes, enhancing its versatility. Designed for ease of use, it includes a 3-meter cable and is compatible with Hioki’s range of clamp meters, expanding their measurement capabilities.

Features

• High Current Measurement: Measures primary currents up to 1000 A AC continuously, with a maximum of 1500 A AC for 5 minutes.
• 10:1 CT Ratio: Allows standard clamp meters to measure high primary currents accurately.
• Wide Frequency Response: Ensures accurate measurements from 20 Hz to 5 kHz.
• Excellent Phase Accuracy: Maintains phase accuracy of ±1.0°, crucial for precise power measurements.
• Large Jaw Diameter: Accommodates conductors with core diameters of 55 mm or 80 mm.
• Robust Construction: Designed to withstand demanding industrial environments.
• Extended Cable Length: Comes with a 3-meter cable for flexible usage.
• Compatibility: Works seamlessly with Hioki clamp meters, enhancing their measurement range.
• Safety Compliance: Rated for use with insulated wires up to 600 V AC rms.
• Compact Design: Lightweight and portable for easy handling and storage.

Includes

Instruction manual ×1

Mark band ×6
