Hioki PW3360 Clamp On Power Logger
The PW3360 is a compact clamp-on power logger designed for measuring and logging power parameters on single- to three-phase electrical systems. It supports a wide voltage and current range, offers safe clamp sensor inputs, provides ease-of-use setup, and stores data over long periods for energy audits and demand-analysis tasks.
Description
The PW3360 is a multi-channel energy logger built for reliable power measurement and analysis. It works on single-phase (2-wire or 3-wire) and three-phase (3-wire or 4-wire) circuits, accepting voltage in a range from about 90 V to 780 V, and using clamp sensors for current inputs that can measure from small currents up to several kiloamperes. It can track a broad set of measurements including RMS and fundamental values of voltage and current, peak values, power (active, reactive, apparent), energy usage (both consumption and regeneration), power factor, demand (active and reactive), waveform peaks, and frequency. Optional versions support harmonic analysis up to the 40th order. Data logging is supported via internal memory or SD/SDHC cards, with selectable save intervals. The display offers graphical trend/demand graphs and allows the user to inspect maximum, minimum, and average values. Setup is made easier via on-screen guidance, wiring check functions to help prevent mis-wiring, and safety features. The unit is portable, with a slim form factor, relatively light weight, and can be powered via mains adapter or optional battery, enabling use in field installations or tight panels.
Features
- Supports single-phase 2-wire & 3-wire, and three-phase 3-wire & 4-wire circuits.
- Voltage measurement range of approximately 90 V to 780 V AC.

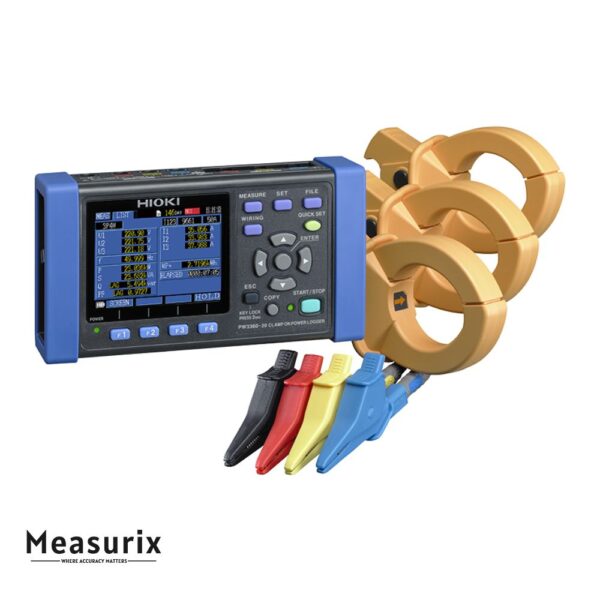

- Current measurement via clamp sensors, from small fractions of an amp up to several thousand amps, depending on sensor used.
- Measures a wide variety of power parameters: active, reactive, apparent power; energy (consumed and regenerated); power factor; frequency; peaks; waveform fundamentals.
- Optional harmonic analysis (up to the 40th order) in versions that include that feature.

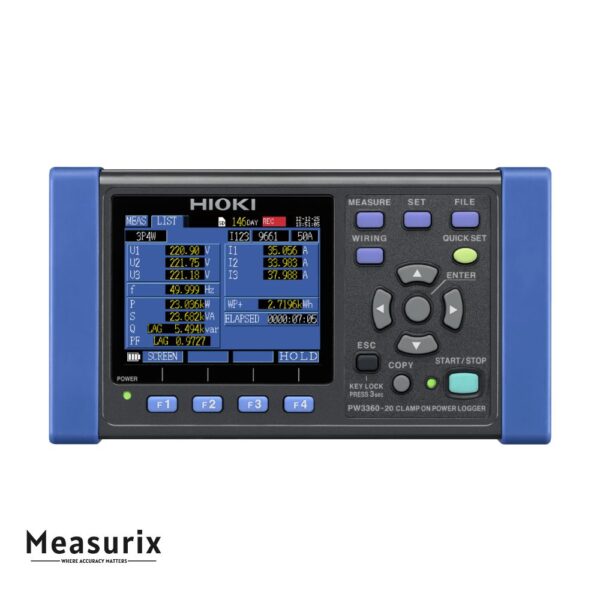

- Graphical display of demand and trend data, with ability to view max/min/average values via cursor.
- Data storage via SD/SDHC card or internal memory, with configurable logging intervals.

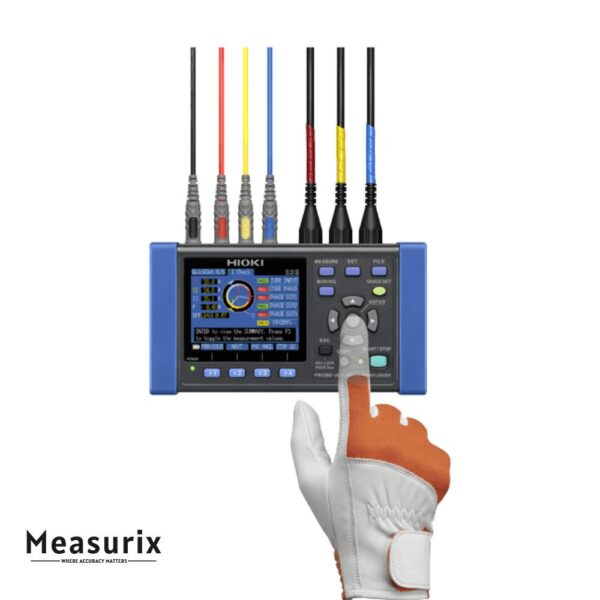

- Quick setup guidance and wiring check to reduce setup errors.
- Portable and compact design, light in weight, suitable for field or panel-box use; optional battery operation.
- Multiple interfaces for data retrieval (USB, LAN, etc.) and compatibility with software for data analysis and report generation.
Includes
- Voltage cord L9438-53 ×1 set
- AC adapter Z1006 ×1, USB cable ×1
- Instruction manual ×1
- Measurement guide ×1
- Color clip ×1 set: red, yellow, blue, white/two each, for color-coding clamp sensors
- Spiral tubes for grouping clamp sensor cords ×5
- Application Software CD (SF4000 GENNECT One) ×1
