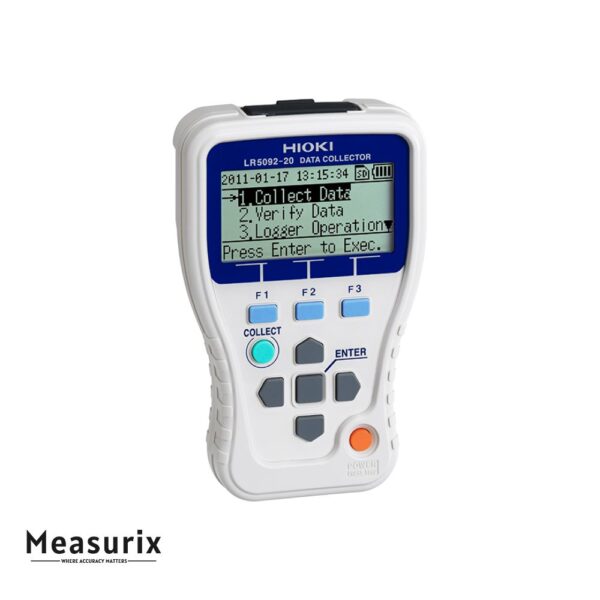

Hioki LR5092 Data Collector

The Hioki LR5092 is a compact and user-friendly data collector tailored for the LR5000 series data loggers. It enables wireless data retrieval through infrared communication, eliminating the need for physical connections between the data logger and the collector. Once data is collected, it can be stored in the LR5092’s internal memory or on an SD card (LR5092-20 model), providing flexibility in data storage options. For data analysis and reporting, the LR5092 supports data upload to a PC via USB or SD card, facilitating the use of Hioki’s LR5000 Utility software. This software allows users to graph data, perform statistical calculations, and generate reports, enhancing data analysis capabilities. The LR5092 is powered by two AA alkaline batteries, offering approximately 12 hours of operation or up to 500 data collection sessions, making it suitable for fieldwork and remote monitoring applications.

Features

• Wireless Data Retrieval: Collects data from LR5000 series data loggers via infrared communication.
• Flexible Data Storage: Stores data in internal memory or on an SD card (LR5092-20 model).
• Seamless Data Transfer: Uploads data to a PC using USB or SD card for further analysis.
• Comprehensive Data Analysis: Utilizes LR5000 Utility software for graphing, statistical calculations, and report generation.
• Extended Battery Life: Operates for approximately 12 hours or up to 500 data collection sessions on two AA alkaline batteries.
• Compact and Portable: Lightweight design (215g) for easy handling and field use.
• User-Friendly Interface: Equipped with a clear display and intuitive controls for straightforward operation.
• Compatibility: Designed specifically for Hioki LR5000 series data loggers, ensuring optimal performance and integration.

Includes

• Instruction manual ×1
• Operation guide ×1
• LR6 (AA) Alkaline battery ×2
• USB cable (1 m) ×1
• CD (Application software “LR5000 Utility”) × 1
