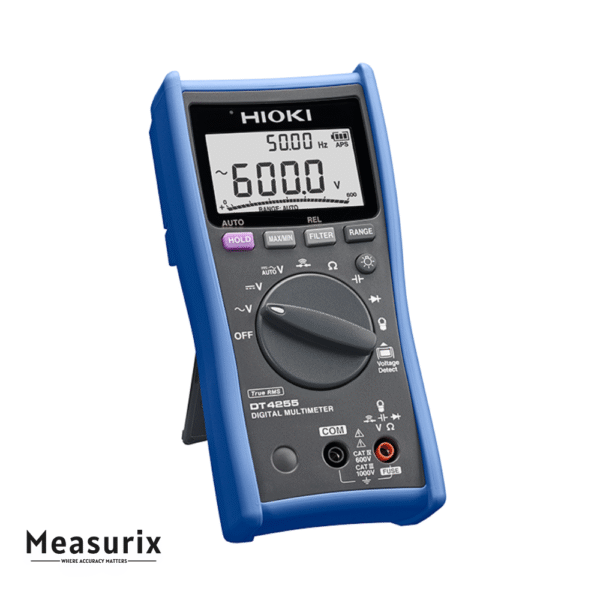

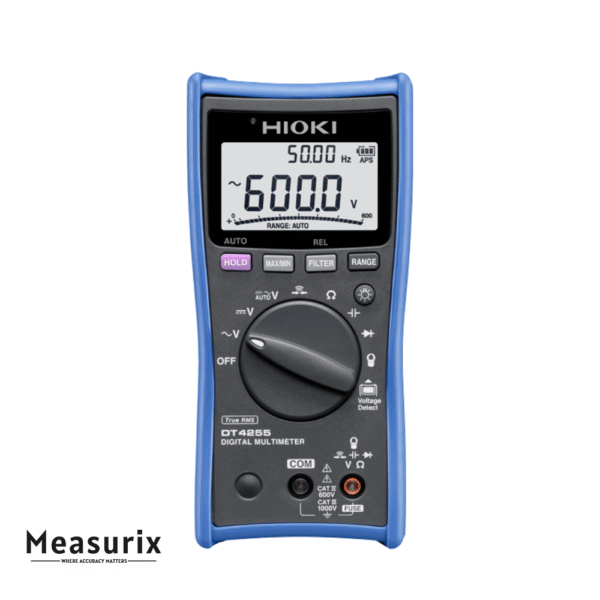

Hioki DT4255 Digital Multimeter
The Hioki DT4255 is a True RMS digital multimeter engineered for safety and precision in demanding environments. It offers a wide measurement range, including AC/DC voltage up to 1000 V, and supports current measurements via compatible clamp sensors. Designed with fuse-protected terminals and a low-pass filter, it ensures accurate readings even in the presence of harmonic distortion. Its robust construction and user-friendly features make it suitable for professionals requiring reliable performance in the field.
Description
The Hioki DT4255 is a versatile digital multimeter that combines safety, accuracy, and durability. It features a True RMS measurement capability, ensuring precise readings of both sinusoidal and non-sinusoidal waveforms. The device covers a broad frequency range, from 40 Hz to 1 kHz for AC voltage measurements, making it suitable for various applications, including testing electrical wiring and equipment.
One of the standout features of the DT4255 is its fuse-protected voltage measurement terminals, which significantly reduce the risk of short-circuit accidents—a critical consideration for professionals working in high-voltage environments. The inclusion of a low-pass filter (selectable at 100 Hz or 500 Hz) allows users to isolate the fundamental frequency when measuring inverter outputs or other sources with harmonic components.
The multimeter’s dual display enables simultaneous viewing of primary and secondary measurements, enhancing efficiency during testing. Additionally, it offers a broad operating temperature range of -25°C to 65°C, ensuring reliable performance in various environmental conditions.
For data management, the DT4255 supports USB communication (optional), allowing users to transfer measurement data to a PC for further analysis or record-keeping. This feature is particularly beneficial for documentation and reporting purposes.
Features
- True RMS Measurement: Ensures accurate readings of both AC and DC signals, including non-sinusoidal waveforms.
- Wide AC Voltage Frequency Range: Measures AC voltage from 40 Hz to 1 kHz, suitable for a variety of applications.
- Fuse-Protected Terminals: Reduces the risk of short-circuit accidents, enhancing user safety.
- Low-Pass Filter Function: Selectable at 100 Hz or 500 Hz to isolate the fundamental frequency in the presence of harmonics.
- Dual Display: Allows simultaneous viewing of primary and secondary measurements for increased efficiency.
- Broad Operating Temperature Range: Operates reliably from -25°C to 65°C, accommodating various environmental conditions.
- USB Communication Support: Optional feature for transferring measurement data to a PC for analysis and documentation.
- Comprehensive Measurement Functions: Includes AC/DC voltage, AC current (via clamp sensor), resistance, capacitance, frequency, continuity, and diode testing.
- User-Friendly Interface: Features a clear LCD display with bar graph, auto-hold, and relative value display functions.
- Compact and Durable Design: Lightweight and built to withstand the rigors of fieldwork.
Includes
- Test lead L9207-10* ×1
- Holster ×1
- Instruction manual ×1
- LR03 alkaline battery ×4
* Replaced by the probe L9300 starting with batches manufactured in March, 2025.
