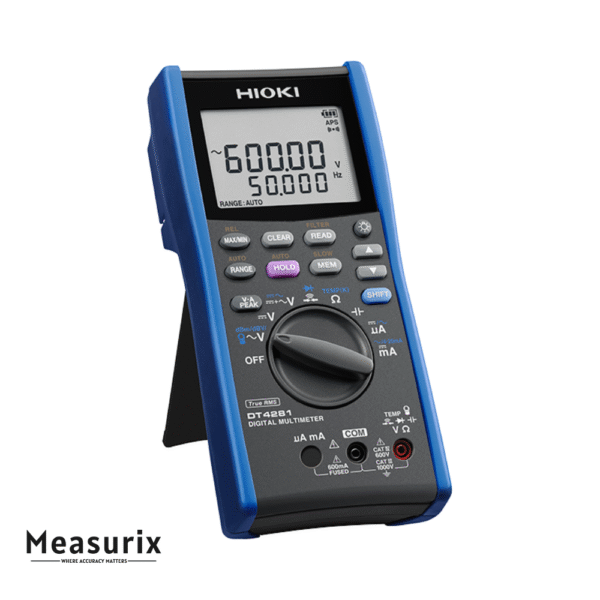

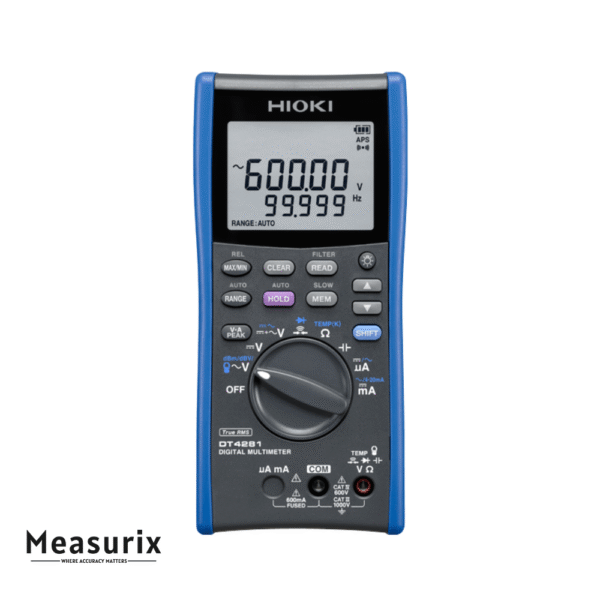

Hioki DT4261 Digital Multimeter
The Hioki DT4261 is a robust True RMS digital multimeter designed for professional use. It provides accurate measurements of AC/DC voltage, current, resistance, capacitance, frequency, and more, over wide ranges. It also includes safety and convenience features such as wireless communication, terminal shutters, and drop resistance, making it suitable for demanding field and industrial environments.
Description
The DT4261 is built to handle a variety of electrical measurement tasks with precision and durability. It supports DC voltage measurements from millivolts up to 1000 V, and AC voltage measurements across a similarly wide range, with True RMS functionality to account for non-ideal waveforms and distortion. Current measurements include both DC and AC, and there is an option to use clamp-on probes to measure larger AC currents. It also measures resistance (from small ohms to tens of megohms), capacitance (from microfarads to millifarads), frequency, continuity, and diode tests, among other functions.
On the design and safety side, the DT4261 has protections like terminal shutters that prevent leads being inserted into the wrong ports, a fuse check function, and warnings (visual) for excessive input. It is drop-resistant (able to tolerate a fall from about 1 meter) and operates over a wide temperature range (from about -25 °C up to +65 °C). The meter also supports wireless data transfer (with an adapter), and even can send measured values directly into spreadsheet templates. It runs on AA batteries and provides good operating time; it weighs roughly half a kilogram including batteries and leads.
Features
- Wide AC/DC voltage measurement range: from low millivolts up to 1000 V.
- True RMS for both voltage and current, handling distortion or non-sine waveforms.
- AC and DC current measurements, plus optional clamp-on probes for high current ranges.
- Measures resistance, capacitance, frequency, continuity and diode, with fast response.
- Safety features: terminal shutters, fuse check, visual warning backlight for over-input.
- Durable design: drop resistance (≈ 1 m), wide operational temperature range.
- Wireless communication via optional adapter, plus ability to interface with PC or mobile tools.
- Excel-direct input functionality: measured values can be transferred directly into spreadsheet templates.
- Intelligent display: dual or sub-display, bar graph, backlight, display hold etc.
- Long battery life using standard AA batteries, size and weight balanced for field portability.
Includes
- Test Lead L9207-10(*2) × 1
- Instruction Manual × 1
- LR6 Alkaline Battery × 4
