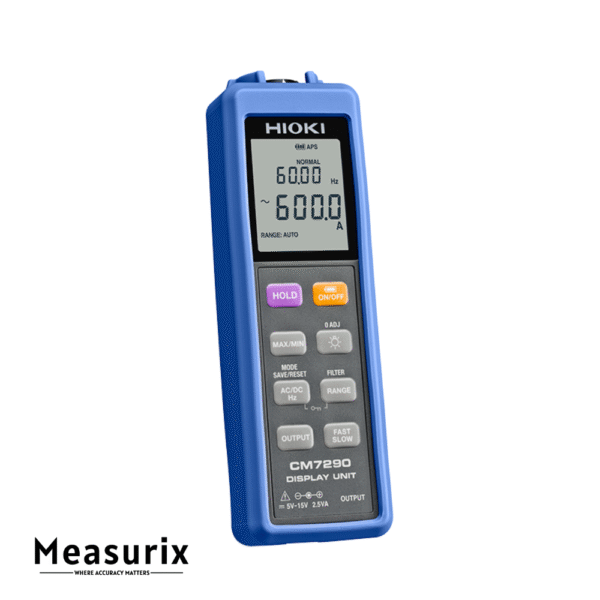

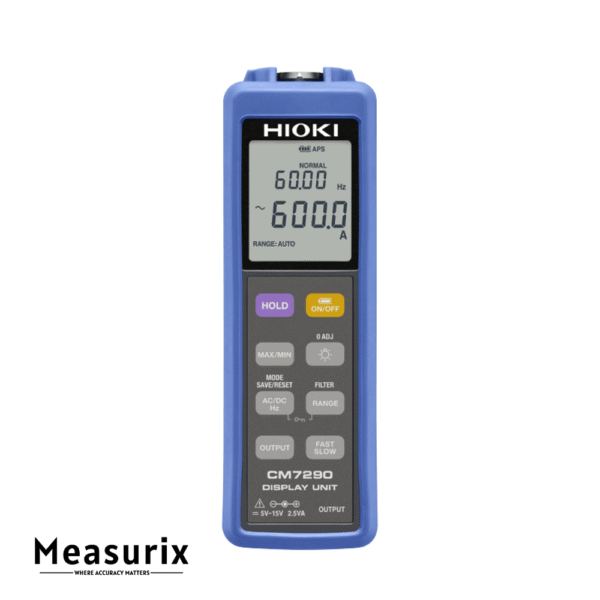

Hioki CM7290 Display Unit
The Hioki CM7290 is a versatile display and output unit designed to work with Hioki’s CT7000 series AC/DC current sensors. It enables real-time measurement visualization and facilitates data output to memory recorders or loggers, making it ideal for field applications requiring precise current analysis.
Description
The Hioki CM7290 serves as a crucial interface between Hioki’s CT7000 series current sensors and external data logging equipment. By connecting a compatible current sensor to the CM7290, users can view real-time current measurements directly on the unit’s display, eliminating the need for a separate multimeter. This setup is particularly beneficial in industrial environments where monitoring high currents is essential.
Beyond its display capabilities, the CM7290 offers multiple output formats, including waveform (WAVE), RMS, peak (PEAK), and frequency (FREQ) modes. These outputs can be sent to Hioki’s memory recorders or other compatible devices, allowing for detailed analysis and long-term data recording. The unit supports various power options, including AA alkaline batteries, an AC adapter, or an external power supply, ensuring flexibility in different operational settings.
Designed with user convenience in mind, the CM7290 features a dual display that simultaneously shows measured values and output rates. Its compact and durable design makes it suitable for field use, even in challenging conditions. However, it’s important to note that the CM7290 cannot function independently; it requires connection to a CT7000 series current sensor to operate effectively.
Features
- Real-Time Display: Provides immediate visualization of current measurements when connected to compatible sensors.
- Multiple Output Formats: Supports WAVE, RMS, PEAK, and FREQ modes for diverse data analysis needs.
- Dual Display: Simultaneously shows measured values and output rates for comprehensive monitoring.
- Flexible Power Options: Operates on AA alkaline batteries, AC adapter, or external power supply.
- Compact Design: Lightweight and portable, ideal for field applications.
- High Accuracy: Ensures precise measurements with guaranteed accuracy.
- Wide Temperature Range: Operates effectively in temperatures from -25°C to 65°C.
- IP54 Rating: Offers protection against dust and water, suitable for industrial environments.
- Automatic Sensor Recognition: Detects connected sensors and adjusts settings accordingly.
- Long Battery Life: Provides extended operational time, reducing the need for frequent battery replacements.
Includes
- LR6 alkaline batteries ×2
- Protector ×1
- Instruction manual ×1
