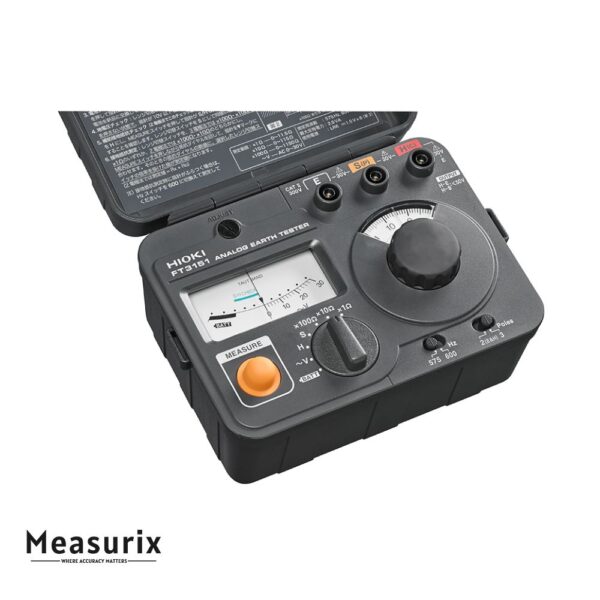

Hioki FT3151 Analog Earth Tester
The FT3151 is an analog earth (ground) resistance tester that supports both two-pole and three-pole measurement methods. It covers a wide resistance range (0 to 1150 Ω), offers selectable measurement frequencies to reduce interference, and includes built-in lead winders for easier setup and pack-up.
Description
The FT3151 is designed to reliably measure grounding resistance in varied field environments. You can switch between the three-electrode (precise) and two-electrode (simple) methods depending on site requirements. It uses an AC potentiometer system, operating at either 575 Hz or 600 Hz, which helps mitigate distortion from power supply harmonics. The tester handles resistance measurements up to 1150 Ω via three ranges (10 Ω, 100 Ω, 1000 Ω). It also measures earth potential (voltage between the test electrode and earth) up to 30 V. The unit is powered by six AA batteries and is built with ergonomic lead winders to simplify cable handling. Overvoltage protection, auxiliary electrode checks, and a clear analog dial help maintain reliable readings under real‐world conditions.
Features
- Two selectable methods – switchable between three-pole (precise) and two-pole (simple) measurement modes.
- Wide resistance range – 0 to 11.5 Ω (×1), 0 to 115 Ω (×10), and 0 to 1150 Ω (×100).
- Dual measurement frequency – 575 Hz / 600 Hz to reduce error from harmonic ground voltages.
- Earth potential measurement – up to 30 V with ±3 % full-scale deviation.
- Overvoltage protection & alarms – warning buzzer triggers if input voltage exceeds safe levels (e.g. ≥ 85 V).
- Auxiliary earth resistance check – lets you verify the condition of the auxiliary electrodes before taking the main measurement.
- Cord winder system – built-in winders for measurement cables to make setup and teardown faster and neater.
- Power source – runs on six AA batteries, supporting about 1,100 measurement cycles (30 s measure / 30 s wait) in three-pole mode.
- Robust build – weighs ~760 g and dimensions ~164 × 119 × 88 mm.
- Standards compliance & safety – meets grounding resistance and safety standards, with 300 V CAT II rating for measurement to earth.

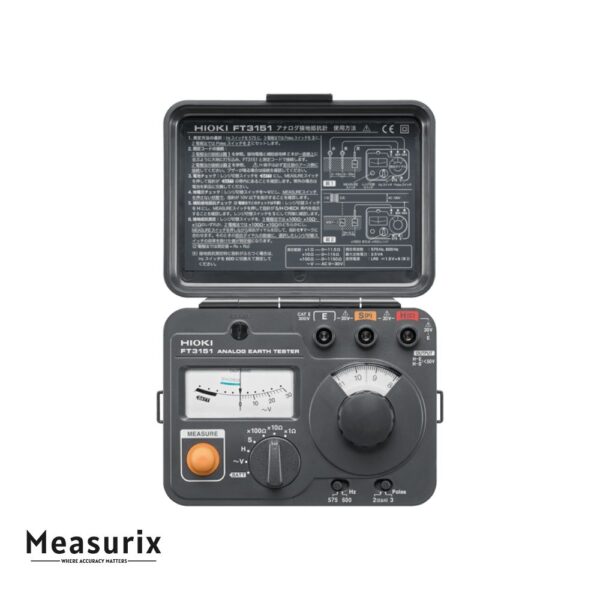

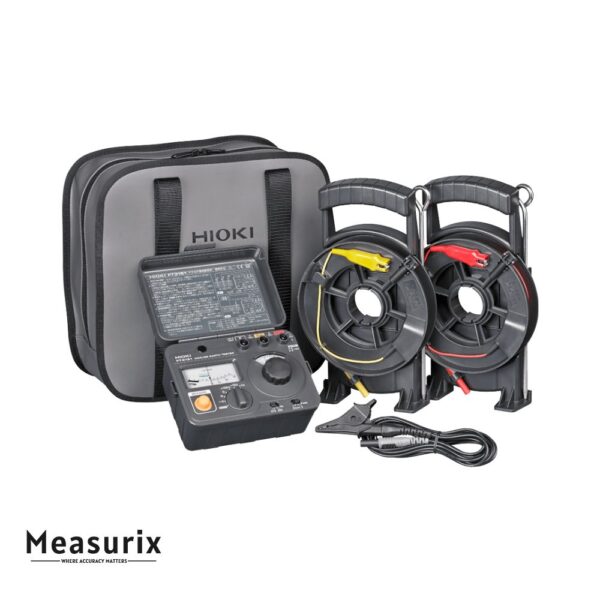

Includes
- Auxiliary Earthing Rod L9840 (2 piece set) ×1
- Measuring cable L9841 (alligator clip, black 4 m (13.12 ft))
- Measurement Cable L9842-11 (yellow 10 m (32.81 ft), equipped with winder)
- Measurement Cable L9842-22 (red 20 m (65.62 ft), equipped with winder) ×1
- LR6 (AA) Alkaline battery ×6
- Carrying Case C0106 ×1
- Instruction manual ×1
