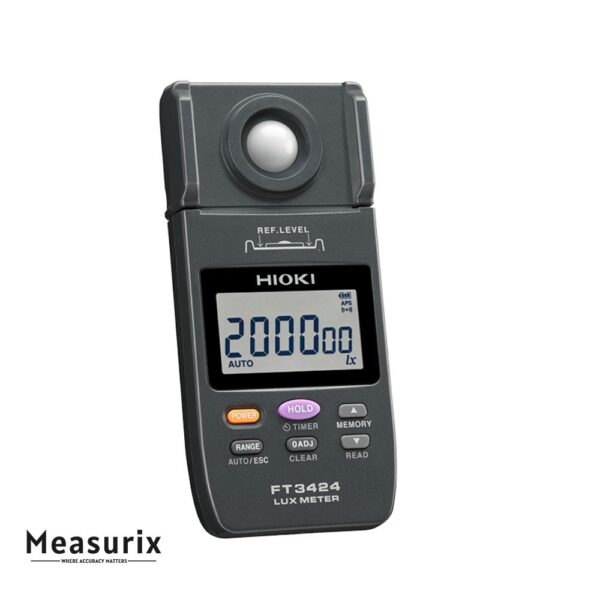

Hioki FT3424 Lux Meter
The Hioki FT3424 is a versatile light meter designed for a broad range of applications, including illumination equipment testing, lighting work, and facility management. It offers five measurement ranges from 20 lx to 200,000 lx, making it suitable for various luminance levels, including low-light environments. The device is compatible with LED lighting and complies with DIN 5032-7:1985 class B and JIS C 1609-1:2006 general AA class standards. Additionally, it features a timer hold function, allowing measurements in remote locations while avoiding the effects of shadows and reflections. The FT3424 can store up to 99 measured values in its internal memory and transfer them to a computer later for improved work efficiency.
Description

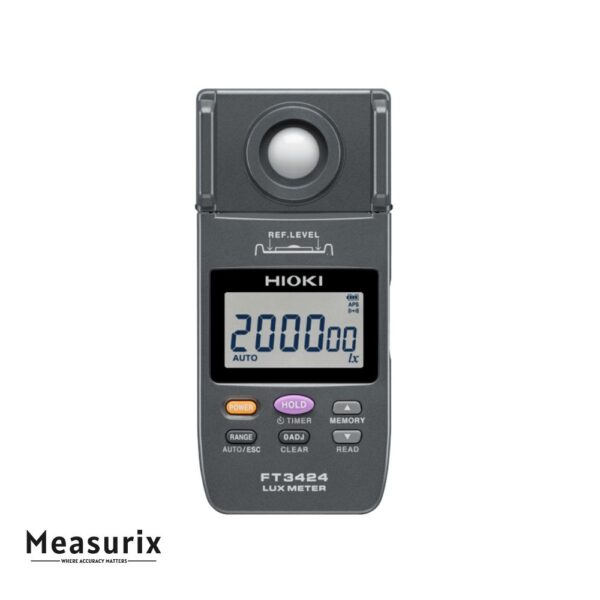

The Hioki FT3424 Lux Meter is engineered to provide accurate and reliable illuminance measurements across a wide range of lighting conditions. With its five selectable measurement ranges—20 lx, 200 lx, 2,000 lx, 20,000 lx, and 200,000 lx—it caters to both low and high illuminance scenarios. The device utilizes a silicon photodiode as the light-receiving element and features a large, easy-to-read LCD display with a backlight that activates automatically in low-illuminance environments.

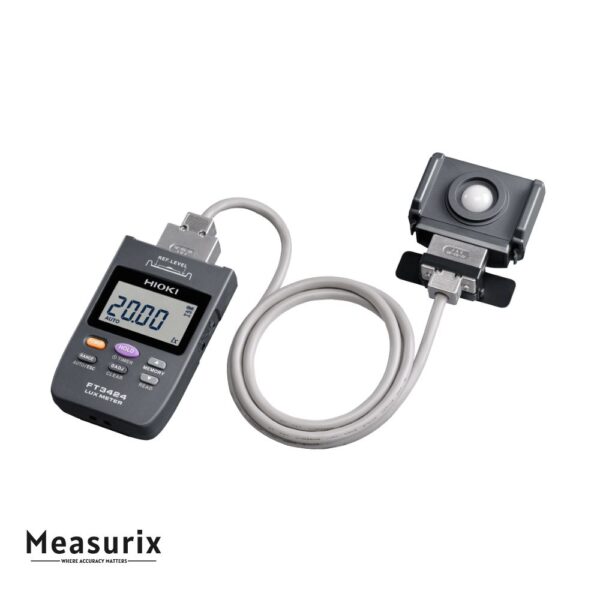

A standout feature of the FT3424 is its timer hold function, which allows users to make measurements in remote locations while minimizing the effects of shadows and reflections. Users can select timer settings ranging from 5 to 60 seconds, with the remaining time displayed on the screen. Once the set time has elapsed, the measured value is retained, and the backlight turns on if the illuminance is less than or equal to 10 lx.
The FT3424’s internal memory can store up to 99 measured values, facilitating multipoint measurements. These stored values can be transferred to a computer via a USB connection for further analysis and reporting. The device is compatible with Windows operating systems, including Windows 7, Vista (SP1 or later), and XP (SP2 or later).
Designed for durability, the FT3424 complies with DIN 5032-7:1985 class B and JIS C 1609-1:2006 general AA class standards, ensuring optimal reliability. Its compact and lightweight design, weighing approximately 310 g, makes it easy to handle and transport. The device is also dustproof and waterproof with an IP40 rating, suitable for indoor use in environments with pollution degree 2 and altitudes up to 2,000 meters.
Features
- Wide Measurement Range: Offers five measurement ranges: 20 lx, 200 lx, 2,000 lx, 20,000 lx, and 200,000 lx.
- High Accuracy: Provides precise illuminance measurements with a resolution of 0.01 lx.
- Timer Hold Function: Allows measurements in remote locations while minimizing the effects of shadows and reflections.
- Memory Storage: Stores up to 99 measured values for later analysis.
- USB Connectivity: Transfers stored data to a computer for further processing.
- LED Compatibility: Suitable for testing LED lighting systems.
- Standards Compliance: Complies with DIN 5032-7:1985 class B and JIS C 1609-1:2006 general AA class standards.
- Durable Design: Dustproof and waterproof with an IP40 rating.
- User-Friendly Interface: Large LCD display with automatic backlight in low-illuminance environments.
- Compact and Lightweight: Weighs approximately 310 g for easy handling and transport.
Includes
- Instruction Manual ×1
- LR6 Alkaline battery ×2
- Sensor cap (with strap) ×1
- Carrying case (soft) ×1
- Strap (for instrument) ×1
- USB cable (0.9 m/2.95 ft) ×1
- CD (USB driver, dedicated computer application software, and communications specifications) ×1
