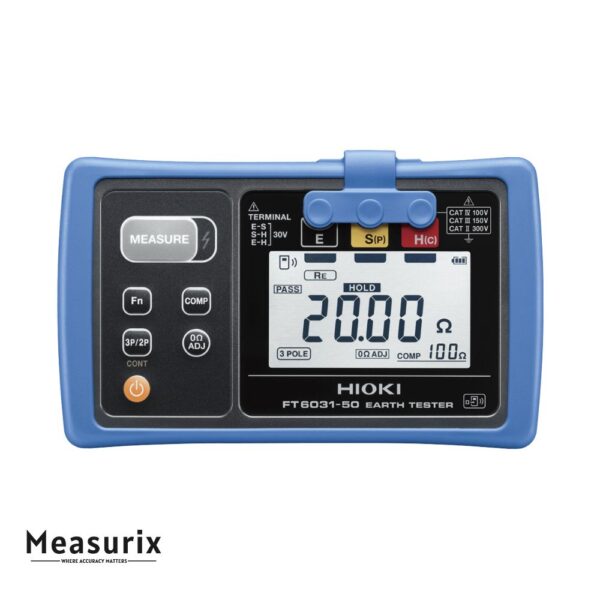

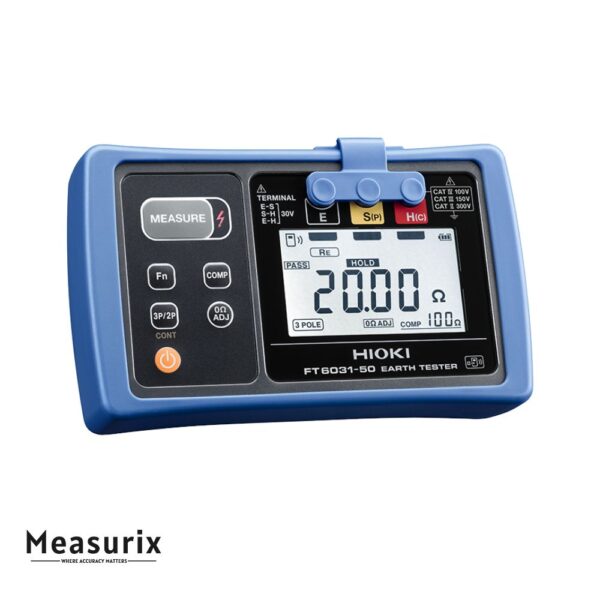

Hioki FT6031-50 Earth Tester

The FT6031-50 is built for field use where reliability and durability matter. It can measure earth resistance in a wide range (0 Ω up to 2,000 Ω) using either a two-electrode or three-electrode method. Before taking readings, it conducts automatic pre-checks: it verifies ground potential and checks auxiliary electrode connections, warning users of cable breaks or unsafe ground voltages.

Its design is robust: the housing is sealed for dust and water ingress (IP67), and it’s drop-resistant from 1 meter. It includes built-in cable winders for faster retraction of test leads, reducing post-measurement cleanup time. Measurement is simplified: press a single button and the unit auto-ranges internally—no manual range changes are needed.

The FT6031-50 can work with the optional wireless adapter so that measurements can be sent via Bluetooth to a mobile app, allowing report creation, field notes, and remote monitoring. Its operating voltage, safety ratings, and noise resistance are tuned to maintain stable operation even in environments with stray voltages or interference.

Features

• Switchable Measurement Methods – Supports both two-pole and three-pole earth resistance measurements, selectable via a button.
• Wide Measurement Range – 0 Ω to 2,000 Ω, with automatic range switching.
• Automatic Pre-Checks – Checks for ground potential (noise) and cable continuity before performing the earth resistance measurement.
• High Accuracy – ±1.5% of reading ±8 digits (lowest range) or ±1.5% ±4 digits (higher ranges).
• High Allowable Earth Voltage – Can tolerate earth potentials up to ~25 V RMS without corrupting measurement.
• Waterproof and Dustproof – IP67 rated, and can be rinsed off in field conditions.
• Drop Resistant – Built to withstand drops from 1 meter onto concrete (with protector attached).
• Cable Winders – Measurement leads feature built-in winder mechanisms for rapid, tangle-free retrieval.
• Wireless Capability (Optional) – With the Z3210 adapter installed, the unit can transfer readings via Bluetooth so users can compose reports and store data using a mobile device.
• Safety Ratings and Overload Protection – Measurement categories up to CAT IV 100 V, plus protections for transients and overloads on terminals.

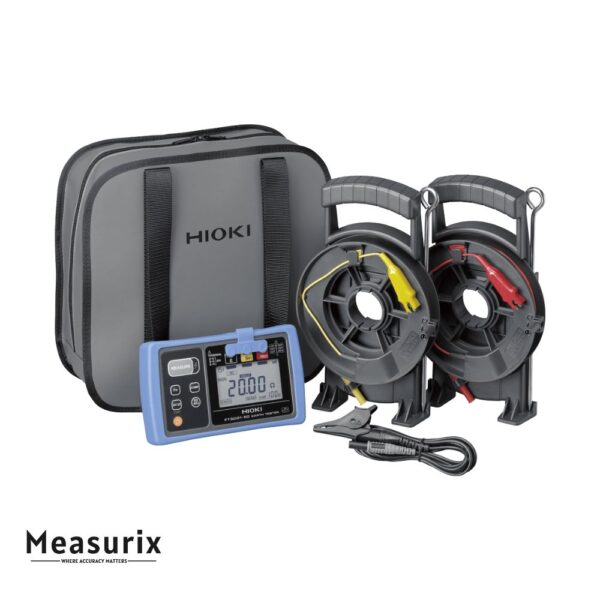

Includes

• Auxiliary Earthing Rod L9840 (2 piece set) ×1
• Measurement Cable L9841 (black 4 m) ×1
• Measurement Cable L9842-11 (yellow 10 m, equipped with winder) ×1
• Measurement Cable L9842-22 (red 20 m, equipped with winder) ×1
• Carrying Case C0106 ×1
• Protector ×1
• LR6 Alkaline battery ×4
• Instruction manual ×1
