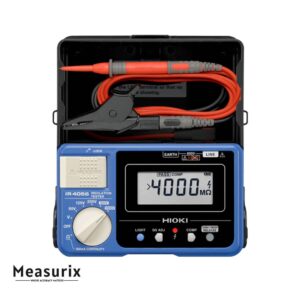

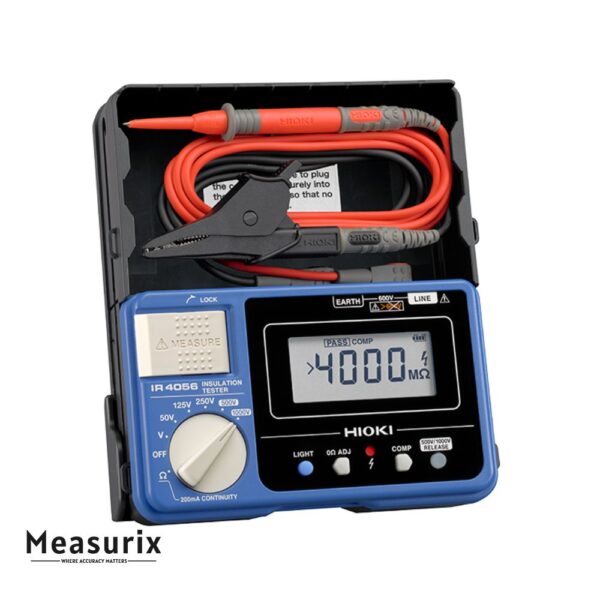

Hioki IR4056-20 Insulation Tester
The Hioki IR4056-20 is a handheld digital insulation resistance tester offering five selectable test voltages (50 V to 1000 V) with fairly fast PASS/FAIL decision signaling (~0.8 s). Designed for field use, it features ruggedness (drop-proof from 1 m), LED-lit LCD, continuity check, AC/DC voltage measurement, and comparator judgment functions to streamline inspections.
Description
The Hioki IR4056-20 is an economic‐class digital insulation resistance tester engineered for use in diverse electrical work environments. It supports five DC test voltages (50 V, 125 V, 250 V, 500 V, 1000 V), enabling measurement of insulation resistance from very low up to several GΩ. When deployed, the instrument delivers readings with a stable display and responds with a PASS/FAIL verdict in about 0.8 seconds, using visual and audible cues to assist quick decision-making. Its design includes rugged protection (able to survive a 1 m drop onto concrete), and a built-in LED backlight ensures readability in low-light conditions. Additional features include a 200 mA continuity check (for grounding or protective conductors), AC/DC voltage measurement capability (useful for solar or EV systems), and a comparator function to pre-set thresholds for fast verification. The tester also incorporates automatic discharge, live circuit detection, and a power-saving mode. Its physical dimensions are approximately 159 × 177 × 53 mm, with a weight around 600 g including batteries. It runs on four AA (LR6) batteries and supports category III 600 V safety ratings.
Features
- Five selectable DC test voltages (50 V, 125 V, 250 V, 500 V, 1000 V) with insulation resistance measurement up to approximately 4 GΩ.
- Quick PASS/FAIL indicator in about 0.8 seconds using LED display, audible alert, and comparator logic.
- Rugged construction designed to withstand a 1 meter drop onto concrete surfaces.
- Bright LED-backlit LCD and optional test lead lamp ensure clear visibility in dark or low-light conditions.
- 200 mA continuity check function for testing grounding and protective conductors.
- Built-in AC/DC voltage detection and measurement capability for circuit verification.
- Comparator function allows pre-set thresholds and automatic judgment without manual evaluation.
- Automatic discharge, live-circuit detection, and energy-saving operation for enhanced safety and efficiency.
- Compliance with safety category CAT III 600 V, providing reliable protection against electrical transients.
- Lightweight and portable design, weighing around 600 g including batteries, with a compact body for easy handling.
Includes
- [IR4056-20] Test lead L9787 ×1
- Neck strap ×1
- Instruction manual ×1
- LR6 (AA) alkaline batteries ×4
- [IR4056-21] Test lead set with remote switch L9788-11 ×1
- Neck strap ×1
- Instruction manual ×1
- LR6 (AA) alkaline batteries ×4
