Hioki LR8450-01 Memory HiLogger (Wireless LAN Model)

The Hioki LR8450-01 Memory HiLogger is engineered to capture a wide array of signals, including voltage, strain, temperature, humidity, resistance, and pulse, with exceptional accuracy and speed. Its 1 ms sampling rate ensures high-resolution data acquisition, crucial for analyzing dynamic systems where rapid changes occur.

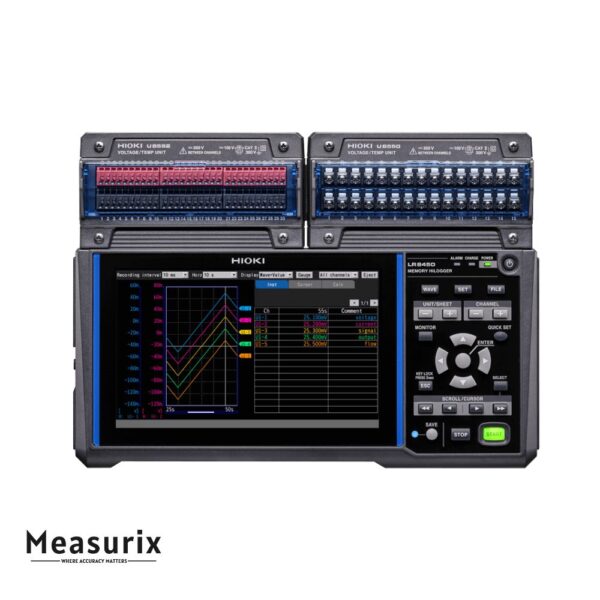

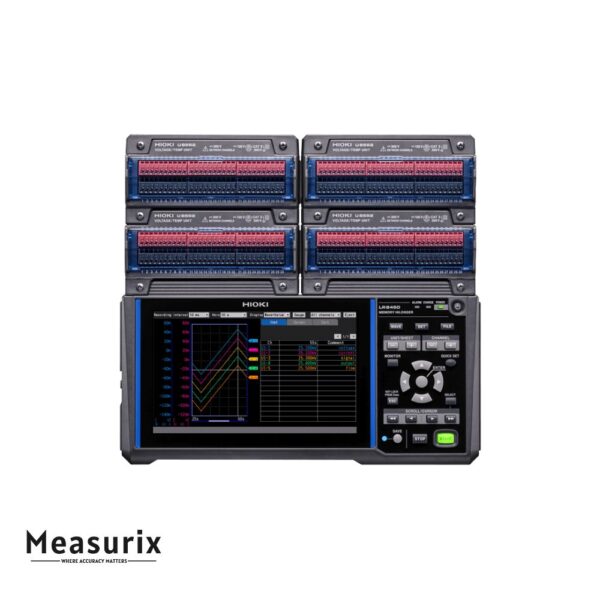

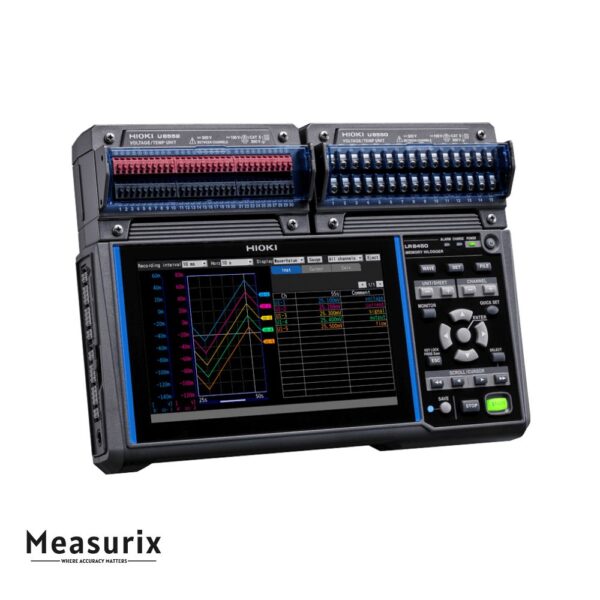

The LR8450-01 model accommodates up to 330 channels through a combination of wired plug-in modules and wireless LAN modules. This modular design allows users to tailor the system to their specific measurement needs, whether it’s monitoring multiple points in a single location or collecting data from dispersed sources.

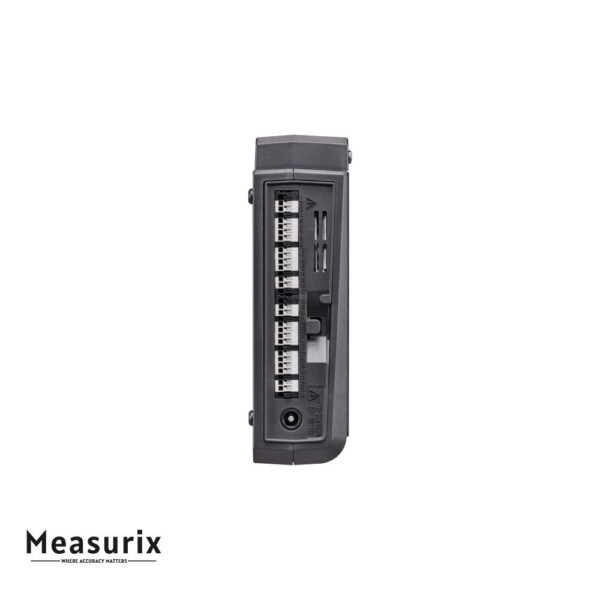

One of the standout features of the LR8450-01 is its ability to synchronize measurements across multiple units. When connected via external sync terminals, multiple LR8450 units can perform synchronized sampling, enabling comprehensive analysis of complex systems. This capability is particularly beneficial in applications such as automotive testing, where simultaneous measurement of various parameters is essential.

The device’s user-friendly interface, coupled with its robust data handling capabilities, makes it a versatile tool for engineers and researchers. Its compatibility with a range of input modules, including those for strain gauges and temperature sensors, further enhances its applicability across different fields.

Features

• High-Speed Sampling: Achieves up to 1 ms sampling rate for precise data acquisition.
• Expandable Channels: Supports up to 330 channels using a combination of wired plug-in modules and wireless LAN modules.
• Wireless Connectivity: LR8450-01 model includes wireless LAN functionality for flexible data collection.
• Synchronized Measurement: Multiple units can be synchronized for comprehensive system analysis.
• Versatile Input Modules: Compatible with various modules for voltage, strain, temperature, humidity, resistance, and pulse measurements.

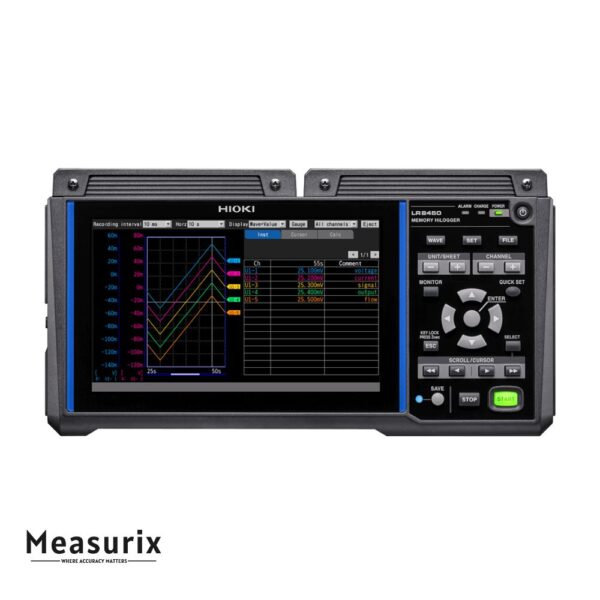

• User-Friendly Interface: Features a 7-inch TFT color LCD for easy operation and data visualization.
• Robust Data Handling: Capable of managing large datasets efficiently, suitable for complex testing scenarios.
• Portable Design: Compact and lightweight for convenient field use.
• Real-Time Monitoring: Allows for real-time data monitoring and analysis.
• Flexible Configuration: Offers a range of configuration options to meet specific measurement requirements.

Includes

• Quick Start Manual ×1
• LOGGER Application Disc (Quick Start Manual
• Instruction Manual, Logger Utility
• Logger Utility Instruction Manual
• CAN editor, CAN editor instruction manual
• Communication Instruction Manual) ×1
• USB Cable ×1, AC Adapter Z1014 ×1
• Precautions Concerning Use of Equipment that Emits Radio Waves ×1
