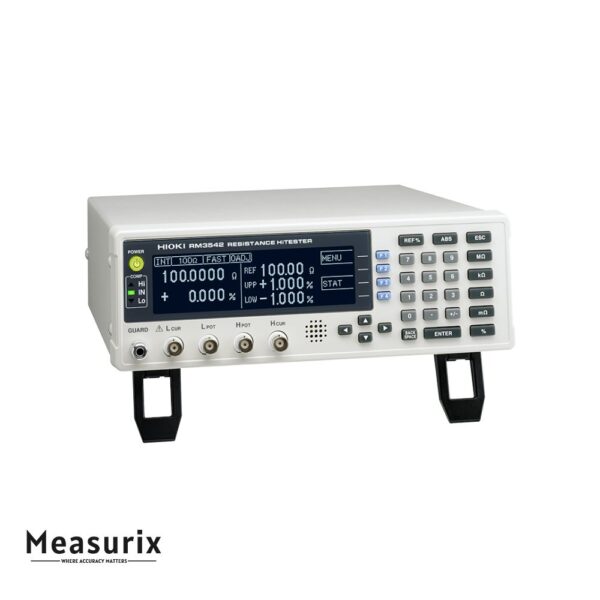

Hioki RM3542 Resistance HiTester
The Hioki RM3542 is a high-speed, high-precision resistance meter designed for low-resistance measurements in automated systems. It offers a wide resistance range from 100 mΩ to 100 MΩ and features multiple checking functions to ensure reliable measurements, making it ideal for applications such as shipping inspection of resistors and EMI components.
Description
The Hioki RM3542 Resistance HiTester is engineered to deliver ultra-fast and accurate resistance measurements, essential for high-throughput testing environments. Utilizing a four-terminal, constant-current DC measurement method, it ensures precise readings by minimizing the effects of lead and contact resistance. The device offers a broad resistance measurement range from 100 mΩ to 100 MΩ, with a resolution of up to 0.1 μΩ in the low-power mode, accommodating a wide variety of components.
Designed with automation in mind, the RM3542 features multiple checking functions, including contact check and probe short-circuit detection, to ensure proper contact and reliable measurements. The low-power resistance mode allows for the measurement of chip inductors and EMC suppression components, enhancing its versatility in different testing scenarios.
The RM3542 supports sample inspections during the manufacturing process, aiding in quality control and ensuring consistent product standards. Its high-speed measurement capability, with a minimum measurement time of 0.9 ms, maximizes productivity in automated systems. The device also offers integration time settings and delay functions to accommodate various testing requirements.

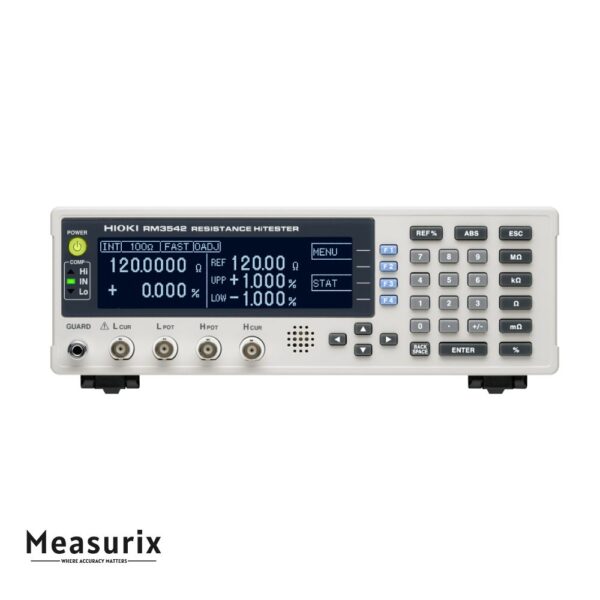

With a monochrome graphic LCD display and intuitive user interface, the RM3542 provides clear and easy-to-read measurement results. It includes interfaces such as RS-232C, printer, and GP-IB (model RM3542-01) for data export and remote control, facilitating seamless integration into automated testing setups.
Features
- Measurement Range: 100 mΩ to 100 MΩ
- Resolution: Up to 0.1 μΩ in low-power mode
- Measurement Method: Four-terminal, constant-current DC
- High-Speed Measurement: Minimum measurement time of 0.9 ms
- Multiple Checking Functions: Contact check, probe short-circuit detection
- Low-Power Resistance Mode: Suitable for measuring chip inductors and EMC suppression components
- Integration Time Settings: 0.1 ms to 100.0 ms

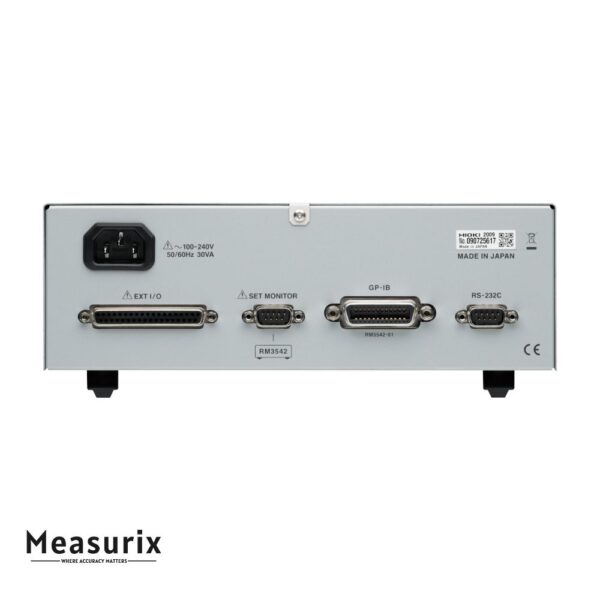

- Interfaces: RS-232C, printer, GP-IB (model RM3542-01)
- Display: Monochrome graphic LCD with white LED backlight
- Dimensions and Weight: Approx. 260W × 88H × 300D mm, 2.9 kg
Includes
- Power cord ×1
- EXT. I/O male connector ×1
- Instruction manual ×1
- Operation guide ×1
