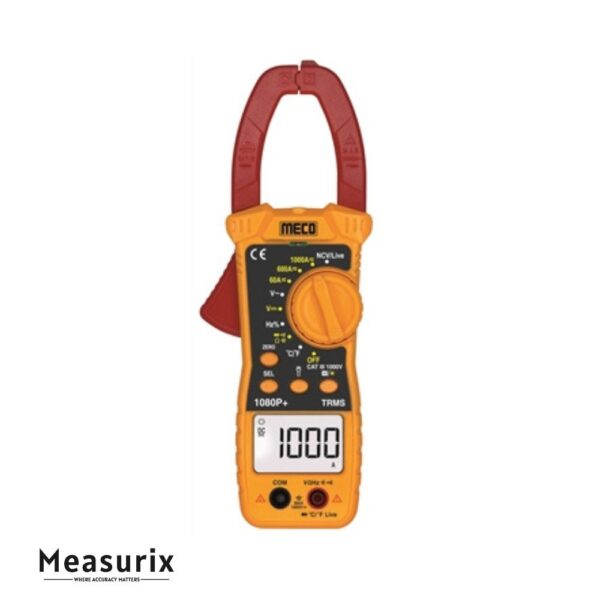

MECO 1080P+ TRMS Digital Clamp Meter
The MECO 1080P is a True RMS digital clamp meter capable of measuring AC/DC current up to 1000 A while providing voltage, resistance, frequency, capacitance, and temperature measurement functions. Its 6000-count display, advanced measurement capabilities, and rugged portable design make it an excellent tool for professional electrical testing and maintenance work.
Description
The MECO 1080P is a professional True RMS digital clamp meter designed for accurate measurement of both AC and DC current up to 1000 A. Built for demanding industrial, commercial, and maintenance applications, the instrument combines high-current measurement capability with a comprehensive set of electrical testing functions. Its large 6000-count display, auto-ranging operation, and ergonomic clamp design allow technicians to obtain reliable readings quickly and safely without interrupting electrical circuits.
In addition to current measurement, the 1080P offers voltage, resistance, capacitance, frequency, temperature, continuity, and diode testing functions, making it a versatile solution for troubleshooting and preventive maintenance. True RMS technology ensures accurate measurements on non-linear loads commonly found in modern electrical systems, including variable-speed drives, HVAC equipment, industrial machinery, and electronic power supplies. The robust construction and user-friendly interface make it suitable for field engineers, electricians, and maintenance professionals.
Features
• Measures AC and DC current up to 1000 A.
• True RMS technology for accurate measurement of distorted waveforms.
• 3⅚-digit, 6000-count LCD display.
• Auto-ranging operation for convenient measurements.
• AC and DC voltage measurement capability.
• Resistance measurement across multiple ranges.
• Capacitance testing function.
• Frequency and duty cycle measurement.
• Temperature measurement with probe input.
• Diode and continuity testing functions.
• Data Hold feature for capturing readings.
• MAX reading function for monitoring peak values.
• Backlit display for low-light environments.
• Low battery indication.
• Auto power-off feature to extend battery life.
• Non-contact current measurement using clamp jaw design.
• Suitable for industrial, commercial, and maintenance applications.
• Enhanced safety and overload protection features.
Includes
• MECO 1080P TRMS Digital Clamp Meter
• Test leads
• Temperature probe
• Batteries
• User instruction manual
• Protective carrying case
