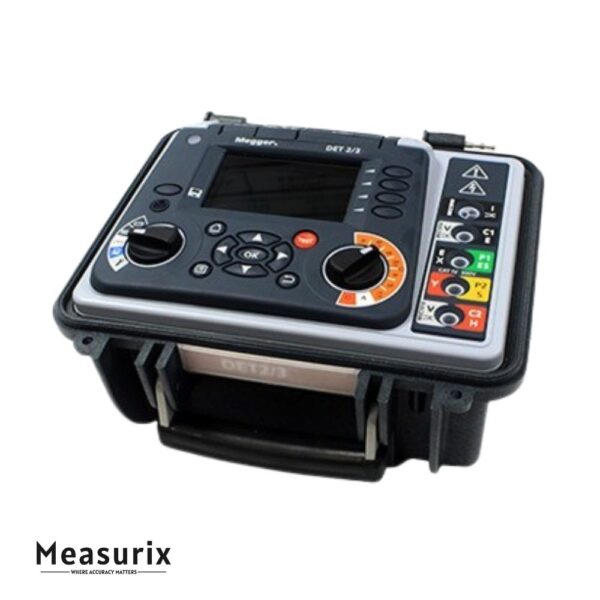

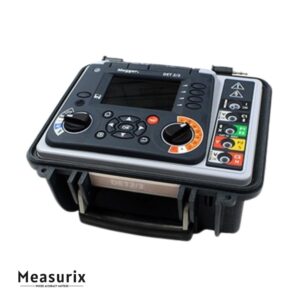

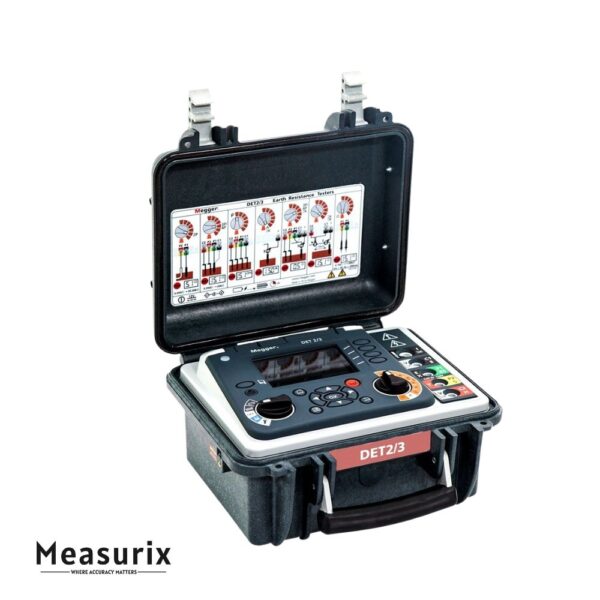

Megger DET2/3 High Resolution Earth Tester

The Megger DET2/3 is engineered for professional use in demanding earthing and grounding applications—such as communications earth systems, lightning protection networks, railway installations and large electrode grids. It delivers exceptional measurement precision with a resolution of 1 mΩ and an auto-ranging resistance measurement from 0.001 Ω up to 20.00 kΩ.
To ensure accuracy in noisy, complicated environments, the device includes variable test frequency (10 Hz to 200 Hz in steps of 0.5 Hz) allowing the operator to select the optimal test frequency and filtering to minimise interference.

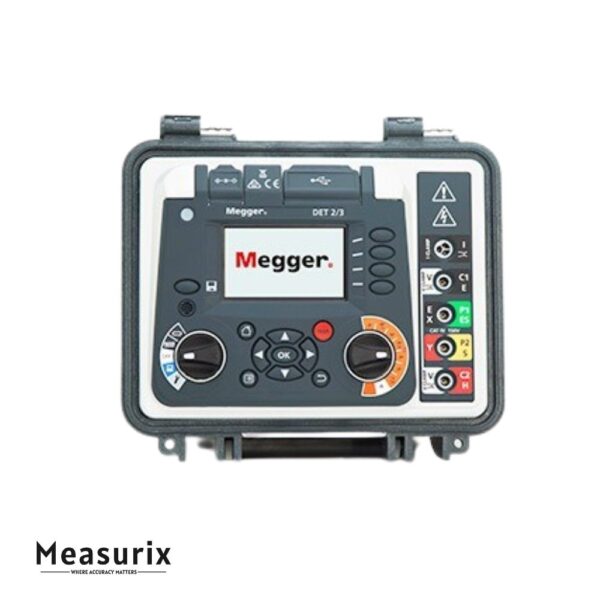

The instrument features a large colour display with graphical “live trace” of measurement noise and status, providing immediate insight into test conditions and enabling diagnostics.
Portability is addressed via internal rechargeable Li‑ion battery that can run a full day and fast‑charge (~3 hours to full), and the unit is sealed to IP54 when in use, and IP65 when closed, so it can stand up to harsh field conditions.
Data handling is built in: the tester can store up to hundreds of thousands of data points, and results can be downloaded via USB or flash‑drive to PC software for analysis and reporting.
It supports a full range of test modes: 2‑pole, 3‑pole and 4‑pole earth resistance; soil resistivity (Wenner/Schlumberger); stakeless (ART) testing; continuity and leakage current measurements.
In summary: the DET2/3 is a premium, all‑in‑one earth/ground tester for serious professionals who need high resolution, flexible test modes, data logging and field robustness.

Features

• High resolution of 1 mΩ — ideal for large or critical earth systems.

• Wide resistance measurement range: from ~0.001 Ω to 20 kΩ auto‑range.

• Multiple test methods: 2‑pole, 3‑pole, 4‑pole, stakeless (ART), soil resistivity (Wenner/Schlumberger).

• Variable test frequency (10–200 Hz in 0.5 Hz steps) with automatic frequency selection to avoid noise.

• Large colour display with live trace of noise and measurement data — graphical as well as numeric.

• Rugged field build: IP54 rating when open, IP65 when closed; tough case for outdoor use.

• Internal rechargeable Li‑ion battery with up to ~10 hours of use and fast re‑charge capability.

• Extensive data storage (hundreds of thousands of points) and USB/flash‑drive download for reporting.

Includes

Standard

• Megger DET2/3 Advanced Earth Tester
• Charger
• User guide
• Calibration verifier, instrument
• Pouch
• Carry strap

50m Kit

• Megger DET2/3 Advanced Earth Tester
• Charger
• MCC1010 current clamp
• MVC1010 voltage clamp
• User guide
• Calibration verifier, instrument
• Calibration verifier, clamps
• 2 x reel with 50m test cable
• 2 x reel with 30m test cable
• 4 x test spikes
• 2 x 1.4m connectors and clips
• Pouch
• Carry strap

100m Kit

• Megger DET2/3 Advanced Earth Tester
• Charger
• MCC1010 current clamp
• MVC1010 voltage clamp
• User guide
• Calibration verifier, instrument
• Calibration verifier, clamps
• 2 x reel with 100m test cable
• 2 x reel with 60m test cable
• 4 x test spikes
• 100m tape measure
• 2 x 1.4m connectors and clips
• Pouch
• Carry strap
